Bad Boy Tractors 3026 vs Mahindra 1533

Across 8 measurable specs, the Mahindra 1533 leads 8 categories to 0. Machine pages: Bad Boy Tractors 3026 and Mahindra 1533.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Mahindra1533

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A1100N2	Not Published
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Naturally aspirated, direct injection, common-rail diesel
No. of Cylinders	3	4
Displacement	71.7 in³	166.7 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	25 hp	34.5 hp
PTO Power	18 hp	25.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Direct injection, common rail (mCRD)
Alternator	50 A, 12 V	90 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	7.7 gpm
Steering Flow	3.1 gpm	3.4 gpm
Total Hydraulic Flow	7.4 gpm	11 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.7 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent (1533 Shuttle); Live (1533 HST)
PTO Rear	540 / 960 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	Category I	CAT I with telescopic stabilizers
Hitch Lift Capacity	1,433 lb	2,646 lb
Hitch Lift Capacity (at 24”)	974 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Constant-mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST)
No. of Speeds	3 range (L/M/H)	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Dry single disc
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Deluxe suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	63 in
Wheelbase	65.7 in	Not Published
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft
Height to Top of ROPS	91.4 in	90.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	127.8 in
▶Weight
Tractor Weight (Base)	2,106 lb	3,175 lb (1533 Shuttle); 3,164 lb (1533 HST)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Ag, Industrial, Turf
R1 Agricultural - Front	7-16 6PR	7x16
R1 Agricultural - Rear	11.2-20	11.2x24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	13.6x16
R4 Industrial - Front	25x8.50-14	27x8.5-15
R4 Industrial - Rear	14x17.5	15x19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	1538L
Loader Lift Height	86 in	1538L: 99 in
Loader Lift Capacity (Full Height)	1,314 lb	1538L: 1,650 lb
Loader Breakout Force	1,960 lbf	1538L: 2,650 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

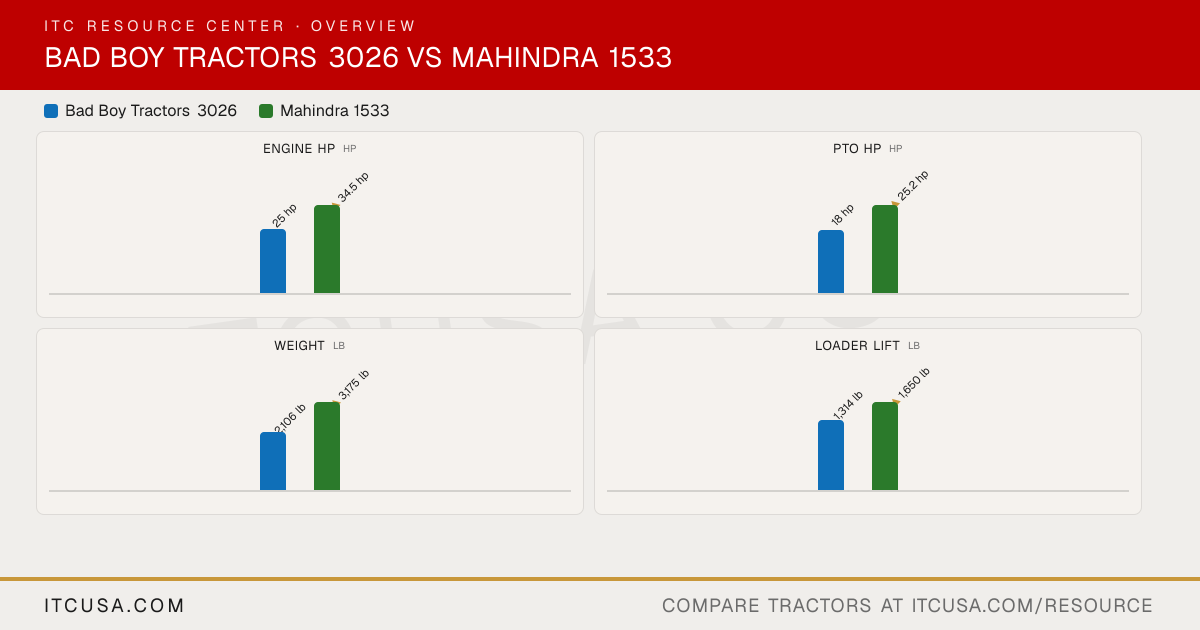

Bad Boy Tractors 3026 vs Mahindra 1533: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Mahindra 1533?

The Mahindra 1533 leads on engine hp at 34.5 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Mahindra 1533?

The Mahindra 1533 leads on pto hp at 25.2 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Mahindra 1533?

The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Mahindra 1533?

The Mahindra 1533 leads on loader lift at 1,650 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Mahindra 1533?

The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
