Across 7 measurable specs, the Mahindra 1538 leads 6 categories to 1. Machine pages: Mahindra 1538 and Massey Ferguson 1740E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 1538 | Massey Ferguson 1740E |
|---|
| Engine HP (hp) | ▲ 38.7 hp | 38.5 hp |
| PTO HP (hp) | 29.9 hp | ▲ 32.7 hp |
| Weight (lb) | 3,186 lb | n/a |
| Loader Lift (lb) | ▲ 1,650 lb | 1,450 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,646 lb | 1,598 lb |
| Lift Height (in) | ▲ 99 in | 94.3 in |
| Breakout Force (lbf) | ▲ 2,650 lbf | 2,288 lbf |
| Hydraulic Flow (gpm) | ▲ 11 gpm | 10.4 gpm |

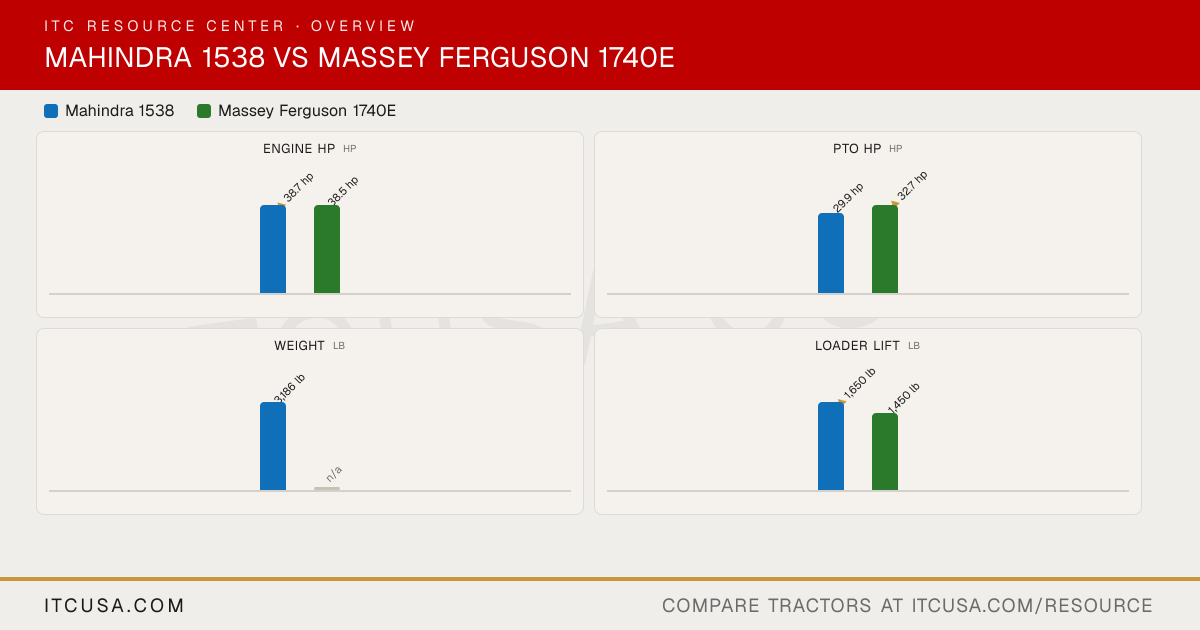

The headline numbers at a glance.
Mahindra 1538Massey Ferguson 1740E
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra1538 | Massey Ferguson1740E |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Shibaura |
|---|
| Engine Model | Not Published | Not Published |
|---|
| Engine Type | Naturally aspirated direct injection diesel (mCRD common rail) | 3-cylinder turbocharged diesel, liquid-cooled |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 166.7 in³ | 91.3 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2800 rpm |
|---|
| Engine Power (Gross) | 38.7 hp | 38.5 hp |
|---|
| PTO Power | 29.9 hp | 32.7 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dry |
|---|
| Fuel System | Direct injection, common rail (mCRD) | Not Published |
|---|
| Alternator | 90 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Dual engine-driven gear pumps |
|---|
| Implement Flow | 7.7 gpm | 7.5 gpm |
|---|
| Steering Flow | 3.4 gpm | Not Published |
|---|
| Total Hydraulic Flow | 11 gpm | 10.4 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Up to 2 |
|---|
| No. of Optional Remote Valves | 1 | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 7.7 gal | 10.6 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent (1538 Shuttle); Live (1538 HST); Live (1538 HST Cab) | 8x8 Synchro Shuttle: independent; HST: transmission driven |
|---|
| PTO Rear | 540 rpm @ 2376 rpm | 540 rpm (1-3/8 in 6-spline) |
|---|
| Mid-PTO Availability | Optional; 2000 rpm @ 2525 rpm | Not Published |
|---|
| Category, 3-Point Hitch | CAT I with telescopic stabilizers | Category I |
|---|
| Hitch Lift Capacity | 2646 lb | 2,205 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 1,598 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Constant mesh shuttle (1538 Shuttle); HST, 3 ranges (1538 HST); HST, 3 ranges (1538 HST Cab) | 8 x 8 synchro shuttle or 3-range hydrostatic |
|---|
| No. of Speeds | 8F/8R (1538 Shuttle); Infinite, 3 ranges (1538 HST); Infinite, 3 ranges (1538 HST Cab) | 8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry single disc | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Mechanical rear differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Deluxe suspension seat | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 127.8 in | 121.1 in |
|---|
| Overall Width | 62 in | 56.1-59.4 in |
|---|
| Wheelbase | Not Published | 65.9 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | 9.2 ft | Not Published |
|---|
| Height to Top of ROPS | 91.5 in | 93.9-94.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 89.4 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3186 lb (1538 Shuttle); 3175 lb (1538 HST); 3627 lb (1538 HST Cab) | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Ag, Industrial, Turf | R1 Agricultural, R4 Industrial |
|---|
| R1 Agricultural - Front | 7x16 | 7-16 |
|---|
| R1 Agricultural - Rear | 11.2x24 | 11.2-24 |
|---|
| R3 Turf - Front | 27x10.5-15 | Not Published |
|---|
| R3 Turf - Rear | 41x14-20 | Not Published |
|---|
| R4 Industrial - Front | 28x8.5-15 | 27x8.50-15 |
|---|
| R4 Industrial - Rear | 43x16-20 | 15-19.5 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | FLx2407: pin-on (skid steer quick attach optional) |
|---|
| Loader Model | 1538L | FLx2407 |
|---|
| Loader Lift Height | 1538L: 99 in | FLx2407: 94.3 in |
|---|
| Loader Lift Capacity (Full Height) | 1538L: 1,650 lb | FLx2407: 1,450 lb |
|---|
| Loader Breakout Force | 1538L: 2,650 lb | FLx2407: 2,288 lb |
|---|
|
|---|
| Warranty Length & Coverage | 5-year powertrain warranty | 5-year powertrain warranty |
|---|
Mahindra 1538 vs Massey Ferguson 1740E: Quick Answers
- Which has more horsepower, the Mahindra 1538 or the Massey Ferguson 1740E?
- The Mahindra 1538 leads on engine hp at 38.7 hp hp, compared to 38.5 hp hp for the Massey Ferguson 1740E.
- Which has more PTO horsepower, the Mahindra 1538 or the Massey Ferguson 1740E?
- The Massey Ferguson 1740E leads on pto hp at 32.7 hp hp, compared to 29.9 hp hp for the Mahindra 1538.
- Which has more loader lift capacity, the Mahindra 1538 or the Massey Ferguson 1740E?
- The Mahindra 1538 leads on loader lift at 1,650 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1740E.
- Which has more three-point hitch lift capacity, the Mahindra 1538 or the Massey Ferguson 1740E?
- The Mahindra 1538 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1740E.
