Across 8 measurable specs, the Mahindra 2538 leads 6 categories to 2. Machine pages: Mahindra 1635 Shuttle and Mahindra 2538.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 1635 Shuttle | Mahindra 2538 |
|---|
| Engine HP (hp) | 36.2 hp | ▲ 37.4 hp |
| PTO HP (hp) | 27.6 hp | ▲ 31 hp |
| Weight (lb) | 3,075 lb | ▲ 3,130 lb |
| Loader Lift (lb) | ▲ 1,830 lb | 1,634 lb |
| 3-Pt Lift (24 in) (lb) | 1,720 lb | ▲ 2,646 lb |
| Lift Height (in) | 92 in | ▲ 101.4 in |
| Breakout Force (lbf) | ▲ 2,777 lbf | 2,696 lbf |
| Hydraulic Flow (gpm) | 10.8 gpm | ▲ 11.7 gpm |
| Travel Speed (mph) | 12.2 mph | n/a |

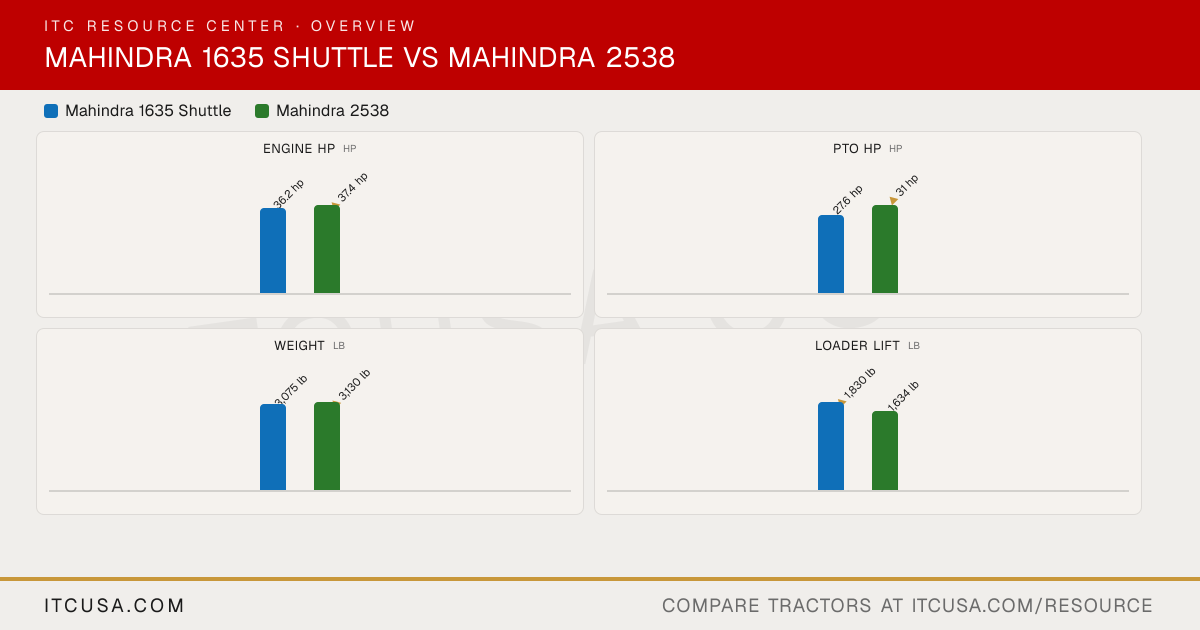

The headline numbers at a glance.
Mahindra 1635 ShuttleMahindra 2538
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra1635 Shuttle | Mahindra2538 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | CE-35 | Not Published |
|---|
| Engine Type | Four-stroke, naturally aspirated, direct injection, water cooled diesel | Four stroke, naturally aspirated, common rail, direct injection, water-cooled diesel |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 125.0 in³ | 167 in³ |
|---|
| Rated Engine Speed | 2500 rpm | 2400 rpm |
|---|
| Engine Power (Gross) | 36.2 hp | 37.4 hp |
|---|
| PTO Power | 27.6 hp | 31 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection | Common rail direct injection (mCRD) |
|---|
| Alternator | 90 A, 12 V | 45 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 7.5 gpm | 7.6 gpm |
|---|
| Steering Flow | 3.3 gpm | 4.1 gpm |
|---|
| Total Hydraulic Flow | 10.8 gpm | 11.7 gpm (7.6 + 4.1, computed) |
|---|
| Overall Hydraulic Pump Flow | 10.8 gpm | Not Published |
|---|
| Hydraulic System Type | Open Center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 1 | 1 or 2 |
|---|
|
|---|
| Fuel Tank Capacity | 7.7 gal | 9.0 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm @ 2376 rpm | 540 rpm @ 2400 rpm |
|---|
| Mid-PTO Availability | Optional; 2000 rpm @ 2526 rpm | Not Published |
|---|
| Category, 3-Point Hitch | CAT I with Telescoping Stabilizers & Flex Links | CAT I with check chains (2538 HST); CAT I with telescoping stabilizers and flex link ends (2538 HST Cab) |
|---|
| Hitch Lift Capacity | 2646 lb | 2646 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1720 lb | Not Published |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Constant mesh on gearshift and synchromesh on F-R shuttle | HST, 3 range |
|---|
| No. of Speeds | 8F / 8R | Infinite, 3 ranges |
|---|
| Max Travel Speed (Forward) | 12.2 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry-Single | Multiple wet disc |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic Power Steering | Hydrostatic power steering, tilt |
|---|
| Brakes | Wet Disc | Wet disc |
|---|
| Seat Suspension & Adjustability | mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt | Adjustable suspension seat |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 123.8 in | 119.3 in (2538 HST); 121.2 in (2538 HST Cab) |
|---|
| Overall Width | 64 in | 59.8 in |
|---|
| Wheelbase | 73 in | Not Published |
|---|
| Ground Clearance | 12.2 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 8.5 ft (with brake applied) | 7.87 ft |
|---|
| Height to Top of ROPS | 90.2 in | 94.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 92.5 in |
|---|
|
|---|
| Tractor Weight (Base) | 3,075 lb | 3130 lb (2538 HST); 3351 lb (2538 HST Cab) |
|---|
| Weight with ROPS and Loader | 3698 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agriculture, R3 Turf, R4 Industrial | Ag, Industrial |
|---|
| R1 Agricultural - Front | 7 x 16 | 7-16 |
|---|
| R1 Agricultural - Rear | 11.2 x 24 | 11.2-24 |
|---|
| R3 Turf - Front | 25 x 8.5-14 | Not Published |
|---|
| R3 Turf - Rear | 13.6 x 16 | Not Published |
|---|
| R4 Industrial - Front | 27 x 8.5-15 | 10-16.5 |
|---|
| R4 Industrial - Rear | 15 x 19.5 | 43x16-20 |
|---|
|
|---|
| Quick Attach Loader System | Front loader with skid-steer couplers for superfast hookups | Not Published |
|---|
| Loader Model | 1635L (64 in bucket) | 2538L |
|---|
| Loader Lift Height | 1635L: 92 in | 2538L: 101.4 in |
|---|
| Loader Lift Capacity (Full Height) | 1635L: 1,830 lb | 2538L: 1,634 lb |
|---|
| Loader Breakout Force | 1635L: 2,777 lb | 2538L: 2,696 lb |
|---|
|
|---|
| Warranty Length & Coverage | 7-year/3,000-hour, $0 deductible limited powertrain warranty | 5-year powertrain warranty |
|---|
Mahindra 1635 Shuttle vs Mahindra 2538: Quick Answers
- Which has more horsepower, the Mahindra 1635 Shuttle or the Mahindra 2538?
- The Mahindra 2538 leads on engine hp at 37.4 hp hp, compared to 36.2 hp hp for the Mahindra 1635 Shuttle.
- Which has more PTO horsepower, the Mahindra 1635 Shuttle or the Mahindra 2538?
- The Mahindra 2538 leads on pto hp at 31 hp hp, compared to 27.6 hp hp for the Mahindra 1635 Shuttle.
- Which is heavier, the Mahindra 1635 Shuttle or the Mahindra 2538?
- The Mahindra 2538 leads on weight at 3,130 lb lb, compared to 3,075 lb lb for the Mahindra 1635 Shuttle.
- Which has more loader lift capacity, the Mahindra 1635 Shuttle or the Mahindra 2538?
- The Mahindra 1635 Shuttle leads on loader lift at 1,830 lb lb, compared to 1,634 lb lb for the Mahindra 2538.
- Which has more three-point hitch lift capacity, the Mahindra 1635 Shuttle or the Mahindra 2538?
- The Mahindra 2538 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 1635 Shuttle.
