Which has more horsepower, the Bad Boy Tractors 4035 or the Mahindra 1635 Shuttle?

The Mahindra 1635 Shuttle leads on engine hp at 36.2 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Mahindra 1635 Shuttle?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 27.6 hp hp for the Mahindra 1635 Shuttle.

Which is heavier, the Bad Boy Tractors 4035 or the Mahindra 1635 Shuttle?

The Mahindra 1635 Shuttle leads on weight at 3,698 lb lb, compared to 3,496.5 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Mahindra 1635 Shuttle?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,830 lb lb for the Mahindra 1635 Shuttle.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Mahindra 1635 Shuttle?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,720 lb lb for the Mahindra 1635 Shuttle.

Bad Boy Tractors 4035 vs Mahindra 1635 Shuttle

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 and Mahindra 1635 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Mahindra 1635 Shuttle
Engine HP (hp)	34.9 hp	▲ 36.2 hp
PTO HP (hp)	▲ 30 hp	27.6 hp
Weight (lb)	3,496.5 lb	▲ 3,698 lb
Loader Lift (lb)	▲ 2,200 lb	1,830 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,720 lb
Lift Height (in)	▲ 104 in	92 in
Breakout Force (lbf)	▲ 3,660 lbf	2,777 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	10.8 gpm
Travel Speed (mph)	▲ 19.1 mph	12.2 mph

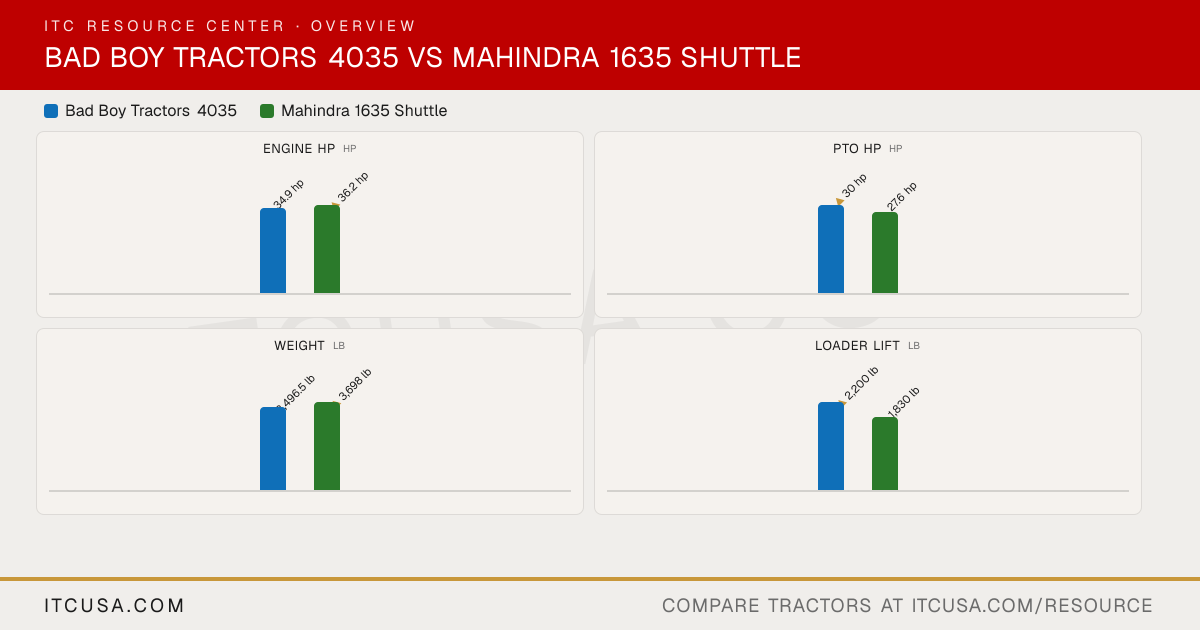

The headline numbers at a glance.

Bad Boy Tractors 4035Mahindra 1635 Shuttle

Engine HPhp

34.9 hp

▲36.2 hp

PTO HPhp

▲30 hp

27.6 hp

Weightlb

3,496.5 lb

▲3,698 lb

Loader Liftlb

▲2,200 lb

1,830 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Mahindra1635 Shuttle


PTO Power	30 hp	27.6 hp
Alternator	50 A, 12 V	90 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel
Fuel System	Diesel fuel	Direct Injection
Displacement	104.7 in³	125 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Water cooled	Water-cooled
Engine Manufacturer	A1700N4-BUTC_4	Mahindra
Engine Power (Gross)	34.9 hp	36.2 hp @ 500 rpm
Engine Emissions Constraints	EPA Final Tier4	DOC / No DPF

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	3698 lb
Weight with Cab and Loader	3,728 lbs	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	7-Year Limited Powertrain Warranty

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	3.3 gpm
Implement Flow	8.2 gpm	7.5 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	10.8 gpm
Hydraulic System Type	Open Center	Open Center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	10.8 gpm
No. of Optional Remote Valves	Optional (up to 2)	1
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm @ 2376 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position Control
Hitch Lift Capacity	3,306.9 lb	2646 lb
Mid-PTO Availability	Not Published	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	Cat 1	CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity (at 24”)	2,425 lb	1720 lb

R3 Turf - Rear	Not Published	13.6X16
R3 Turf - Front	Not Published	25X8.5-14
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	15X19.5
R4 Industrial - Front	28X8.50-15	27X8.5-15
R1 Agricultural - Rear	12.4-24 6PR	11.2X24
R1 Agricultural - Front	8.0-16 4PR	7X16

Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	7.7 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published

Loader Lift Height	104 in	92 in
Loader Breakout Force	3,660 lb	2777 lb
Quick Attach Loader System	SSQA	431.9 gal: Front loader with skid-steer couplers for superfast hookups.
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1830 lb

Clutch	None (HST)	Dry-Single
No. of Speeds	3 Range	8F / 8R
Transmission Type	HST (3-range)	Constant mesh on gearshift and synchromesh on F-R shuttle
Max Travel Speed (Forward)	19.08 mph (range C)	12.2 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet multi-disc	Wet Disc
Steering	Fully hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.7 in	73.0 in
Overall Width	56.7 in	64.0 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	12.2 in
Height to Top of ROPS	96.85 in	90.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	123.8 in
