Mahindra 2540 vs Mahindra 4025

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 4025 leads 7 categories to 1. Machine pages: Mahindra 2540 and Mahindra 4025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 2540	Mahindra 4025
Engine HP (hp)	40 hp	▲ 41 hp
PTO HP (hp)	▲ 35 hp	31 hp
Weight (lb)	3,285 lb	▲ 4,389 lb
Loader Lift (lb)	2,041 lb	▲ 2,866 lb
3-Pt Lift (24 in) (lb)	2,646 lb	▲ 3,527 lb
Lift Height (in)	101.9 in	▲ 116.6 in
Breakout Force (lbf)	3,430 lbf	▲ 4,978 lbf
Hydraulic Flow (gpm)	12.7 gpm	▲ 13.3 gpm
Travel Speed (mph)	n/a	14.3 mph

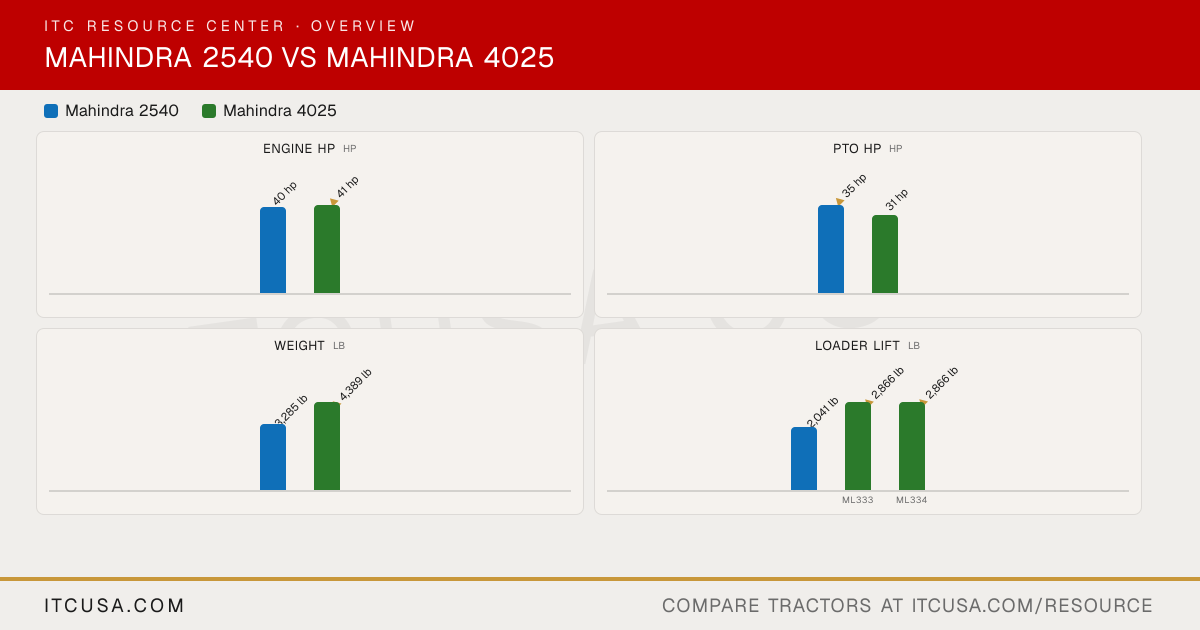

The headline numbers at a glance.

Mahindra 2540Mahindra 4025

Engine HPhp

40 hp

▲41 hp

PTO HPhp

▲35 hp

31 hp

Weightlb

3,285 lb

▲4,389 lb

Loader Liftlb

2,041 lb

▲2,866 lb

ML333ML334

3-Pt Lift (24 in)lb

2,646 lb

▲3,527 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra2540	Mahindra4025


Engine Manufacturer	Mahindra	Mahindra
Engine Model	Not Published	MDI 2700R2
Engine Type	Naturally aspirated direct injection diesel	Four stroke, direct injection, water-cooled diesel
No. of Cylinders	4	4
Displacement	166.7 in³	167 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	40 hp	41 hp
PTO Power	35 hp	31 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	36 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.29 gpm
Steering Flow	4.5 gpm	5 gpm
Total Hydraulic Flow	12.7 gpm (8.2 + 4.5, computed)	13.29 gpm (8.29 + 5, computed)
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	1

Fuel Tank Capacity	9.0 gal	14.55 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm @ 2650 rpm	540 rpm @ 2058 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I with check chains	CAT I and II adjustable, with telescopic stabilizers
Hitch Lift Capacity	2646 lb	3527 lb (4025 2WD); 3525 lb (4025 4WD)
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position control	Position and draft control

Transmission Type	Synchro shuttle with partial synchromesh	Sliding mesh
No. of Speeds	12F/12R	8F/2R
Max Travel Speed (Forward)	Not Published	14.3 mph (4025 2WD); 17.6 mph (4025 4WD)
Max Travel Speed (Reverse)	Not Published	6.0 mph (4025 2WD); 7.5 mph (4025 4WD)
Clutch	Single plate, dry	Dual (2-stage)
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering, tilt	Hydrostatic power steering
Brakes	Wet disc	Fully enclosed dry disc
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119.3 in	115.3 in (4025 2WD); 129 in (4025 4WD)
Overall Width	59.8 in	69.4 in (4025 2WD); 82 in (4025 4WD)
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	7.87 ft	9.6 ft (4025 2WD); 10.5 ft (4025 4WD)
Height to Top of ROPS	94.4 in	88.0 in (4025 2WD); 93.7 in (4025 4WD)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3285 lb	4389 lb (4025 2WD); 4950 lb (4025 4WD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial (turf N/A)	Ag (4025 2WD); Ag, Industrial (4025 4WD)
R1 Agricultural - Front	8.3x16	6x16 (4025 2WD); 9.5x16 (4025 4WD)
R1 Agricultural - Rear	12.4x24	12.4x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	10-16.5	12x16.5 (4025 4WD)
R4 Industrial - Rear	43x16-20	16.9x24 (4025 4WD)

Quick Attach Loader System	Not Published	Not Published
Loader Model	2540L	ML333 (4025 2WD); ML334 (4025 4WD)
Loader Lift Height	2540L: 101.9 in	ML333: 116.6 in; ML334: 116.6 in
Loader Lift Capacity (Full Height)	2540L: 2,041 lb	ML333: 2,866 lb; ML334: 2,866 lb
Loader Breakout Force	2540L: 3,430 lb	ML333: 4,978 lb; ML334: 4,978 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a Mahindra dealer near you

Mahindra 2540 vs Mahindra 4025: Quick Answers

Which has more horsepower, the Mahindra 2540 or the Mahindra 4025?: The Mahindra 4025 leads on engine hp at 41 hp hp, compared to 40 hp hp for the Mahindra 2540.
Which has more PTO horsepower, the Mahindra 2540 or the Mahindra 4025?: The Mahindra 2540 leads on pto hp at 35 hp hp, compared to 31 hp hp for the Mahindra 4025.
Which is heavier, the Mahindra 2540 or the Mahindra 4025?: The Mahindra 4025 leads on weight at 4,389 lb lb, compared to 3,285 lb lb for the Mahindra 2540.
Which has more loader lift capacity, the Mahindra 2540 or the Mahindra 4025?: The Mahindra 4025 leads on loader lift at 2,866 lb lb, compared to 2,041 lb lb for the Mahindra 2540.
Which has more three-point hitch lift capacity, the Mahindra 2540 or the Mahindra 4025?: The Mahindra 4025 leads on 3-pt lift (24 in) at 3,527 lb lb, compared to 2,646 lb lb for the Mahindra 2540.
