Bad Boy Tractors 4035 Cab vs Mahindra 2540

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4035 Cab, 4 to the Mahindra 2540. Machine pages: Bad Boy Tractors 4035 Cab and Mahindra 2540.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Mahindra2540

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	Naturally aspirated direct injection diesel
No. of Cylinders	3	4
Displacement	104.7 in³	166.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	35 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	4.5 gpm
Total Hydraulic Flow	12.6 gpm	12.7 gpm (8.2 + 4.5, computed)
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	9.0 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2650 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity	3,306.9 lb	2646 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Synchro shuttle with partial synchromesh
No. of Speeds	3 range (HST)	12F/12R
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Single plate, dry
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering, tilt
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	119.3 in
Overall Width	56.3 in	59.8 in
Wheelbase	65.7 in	Not Published
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	Not Published	94.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	3285 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag, Industrial (turf N/A)
R1 Agricultural - Front	7-16	8.3x16
R1 Agricultural - Rear	11.2-24	12.4x24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	2540L
Loader Lift Height	104 in	2540L: 101.9 in
Loader Lift Capacity (Full Height)	2,200 lb	2540L: 2,041 lb
Loader Breakout Force	3,660 lb	2540L: 3,430 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

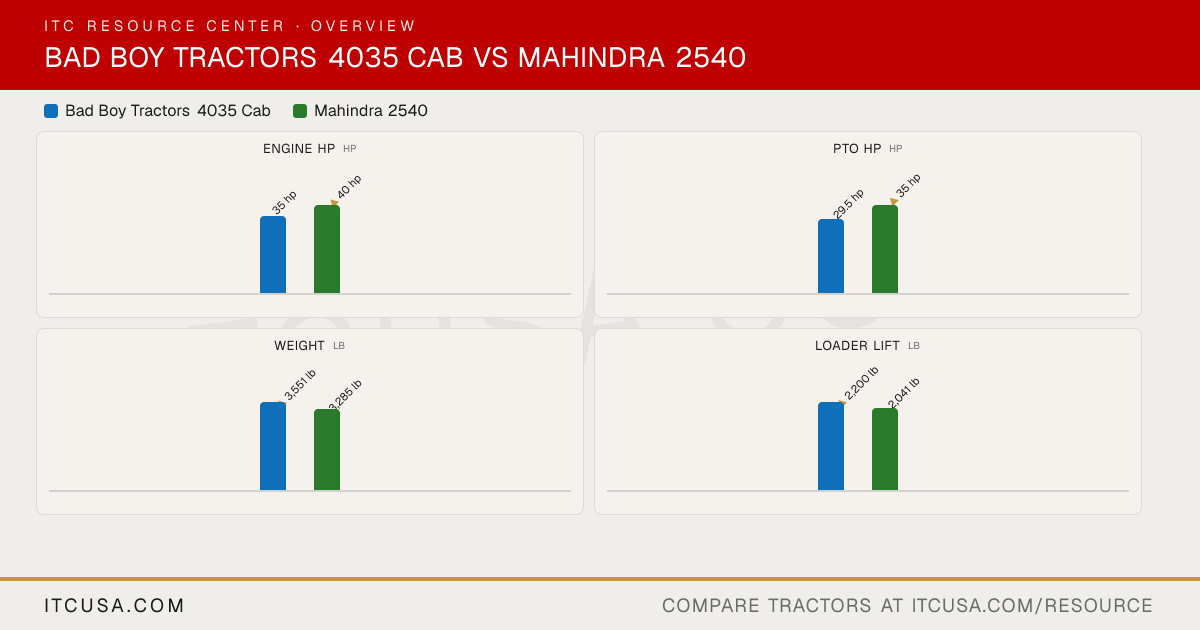

Bad Boy Tractors 4035 Cab vs Mahindra 2540: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 2540?

The Mahindra 2540 leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 2540?

The Mahindra 2540 leads on pto hp at 35 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Mahindra 2540?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,285 lb lb for the Mahindra 2540.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 2540?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 2,041 lb lb for the Mahindra 2540.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 2540?

The Mahindra 2540 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
