Mahindra 4530 vs Mahindra 5145

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Mahindra 5145 leads 6 categories to 1. Machine pages: Mahindra 4530 and Mahindra 5145.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 4530	Mahindra 5145
Engine HP (hp)	44 hp	▲ 45 hp
PTO HP (hp)	35 hp	▲ 38 hp
Weight (lb)	▲ 5,567 lb	5,390 lb
Loader Lift (lb)	2,950 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	3,969 lb	n/a
Lift Height (in)	120 in	▲ 122 in
Breakout Force (lbf)	4,950 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	10.9 gpm	▲ 13.3 gpm
Travel Speed (mph)	n/a	17.9 mph

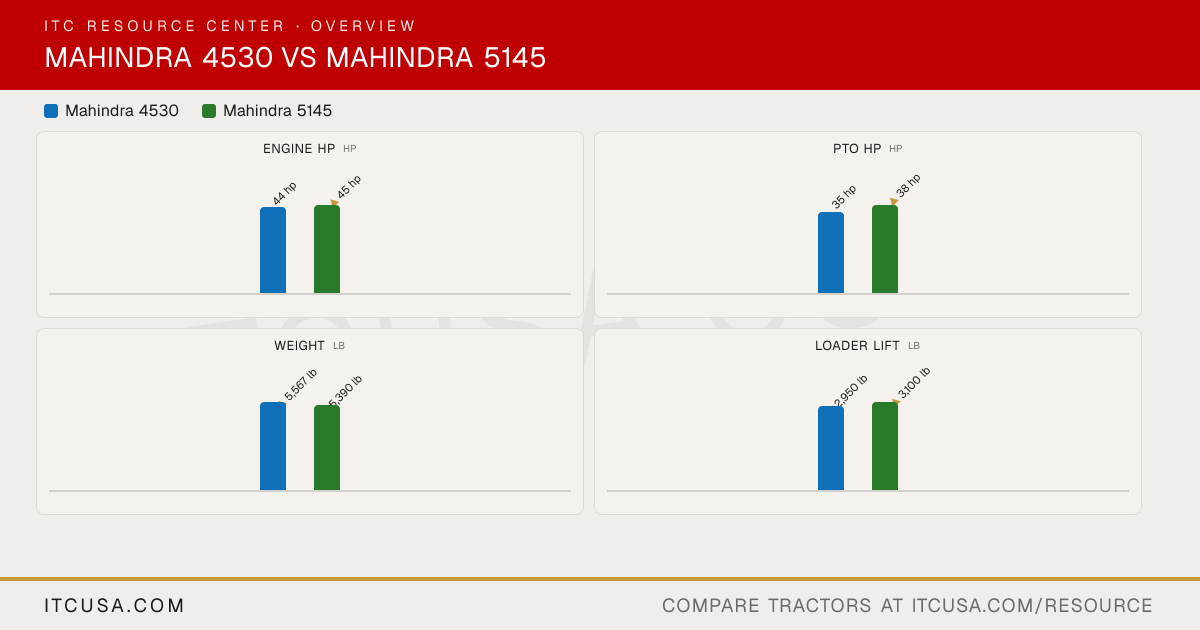

The headline numbers at a glance.

Mahindra 4530Mahindra 5145

Engine HPhp

44 hp

▲45 hp

PTO HPhp

35 hp

▲38 hp

Weightlb

▲5,567 lb

5,390 lb

Loader Liftlb

2,950 lb

▲3,100 lb

3-Pt Lift (24 in)lb

3,969 lb

n/a

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4530	Mahindra5145


Engine Manufacturer	Mahindra	Mahindra
Engine Model	NE342	DH45
Engine Type	Diesel, 3-cylinder, liquid-cooled, direct injection	Four-stroke, naturally aspirated, direct injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	152.4 in³	166.2 in³
Rated Engine Speed	2100 rpm	2300 rpm
Engine Power (Gross)	44 hp	45 hp
PTO Power	35 hp	38 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	36 A, 12 V	55 A

Pump Type	Not Published	Not Published
Implement Flow	10.9 gpm	8.71 gpm
Steering Flow	4.8 gpm	4.62 gpm
Total Hydraulic Flow	Not Published	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Open center with position and draft control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	One
No. of Optional Remote Valves	1 or 2 (optional)	One (optional second rear valve)

Fuel Tank Capacity	Not Published	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2100 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1 & 2	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	3,969 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position and draft control	Position control

Transmission Type	Forward-reverse synchro-shuttle	Full synchromesh with forward/reverse synchro shuttle and constant-mesh range
No. of Speeds	8F/8R	12F / 12R
Max Travel Speed (Forward)	Not Published	17.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual dry with cerametallic lining	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power	Power steering with tilt steering wheel
Brakes	Dry disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Not Published	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	72.5 in	74.8 in
Wheelbase	Not Published	77.9 in
Ground Clearance	Not Published	15.2 in
Min. Turn Radius without Brakes	Not Published	12.8 ft (3.9 m)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	134 in	136.6 in

Tractor Weight (Base)	5,567 lb	5,390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	9.5x20	9.5 x 20
R1 Agricultural - Rear	13.6x28	14.9 x 28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	10.5/80x18	10.5/80 x 18
R4 Industrial - Rear	16.9x24	16.9 x 24

Quick Attach Loader System	Not Published	Skid-steer style quick-attach coupler
Loader Model	ML245	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	ML245: 120 in (at pin)	122 in
Loader Lift Capacity (Full Height)	ML245: 2,950 lb (full height, at pin)	3,100 lb
Loader Breakout Force	ML245: 4,950 lb (at pin)	5,200 lb

Warranty Length & Coverage	Not Published	5-year limited powertrain warranty
