Bad Boy Tractors 4035 Cab vs Mahindra 5145

Across 9 measurable specs, the Mahindra 5145 leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and Mahindra 5145.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

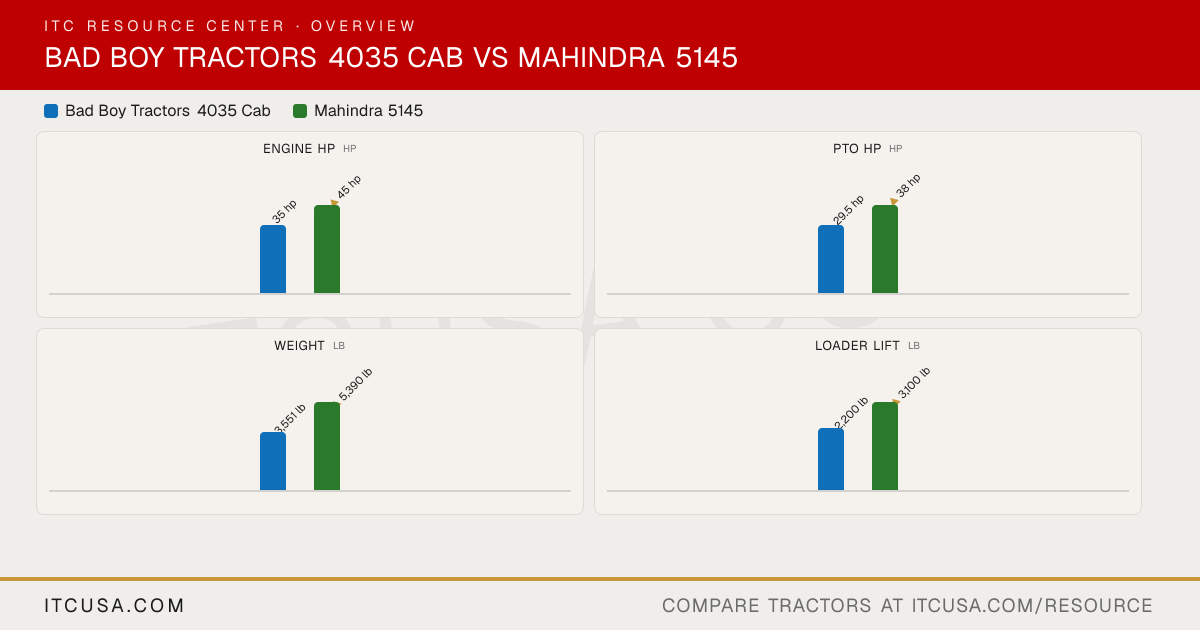

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Mahindra5145

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	Four-stroke, naturally aspirated, direct injection, water cooled diesel
No. of Cylinders	3	4
Displacement	104.7 in³	166.2 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	38 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	55 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.71 gpm
Steering Flow	4.4 gpm	4.62 gpm
Total Hydraulic Flow	12.6 gpm	13.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	17.1 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	3748 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
No. of Speeds	3 range (HST)	12F / 12R
Max Travel Speed (Forward)	18.21 mph	17.9 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering with tilt steering wheel
Brakes	Wet, multi-disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	136.6 in
Overall Width	56.3 in	74.8 in
Wheelbase	65.7 in	77.9 in
Ground Clearance	13.19 in	15.2 in
Min. Turn Radius without Brakes	Not Published	10.8 ft
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	5390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	7-16	9.5 x 20
R1 Agricultural - Rear	11.2-24	14.9 x 28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	10.5/80 x 18
R4 Industrial - Rear	43x16.00-20	16.9 x 24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid-steer style quick-attach coupler
Loader Model	BBL400	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	104 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	2,200 lb	5155-4L: 3,100 lb
Loader Breakout Force	3,660 lb	5155-4L: 5,200 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4035 Cab vs Mahindra 5145: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 5145?

The Mahindra 5145 leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Mahindra 5145?

The Mahindra 5145 leads on pto hp at 38 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Mahindra 5145?

The Mahindra 5145 leads on weight at 5,390 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 5145?

The Mahindra 5145 leads on loader lift at 3,100 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Mahindra 5145?

The Mahindra 5145 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
