Across 8 measurable specs, the Mahindra 5145 leads 6 categories to 2. Machine pages: Mahindra 5145 and Mahindra 5545.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 5145 | Mahindra 5545 |
|---|
| Engine HP (hp) | ▲ 45 hp | 43 hp |
| PTO HP (hp) | ▲ 38 hp | 34.9 hp |
| Weight (lb) | 5,390 lb | ▲ 5,567 lb |
| Loader Lift (lb) | ▲ 3,100 lb | 2,950 lb |
| 3-Pt Lift (24 in) (lb) | 3,748 lb | ▲ 3,969 lb |
| Lift Height (in) | ▲ 122 in | 120 in |
| Breakout Force (lbf) | ▲ 5,200 lbf | 4,950 lbf |
| Hydraulic Flow (gpm) | ▲ 13.3 gpm | 10.9 gpm |
| Travel Speed (mph) | 17.9 mph | n/a |

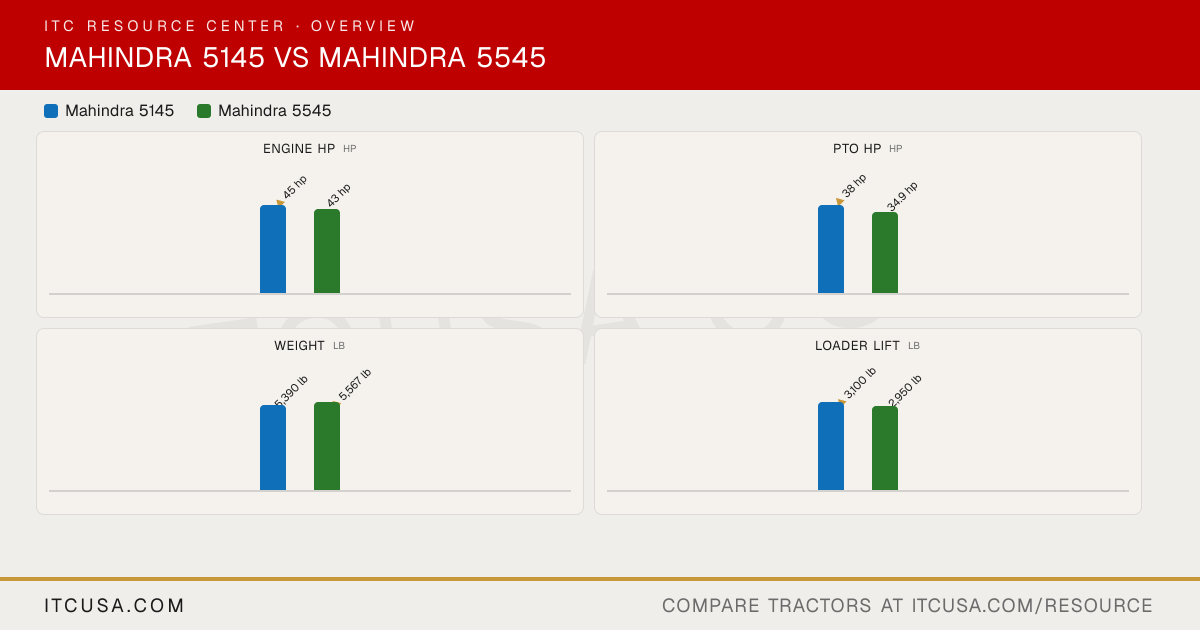

The headline numbers at a glance.
Mahindra 5145Mahindra 5545
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra5145 | Mahindra5545 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | DH45 | Not Published |
|---|
| Engine Type | Four-stroke, naturally aspirated, direct injection, water cooled diesel | Four stroke, direct injection, water-cooled diesel |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 166.2 in³ | 161.7 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 45 hp | 43 hp |
|---|
| PTO Power | 38 hp | 34.9 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection | Not Published |
|---|
| Alternator | 55 A | 45 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 8.71 gpm | 10.9 gpm |
|---|
| Steering Flow | 4.62 gpm | 5 gpm |
|---|
| Total Hydraulic Flow | 13.3 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 13.3 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Open center, full-live hydraulic with position and draft controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 1 |
|---|
| No. of Optional Remote Valves | 1 | 1 (optional) |
|---|
|
|---|
| Fuel Tank Capacity | 17.1 gal | 12 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm | 540 rpm @ 2058 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | CAT I & II with telescopic stabilizers & flex links | Category 1 and 2 with telescopic stabilizers |
|---|
| Hitch Lift Capacity | Not Published | 3969 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3748 lb | Not Published |
|---|
| Lift Control Type | Position control | Position and draft control |
|---|
|
|---|
| Transmission Type | Full synchromesh with forward/reverse synchro shuttle & constant mesh range | Forward/reverse synchro shuttle with synchro speeds and constant mesh range |
|---|
| No. of Speeds | 12F / 12R | 8F/8R |
|---|
| Max Travel Speed (Forward) | 17.9 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dual dry with cerametallic lining | Dual dry with cerametallic lining |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering with tilt steering wheel | Hydrostatic power |
|---|
| Brakes | Fully-enclosed, 7-in diameter, dry disc | Dry disc |
|---|
| Seat Suspension & Adjustability | Adjustable seat with contoured cushions, armrests and a soft-coil suspension | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 136.6 in | 134 in |
|---|
| Overall Width | 74.8 in | 72.5 in |
|---|
| Wheelbase | 77.9 in | Not Published |
|---|
| Ground Clearance | 15.2 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 10.8 ft | 10.8 ft |
|---|
| Height to Top of ROPS | Not Published | 93.3 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 5390 lb | 5567 lb |
|---|
| Weight with ROPS and Loader | 6,690 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural or R4 Industrial | Not Published |
|---|
| R1 Agricultural - Front | 9.5 x 20 | 9.5x20 |
|---|
| R1 Agricultural - Rear | 14.9 x 28 | 13.6x28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 10.5/80 x 18 | 10.5/80x18 |
|---|
| R4 Industrial - Rear | 16.9 x 24 | 16.9x24 |
|---|
|
|---|
| Quick Attach Loader System | Skid-steer style quick-attach coupler | Not Published |
|---|
| Loader Model | 5155-4L (front loader); 65B (rear backhoe) | 5545L |
|---|
| Loader Lift Height | 5155-4L: 122 in | 5545L: 120 in |
|---|
| Loader Lift Capacity (Full Height) | 5155-4L: 3,100 lb | 5545L: 2950 lb |
|---|
| Loader Breakout Force | 5155-4L: 5,200 lb | 5545L: 4950 lb |
|---|
|
|---|
| Warranty Length & Coverage | 5-year limited powertrain warranty | Not Published |
|---|
Mahindra 5145 vs Mahindra 5545: Quick Answers
- Which has more horsepower, the Mahindra 5145 or the Mahindra 5545?
- The Mahindra 5145 leads on engine hp at 45 hp hp, compared to 43 hp hp for the Mahindra 5545.
- Which has more PTO horsepower, the Mahindra 5145 or the Mahindra 5545?
- The Mahindra 5145 leads on pto hp at 38 hp hp, compared to 34.9 hp hp for the Mahindra 5545.
- Which is heavier, the Mahindra 5145 or the Mahindra 5545?
- The Mahindra 5545 leads on weight at 5,567 lb lb, compared to 5,390 lb lb for the Mahindra 5145.
- Which has more loader lift capacity, the Mahindra 5145 or the Mahindra 5545?
- The Mahindra 5145 leads on loader lift at 3,100 lb lb, compared to 2,950 lb lb for the Mahindra 5545.
- Which has more three-point hitch lift capacity, the Mahindra 5145 or the Mahindra 5545?
- The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,748 lb lb for the Mahindra 5145.
