Across 8 measurable specs, the Mahindra 5145 leads 6 categories to 2. Machine pages: Mahindra 5145 and Yanmar YM347.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 5145 | Yanmar YM347 |
|---|
| Engine HP (hp) | 45 hp | ▲ 46 hp |
| PTO HP (hp) | ▲ 38 hp | 35.5 hp |
| Weight (lb) | — | 5,129 lb |
| Loader Lift (lb) | ▲ 3,100 lb | 2,500 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,748 lb | 2,750 lb |
| Lift Height (in) | ▲ 122 in | 113 in |
| Breakout Force (lbf) | ▲ 5,200 lbf | 3,047 lbf |
| Hydraulic Flow (gpm) | 13.3 gpm | ▲ 14.6 gpm |
| Travel Speed (mph) | ▲ 17.9 mph | 17.7 mph |

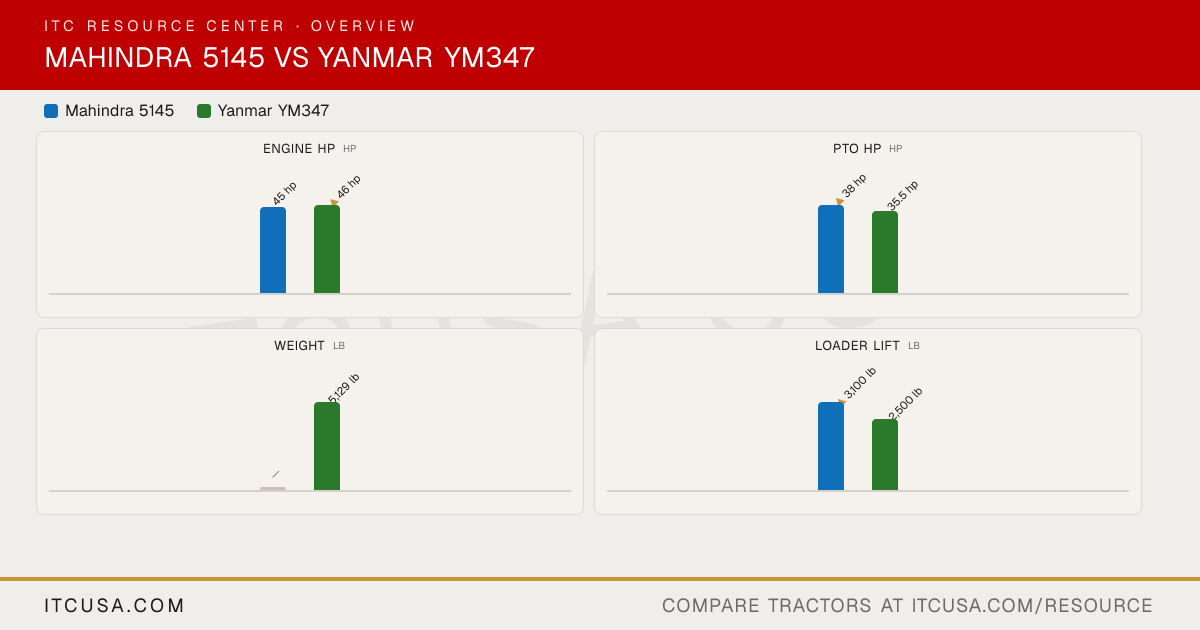

The headline numbers at a glance.
Mahindra 5145Yanmar YM347
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra5145 | YanmarYM347 |
|---|
|
|---|
| PTO Power | 38 hp @ 300 rpm | 35.5 hp |
|---|
| Alternator | 55 A | Not Published |
|---|
| Air Cleaner | Not Published | Dual air cleaner element |
|---|
| Engine Type | Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel | 4-cylinder, liquid-cooled diesel |
|---|
| Fuel System | Direct injection | Not Published |
|---|
| Displacement | 166.2 in³ | 133.6 in³ |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Rated Engine Speed | 2300 rpm | Not Published |
|---|
| Cooling System Type | Water-cooled | Liquid cooled |
|---|
| Engine Manufacturer | Mahindra | YANMAR |
|---|
| Engine Power (Gross) | 45 hp @ 300 rpm | 46 hp |
|---|
| Engine Emissions Constraints | No DPF | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | 5,129 lb |
|---|
| Weight with Cab and Loader | Not Applicable | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 5-Year limited powertrain warranty | 10-year limited powertrain warranty or 3,000 hours (whichever comes first) |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | 4.62 gpm | 5.3 gpm |
|---|
| Implement Flow | 8.71 gpm | 9.3 gpm |
|---|
| Total Hydraulic Flow | 13.3 gpm | 14.6 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 13.3 gpm | 14.6 gpm |
|---|
| No. of Optional Remote Valves | 1 additional (expandable to 2 total) | 2 |
|---|
| No. of Standard Remote Valves | 1 standard | 1 |
|---|
|
|---|
| PTO Rear | 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm | 540/540E rpm |
|---|
| PTO Type | Independent | Independent |
|---|
| Lift Control Type | Position & draft control | Not Published |
|---|
| Hitch Lift Capacity | Not Published | 3,190 lb |
|---|
| Mid-PTO Availability | Not Applicable | Not Published |
|---|
| Category, 3-Point Hitch | CAT I & II with telescopic stabilizers & flex links | Category I & II |
|---|
| Hitch Lift Capacity (at 24”) | 3748 lbs | 2,750 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Applicable | 44 x 18 - 20.0 |
|---|
| R3 Turf - Front | Not Applicable | 27.0 - 10.5 |
|---|
| Tire Size & Options | R1 Agricultural or R4 Industrial | R1 Agricultural; R3 Turf; R4 Industrial |
|---|
| R4 Industrial - Rear | 16.9X24 | 4.6 gal - 24.0 |
|---|
| R4 Industrial - Front | 10.5/80X18 | 10.0 - 16.5 |
|---|
| R1 Agricultural - Rear | 14.9X28 | 14.9 - 24.0 |
|---|
| R1 Agricultural - Front | 9.5X20 | 8.0 - 16.0 |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 17.1 gal | 13.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 122 inches | 113 in |
|---|
| Loader Breakout Force | 5200 lbs | 3,047 lb |
|---|
| Quick Attach Loader System | 5155-1.1 gal: Skid-steer style quick-attach coupler | YL605: Skid steer quick attach |
|---|
| Loader Lift Capacity (Full Height) | 3100 lbs | 2,500 lb (pivot pin) |
|---|
|
|---|
| Clutch | Dual dry, with cerametallic lining | Dry single |
|---|
| No. of Speeds | 12F / 12R | 8F/8R |
|---|
| Transmission Type | Full synchromesh with forward/reverse synchro shuttle & constant mesh range | Synchronized shuttle shift |
|---|
| Max Travel Speed (Forward) | 17.9 mph | 17.7 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Brakes | Fully-enclosed 7-inch diameter dry disc | Not Published |
|---|
| Steering | Hydrostatic power steering with tilt steering wheel | Power steering |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Adjustable seat with soft-coil suspension | Suspension seat |
|---|
|
|---|
| Wheelbase | 74.8 inches | 74.8 in |
|---|
| Overall Width | 80.3 inches | 70.9 in (with R4 tires) |
|---|
| Ground Clearance | 15.2 inches | 15.5 in |
|---|
| Height to Top of ROPS | 60.6 inches | 98 in (with R4 tires) |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 11.5 ft (3.5 m) |
|---|
| Overall Length with 3-Point Hitch | 136.6 inches | 133.6 in (with 3PH and R4 tires) |
|---|
Mahindra 5145 vs Yanmar YM347: Quick Answers
- Which has more horsepower, the Mahindra 5145 or the Yanmar YM347?
- The Yanmar YM347 leads on engine hp at 46 hp hp, compared to 45 hp hp for the Mahindra 5145.
- Which has more PTO horsepower, the Mahindra 5145 or the Yanmar YM347?
- The Mahindra 5145 leads on pto hp at 38 hp hp, compared to 35.5 hp hp for the Yanmar YM347.
- Which has more loader lift capacity, the Mahindra 5145 or the Yanmar YM347?
- The Mahindra 5145 leads on loader lift at 3,100 lb lb, compared to 2,500 lb lb for the Yanmar YM347.
- Which has more three-point hitch lift capacity, the Mahindra 5145 or the Yanmar YM347?
- The Mahindra 5145 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,750 lb lb for the Yanmar YM347.
