Across 9 measurable specs, the Mahindra 6110 leads 5 categories to 4. Machine pages: Mahindra 5155 Shuttle and Mahindra 6110.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 5155 Shuttle | Mahindra 6110 |
|---|
| Engine HP (hp) | 55 hp | ▲ 59 hp |
| PTO HP (hp) | 47 hp | ▲ 48.5 hp |
| Weight (lb) | ▲ 5,390 lb | 4,850 lb |
| Loader Lift (lb) | 3,100 lb | ▲ 3,122 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,748 lb | 3,527 lb |
| Lift Height (in) | ▲ 122 in | 115.4 in |
| Breakout Force (lbf) | 5,200 lbf | ▲ 5,225 lbf |
| Hydraulic Flow (gpm) | ▲ 13.3 gpm | 11 gpm |
| Travel Speed (mph) | 17.9 mph | ▲ 20 mph |

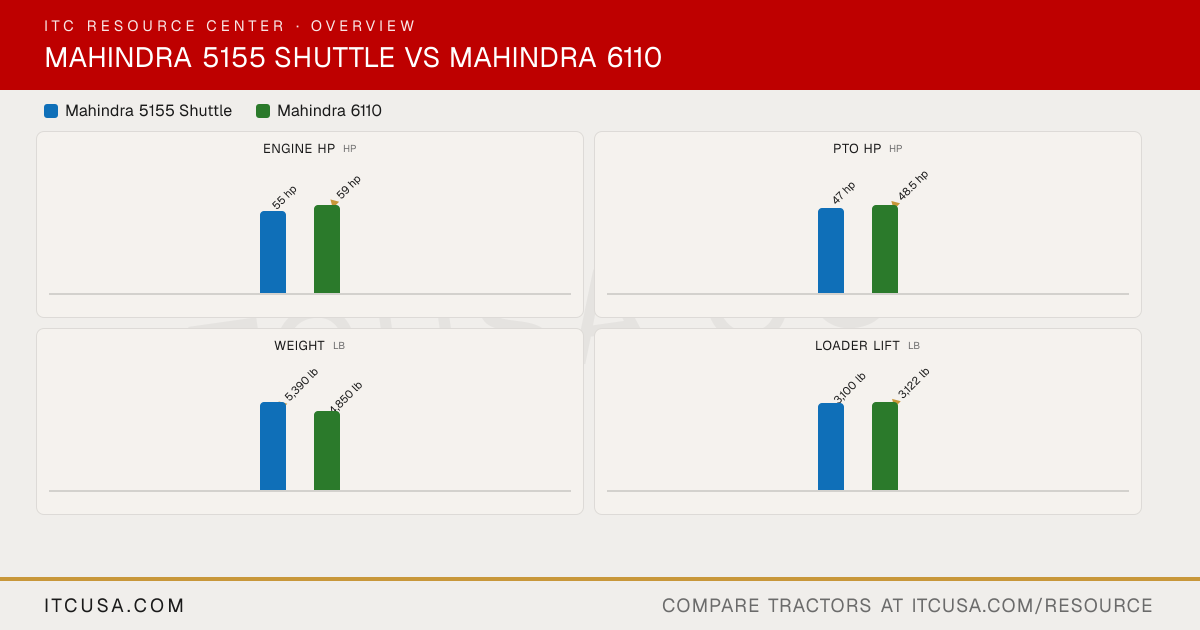

The headline numbers at a glance.
Mahindra 5155 ShuttleMahindra 6110
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra5155 Shuttle | Mahindra6110 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Daedong |
|---|
| Engine Model | DH55 | Not Published |
|---|
| Engine Type | Four-stroke, turbocharged, direct injection, water cooled diesel | Turbo-charged, indirect injection |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 166.2 in³ | 148.6 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 55 hp | 59 hp |
|---|
| PTO Power | 47 hp | 48.5 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection | Not Published |
|---|
| Alternator | 55 A | 50 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 8.71 gpm | 11 gpm |
|---|
| Steering Flow | 4.62 gpm | 5.4 gpm |
|---|
| Total Hydraulic Flow | 13.3 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 13.3 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Open Center with position and draft control |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 1 |
|---|
| No. of Optional Remote Valves | 1 | 3 |
|---|
|
|---|
| Fuel Tank Capacity | 17.1 gal | 18.5 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm | 540 rpm @ 2600 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | CAT I & II with telescopic stabilizers & flex links | Category 2, with telescopic check chains |
|---|
| Hitch Lift Capacity | Not Published | 3527 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3748 lb | Not Published |
|---|
| Lift Control Type | Position control | Position and draft control |
|---|
|
|---|
| Transmission Type | Full synchromesh with forward/reverse synchro shuttle & constant mesh range | Sync, shuttle w/ part synchromesh |
|---|
| No. of Speeds | 12F / 12R | 12F / 12R |
|---|
| Max Travel Speed (Forward) | 17.9 mph | 20.0 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 20.5 mph |
|---|
| Clutch | Dual dry with cerametallic lining | Single plate, dry |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering with tilt steering wheel | Hydrostatic/Tiltable |
|---|
| Brakes | Fully-enclosed, 7-in diameter, dry disc | Wet Disc |
|---|
| Seat Suspension & Adjustability | Adjustable seat with contoured cushions, armrests and a soft-coil suspension | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 136.6 in | 141.3 in |
|---|
| Overall Width | 74.8 in | 71.5 in |
|---|
| Wheelbase | 77.9 in | Not Published |
|---|
| Ground Clearance | 16.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 10.8 ft | 12.5 ft |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 99.2 in |
|---|
|
|---|
| Tractor Weight (Base) | 5390 lb | 4850 lb |
|---|
| Weight with ROPS and Loader | 6,690 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural or R4 Industrial | Not Published |
|---|
| R1 Agricultural - Front | 9.5 x 20 | 9.5x20 |
|---|
| R1 Agricultural - Rear | 14.9 x 28 | 14.9x28 |
|---|
| R3 Turf - Front | Not Published | LSW305-521 |
|---|
| R3 Turf - Rear | Not Published | LSW570-648 |
|---|
| R4 Industrial - Front | 10.5/80 x 18 | 10.5/80x18 |
|---|
| R4 Industrial - Rear | 16.9 x 24 | 18.4x24 |
|---|
|
|---|
| Quick Attach Loader System | Skid-steer style quick-attach coupler | Not Published |
|---|
| Loader Model | 5155-4L (front loader); 65B (rear backhoe) | ML161 |
|---|
| Loader Lift Height | 5155-4L: 122 in | ML161: 115.4 in |
|---|
| Loader Lift Capacity (Full Height) | 5155-4L: 3,100 lb | ML161: 3122 lb |
|---|
| Loader Breakout Force | 5155-4L: 5,200 lb | ML161: 5225 lb |
|---|
|
|---|
| Warranty Length & Coverage | 5-year limited powertrain warranty | Not Published |
|---|
Mahindra 5155 Shuttle vs Mahindra 6110: Quick Answers
- Which has more horsepower, the Mahindra 5155 Shuttle or the Mahindra 6110?
- The Mahindra 6110 leads on engine hp at 59 hp hp, compared to 55 hp hp for the Mahindra 5155 Shuttle.
- Which has more PTO horsepower, the Mahindra 5155 Shuttle or the Mahindra 6110?
- The Mahindra 6110 leads on pto hp at 48.5 hp hp, compared to 47 hp hp for the Mahindra 5155 Shuttle.
- Which is heavier, the Mahindra 5155 Shuttle or the Mahindra 6110?
- The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 4,850 lb lb for the Mahindra 6110.
- Which has more loader lift capacity, the Mahindra 5155 Shuttle or the Mahindra 6110?
- The Mahindra 6110 leads on loader lift at 3,122 lb lb, compared to 3,100 lb lb for the Mahindra 5155 Shuttle.
- Which has more three-point hitch lift capacity, the Mahindra 5155 Shuttle or the Mahindra 6110?
- The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 3,527 lb lb for the Mahindra 6110.
