Which has more horsepower, the Mahindra 5155 Shuttle or the TYM 5520?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 5155 Shuttle or the TYM 5520?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 44 hp hp for the TYM 5520.

Which has more loader lift capacity, the Mahindra 5155 Shuttle or the TYM 5520?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,701 lb lb for the TYM 5520.

Which has more three-point hitch lift capacity, the Mahindra 5155 Shuttle or the TYM 5520?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the TYM 5520.

Mahindra 5155 Shuttle vs TYM 5520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5155 Shuttle leads 5 categories to 2 (1 tied). Machine pages: Mahindra 5155 Shuttle and TYM 5520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5155 Shuttle	TYM 5520
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 47 hp	44 hp
Loader Lift (lb)	▲ 3,100 lb	2,701 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	2,425 lb
Lift Height (in)	▲ 122 in	106.6 in
Breakout Force (lbf)	▲ 5,200 lbf	3,660 lbf
Hydraulic Flow (gpm)	13.3 gpm	▲ 16.5 gpm
Travel Speed (mph)	17.9 mph	▲ 19.5 mph

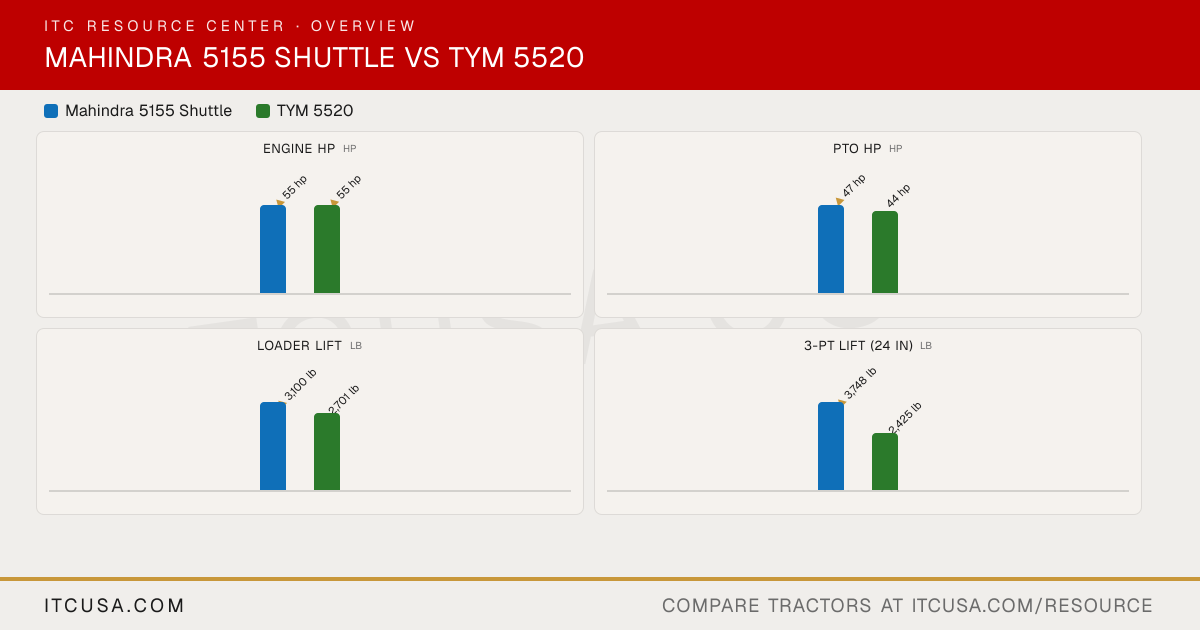

The headline numbers at a glance.

Mahindra 5155 ShuttleTYM 5520

Engine HPhp

▲55 hp

PTO HPhp

▲47 hp

44 hp

Weightlb

—

Loader Liftlb

▲3,100 lb

2,701 lb

3-Pt Lift (24 in)lb

▲3,748 lb

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5155 Shuttle	TYM5520


PTO Power	47 hp @ 300 rpm	44 hp
Alternator	55 A	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel	4-cylinder, turbocharged diesel
Fuel System	Direct injection	IDI
Displacement	166.2 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2300 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Mahindra	TYM
Engine Power (Gross)	55 hp @ 300 rpm	55 hp
Engine Emissions Constraints	No DPF	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	5-Year limited powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	4.62 gpm	5.2 gpm
Implement Flow	8.71 gpm	11.4 gpm
Total Hydraulic Flow	13.3 gpm	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	16.5 gpm
No. of Optional Remote Valves	1 additional (expandable to 2 total)	Up to 4
No. of Standard Remote Valves	1 standard	0

PTO Rear	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm	540/750 rpm
PTO Type	Independent	Independent
Lift Control Type	Position & draft control	Position control
Hitch Lift Capacity	Not Published	3,306 lb
Mid-PTO Availability	Not Applicable	Not Published
Category, 3-Point Hitch	CAT I & II with telescopic stabilizers & flex links	Category I
Hitch Lift Capacity (at 24”)	3748 lbs	2,425 lb

R3 Turf - Rear	Not Applicable	41x14-20 / 44x18-20
R3 Turf - Front	Not Applicable	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural or R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	16.9X24	17.5Lx24
R4 Industrial - Front	10.5/80X18	12-16.5
R1 Agricultural - Rear	14.9X28	13.6-26
R1 Agricultural - Front	9.5X20	9.5-16

Coolant Capacity	Not Published	6.2 qt
Crankcase Capacity	Not Published	4.8 qt
Fuel Tank Capacity	17.1 gal	11.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	122 inches	106.6 in
Loader Breakout Force	5200 lbs	3,660 lb
Quick Attach Loader System	5155-1.1 gal: Skid-steer style quick-attach coupler	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	3100 lbs	2,701 lb

Clutch	Dual dry, with cerametallic lining	Dry single type (N/A)
No. of Speeds	12F / 12R	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	Full synchromesh with forward/reverse synchro shuttle & constant mesh range	HST: Hydrostatic (HST); Gear: Synchromesh
Max Travel Speed (Forward)	17.9 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock system

Brakes	Fully-enclosed 7-inch diameter dry disc	Wet, multi disc
Steering	Hydrostatic power steering with tilt steering wheel	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat with soft-coil suspension	Suspension seat

Wheelbase	74.8 inches	71.1 in
Overall Width	80.3 inches	64.9 in
Ground Clearance	16.4 inches	15.5 in
Height to Top of ROPS	60.6 inches	98.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	140.0 inches	127.4 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

Mahindra 5155 Shuttle vs TYM 5520: Quick Answers

Which has more horsepower, the Mahindra 5155 Shuttle or the TYM 5520?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 5155 Shuttle or the TYM 5520?: The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 44 hp hp for the TYM 5520.
Which has more loader lift capacity, the Mahindra 5155 Shuttle or the TYM 5520?: The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,701 lb lb for the TYM 5520.
Which has more three-point hitch lift capacity, the Mahindra 5155 Shuttle or the TYM 5520?: The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the TYM 5520.
