Which has more horsepower, the Mahindra 5155 Shuttle or the TYM T574C?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 5155 Shuttle or the TYM T574C?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 44.7 hp hp for the TYM T574C.

Which has more loader lift capacity, the Mahindra 5155 Shuttle or the TYM T574C?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,790 lb lb for the TYM T574C.

Which has more three-point hitch lift capacity, the Mahindra 5155 Shuttle or the TYM T574C?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 3,050.6 lb lb for the TYM T574C.

Mahindra 5155 Shuttle vs TYM T574C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5155 Shuttle leads 5 categories to 2 (1 tied). Machine pages: Mahindra 5155 Shuttle and TYM T574C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5155 Shuttle	TYM T574C
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 47 hp	44.7 hp
Weight (lb)	—	5,353 lb
Loader Lift (lb)	▲ 3,100 lb	2,790 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	3,050.6 lb
Lift Height (in)	▲ 122 in	109.4 in
Breakout Force (lbf)	5,200 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	▲ 13.3 gpm	11.9 gpm
Travel Speed (mph)	17.9 mph	▲ 18.6 mph

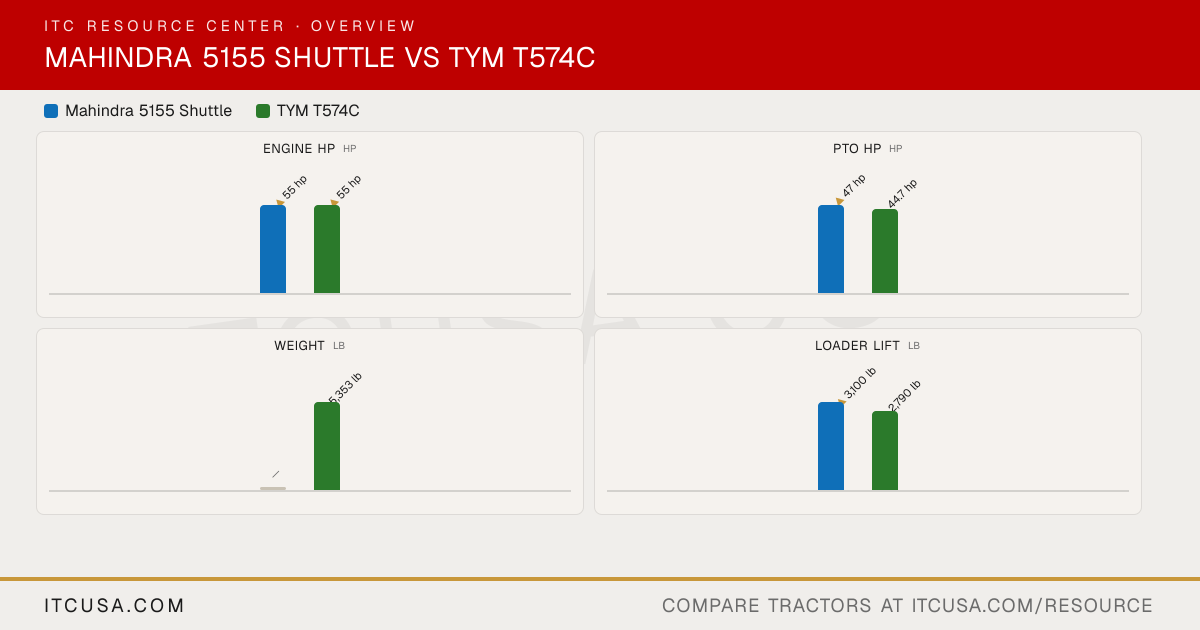

The headline numbers at a glance.

Mahindra 5155 ShuttleTYM T574C

Engine HPhp

▲55 hp

PTO HPhp

▲47 hp

44.7 hp

Weightlb

—

5,353 lb

Loader Liftlb

▲3,100 lb

2,790 lb

3-Pt Lift (24 in)lb

▲3,748 lb

3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5155 Shuttle	TYMT574C


PTO Power	47 hp @ 300 rpm	44.7 hp
Alternator	55 A	70 A, 12 V
Air Cleaner	Not Published	Single dry
Engine Type	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel	4-cylinder, turbocharged diesel
Fuel System	Direct injection	IDI
Displacement	166.2 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2300 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Mahindra	TYM
Engine Power (Gross)	55 hp @ 300 rpm	55 hp
Engine Emissions Constraints	No DPF	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	5,353 lb

Warranty Length & Coverage	5-Year limited powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	4.62 gpm	4.3 gpm
Implement Flow	8.71 gpm	7.7 gpm
Total Hydraulic Flow	13.3 gpm	11.9 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	11.9 gpm
No. of Optional Remote Valves	1 additional (expandable to 2 total)	Not Published
No. of Standard Remote Valves	1 standard	2

PTO Rear	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position & draft control	Position/Draft
Hitch Lift Capacity	Not Published	3,822 lb
Mid-PTO Availability	Not Applicable	Available (Mid-PTO kit)
Category, 3-Point Hitch	CAT I & II with telescopic stabilizers & flex links	Category I
Hitch Lift Capacity (at 24”)	3748 lbs	3,050.6 lb

R3 Turf - Rear	Not Applicable	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Applicable	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural or R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	16.9X24	Xtra Grip 17.5Lx24 NHS TL 6PR
R4 Industrial - Front	10.5/80X18	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	14.9X28	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	9.5X20	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	Not Published	6.9 qt
Crankcase Capacity	Not Published	6.8 qt
Fuel Tank Capacity	17.1 gal	17.0 gal
Front Axle Fluid Capacity	Not Published	10.5 qt
Transmission / Hydraulic System Capacity	Not Published	9.2 gal

Loader Lift Height	122 inches	109.4 in
Loader Breakout Force	5200 lbs	5,316 lb
Quick Attach Loader System	5155-1.1 gal: Skid-steer style quick-attach coupler	TX57: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	3100 lbs	2,790 lb

Clutch	Dual dry, with cerametallic lining	Dry single plate
No. of Speeds	12F / 12R	F8 x R8
Transmission Type	Full synchromesh with forward/reverse synchro shuttle & constant mesh range	Synchro-shuttle
Max Travel Speed (Forward)	17.9 mph	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Fully-enclosed 7-inch diameter dry disc	Wet disc
Steering	Hydrostatic power steering with tilt steering wheel	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat with soft-coil suspension	Not Published

Wheelbase	74.8 inches	76.2 in
Overall Width	80.3 inches	63.8 in
Ground Clearance	16.4 inches	13.8 in
Height to Top of ROPS	60.6 inches	Not Applicable
Height to Top of Cab Model	Not Applicable	98 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	131.5 in
Overall Length with 3-Point Hitch	140.0 inches	141.3 in

Accessories that fit	None tagged yet	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 HD Protection Package $1250.00 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99

Mahindra 5155 Shuttle vs TYM T574C: Quick Answers

Which has more horsepower, the Mahindra 5155 Shuttle or the TYM T574C?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 5155 Shuttle or the TYM T574C?: The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 44.7 hp hp for the TYM T574C.
Which has more loader lift capacity, the Mahindra 5155 Shuttle or the TYM T574C?: The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,790 lb lb for the TYM T574C.
Which has more three-point hitch lift capacity, the Mahindra 5155 Shuttle or the TYM T574C?: The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 3,050.6 lb lb for the TYM T574C.
