Mahindra eMax 20S vs Mahindra eMax 20S HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra eMax 20S HST Cab leads 2 categories to 0 (6 tied). Machine pages: Mahindra eMax 20S and Mahindra eMax 20S HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra eMax 20S	Mahindra eMax 20S HST Cab
Engine HP (hp)	19.4 hp	19.4 hp
PTO HP (hp)	14.2 hp	14.2 hp
Weight (lb)	1,499 lb	▲ 1,800 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 680 lb
Lift Height (in)	71.3 in	71.3 in
Breakout Force (lbf)	1,235 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.2 gpm	6.2 gpm

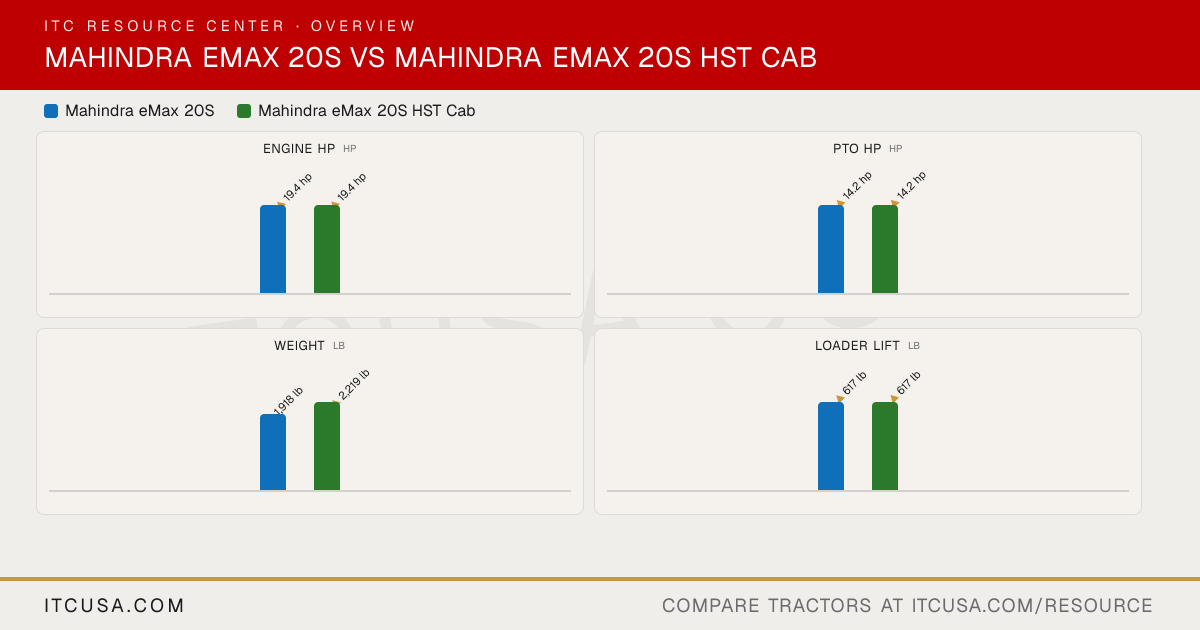

The headline numbers at a glance.

Mahindra eMax 20SMahindra eMax 20S HST Cab

Engine HPhp

▲19.4 hp

PTO HPhp

▲14.2 hp

Weightlb

1,499 lb

▲1,800 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

679 lb

▲680 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S	MahindraeMax 20S HST Cab


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV74F	3TNV74F
Engine Type	Naturally aspirated, indirect injection, liquid-cooled diesel	Naturally aspirated, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	19.4 hp	19.4 hp
PTO Power	14.2 hp	14.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	4.1 gpm	4.1 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.2 gpm
Overall Hydraulic Pump Flow	6.2 gpm	6.2 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 @ 2942 rpm	540 @ 2942 rpm
Mid-PTO Availability	Available; 2500 @ 2958 rpm	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	CAT I Narrow with Check Chains	CAT I Narrow with Check Chains
Hitch Lift Capacity	680 lb	680 lb
Hitch Lift Capacity (at 24”)	679 lb	Not Published
Lift Control Type	Position	Position

Transmission Type	HST - 2 range	HST - 2 range
No. of Speeds	Infinite	Infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet Disc	Wet Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft	7.2 ft
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	79.6 in
Overall Length	94.2 in (with 3-point hitch)	94.2 in

Tractor Weight (Base)	1,499 lb	1,800 lb
Weight with ROPS and Loader	1,918 lb (1,499 + 419, computed; 6.1 gal loader shipping weight)	Not Published
Weight with Cab and Loader	Not Published	2,219 lb (1,800 + 419, computed; 6.1 gal loader shipping weight)

Tire Size & Options	Agricultural, Industrial, Turf	Agricultural, Industrial, Turf
R1 Agricultural - Front	18x8.5-10	18x8.5-10
R1 Agricultural - Rear	26x12-12	26x12-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	23L: Skid steer style quick coupler, standard	23L: Skid steer style quick coupler, standard
Loader Model	23L	23L
Loader Lift Height	71.3 in	71.3 in
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	617 lb (at pivot pin)
Loader Breakout Force	1,235 lb (at pivot pin, ground level)	1,235 lb (at pivot pin, ground level)

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra eMax 20S vs Mahindra eMax 20S HST Cab: Quick Answers

Which has more horsepower, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?: They are effectively tied: both machines are rated at 19.4 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?: They are effectively tied: both machines are rated at 14.2 hp hp for pto hp.
Which is heavier, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?: The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,499 lb lb for the Mahindra eMax 20S.
Which has more loader lift capacity, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?: They are effectively tied: both machines are rated at 617 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?: The Mahindra eMax 20S HST Cab leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the Mahindra eMax 20S.

More Head-to-Heads

Category Verdict

Spec	Mahindra eMax 20S	Mahindra eMax 20S HST Cab
Engine HP (hp)	19.4 hp	19.4 hp
PTO HP (hp)	14.2 hp	14.2 hp
Weight (lb)	1,499 lb	▲ 1,800 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 680 lb
Lift Height (in)	71.3 in	71.3 in
Breakout Force (lbf)	1,235 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.2 gpm	6.2 gpm

The headline numbers at a glance.

Mahindra eMax 20SMahindra eMax 20S HST Cab

Engine HPhp

▲19.4 hp

PTO HPhp

▲14.2 hp

Weightlb

1,499 lb

▲1,800 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

679 lb

▲680 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S	MahindraeMax 20S HST Cab


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV74F	3TNV74F
Engine Type	Naturally aspirated, indirect injection, liquid-cooled diesel	Naturally aspirated, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	19.4 hp	19.4 hp
PTO Power	14.2 hp	14.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	4.1 gpm	4.1 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.2 gpm
Overall Hydraulic Pump Flow	6.2 gpm	6.2 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 @ 2942 rpm	540 @ 2942 rpm
Mid-PTO Availability	Available; 2500 @ 2958 rpm	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	CAT I Narrow with Check Chains	CAT I Narrow with Check Chains
Hitch Lift Capacity	680 lb	680 lb
Hitch Lift Capacity (at 24”)	679 lb	Not Published
Lift Control Type	Position	Position

Transmission Type	HST - 2 range	HST - 2 range
No. of Speeds	Infinite	Infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet Disc	Wet Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft	7.2 ft
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	79.6 in
Overall Length	94.2 in (with 3-point hitch)	94.2 in

Tractor Weight (Base)	1,499 lb	1,800 lb
Weight with ROPS and Loader	1,918 lb (1,499 + 419, computed; 6.1 gal loader shipping weight)	Not Published
Weight with Cab and Loader	Not Published	2,219 lb (1,800 + 419, computed; 6.1 gal loader shipping weight)

Tire Size & Options	Agricultural, Industrial, Turf	Agricultural, Industrial, Turf
R1 Agricultural - Front	18x8.5-10	18x8.5-10
R1 Agricultural - Rear	26x12-12	26x12-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	23L: Skid steer style quick coupler, standard	23L: Skid steer style quick coupler, standard
Loader Model	23L	23L
Loader Lift Height	71.3 in	71.3 in
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	617 lb (at pivot pin)
Loader Breakout Force	1,235 lb (at pivot pin, ground level)	1,235 lb (at pivot pin, ground level)

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra eMax 20S vs Mahindra eMax 20S HST Cab: Quick Answers

Which has more horsepower, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?

They are effectively tied: both machines are rated at 19.4 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?

They are effectively tied: both machines are rated at 14.2 hp hp for pto hp.

Which is heavier, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,499 lb lb for the Mahindra eMax 20S.

Which has more loader lift capacity, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?

They are effectively tied: both machines are rated at 617 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra eMax 20S or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the Mahindra eMax 20S.
