Mahindra eMax 22L vs Massey Ferguson MF 1GC.23B

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Mahindra eMax 22L leads 4 categories to 3. Machine pages: Mahindra eMax 22L and Massey Ferguson MF 1GC.23B.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra eMax 22L	Massey Ferguson MF 1GC.23B
Engine HP (hp)	22 hp	▲ 22.5 hp
PTO HP (hp)	14.9 hp	▲ 18.3 hp
Weight (lb)	1,638 lb	n/a
Loader Lift (lb)	900 lb	▲ 922 lb
3-Pt Lift (24 in) (lb)	▲ 1,323 lb	661 lb
Lift Height (in)	▲ 75.3 in	74 in
Breakout Force (lbf)	▲ 2,000 lbf	1,392 lbf
Hydraulic Flow (gpm)	▲ 7.1 gpm	6 gpm

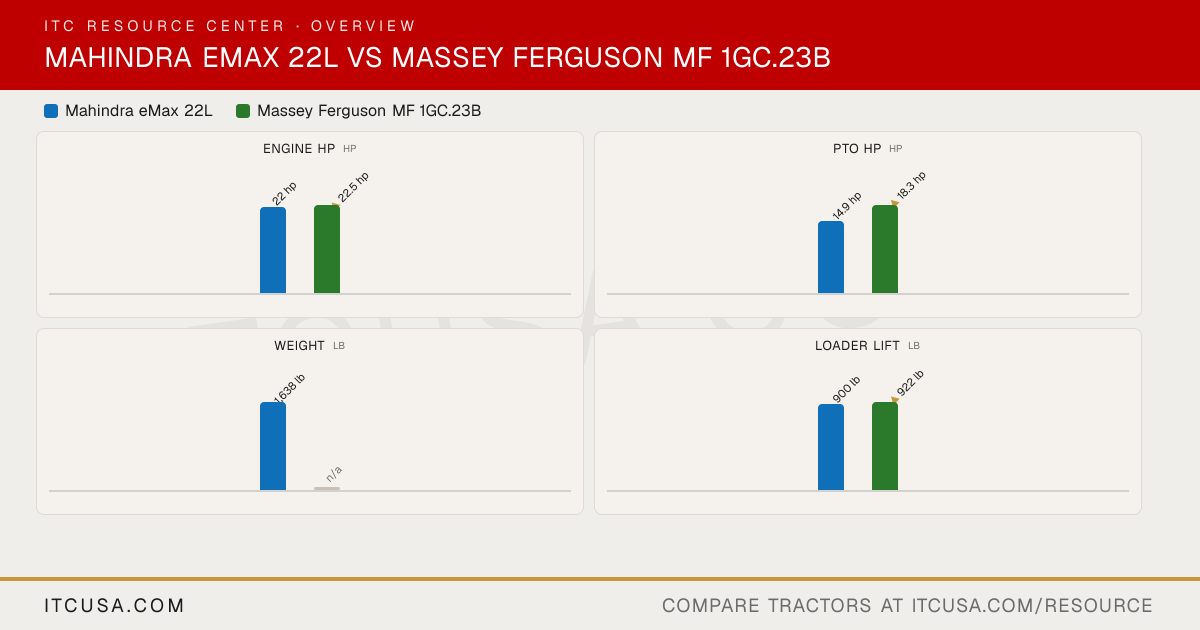

The headline numbers at a glance.

Mahindra eMax 22LMassey Ferguson MF 1GC.23B

Engine HPhp

22 hp

▲22.5 hp

PTO HPhp

14.9 hp

▲18.3 hp

Weightlb

1,638 lb

n/a

Loader Liftlb

900 lb

▲922 lb

3-Pt Lift (24 in)lb

▲1,323 lb

661 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 22L	Massey FergusonMF 1GC.23B


Engine Manufacturer	Kukje	Iseki
Engine Model	A1100N3	Not Published
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22 hp	22.5 hp
PTO Power	14.9 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Not Published
Alternator	50 A, 12 V	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.5 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.1 gpm	6 gpm
Overall Hydraulic Pump Flow	7.1 gpm	6 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.8 gal	6.6 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.3 qt	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 @ 2550 rpm	540 rpm, 1.375 in 6-spline
Mid-PTO Availability	Available; 2000 @ 2550 rpm	Independent, 2000 rpm
Category, 3-Point Hitch	CAT I with Check Chains	Category I
Hitch Lift Capacity	1323 lb	1,191 lb
Hitch Lift Capacity (at 24”)	Not Published	661 lb
Lift Control Type	Not Published	Not Published

Transmission Type	HST - 2 range	Hydrostatic
No. of Speeds	Infinite	Infinite forward and reverse (2-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet Disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	100.5 in	Not Published
Overall Width	45.8 in	Not Published
Wheelbase	57.5 in	Not Published
Ground Clearance	9.4 in	Not Published
Min. Turn Radius without Brakes	7.2 ft	Not Published
Height to Top of ROPS	91.3 in	85.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1638 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6x12	18x8.50-10
R1 Agricultural - Rear	9.5x16	26x12.00-12
R3 Turf - Front	20x8-10	Not Published
R3 Turf - Rear	29x12.5-15	Not Published
R4 Industrial - Front	20x8-10	Not Published
R4 Industrial - Rear	27x12.5-15	Not Published

Quick Attach Loader System	25LSK: Standard skid steer style loader couplers provide fast and easy front implement connection.	Skid Steer Quick Attach
Loader Model	25LSK	FL1805
Loader Lift Height	25LSK: 75.3 in	FL1805: 74 in
Loader Lift Capacity (Full Height)	25LSK: 900 lb	FL1805: 922 lb
Loader Breakout Force	25LSK: 2000 lb	FL1805: 1,392 lb

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases	Not Published

Find a Mahindra dealer near you Find a dealer near you

Mahindra eMax 22L vs Massey Ferguson MF 1GC.23B: Quick Answers

Which has more horsepower, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?: The Massey Ferguson MF 1GC.23B leads on engine hp at 22.5 hp hp, compared to 22 hp hp for the Mahindra eMax 22L.
Which has more PTO horsepower, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?: The Massey Ferguson MF 1GC.23B leads on pto hp at 18.3 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.
Which has more loader lift capacity, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?: The Massey Ferguson MF 1GC.23B leads on loader lift at 922 lb lb, compared to 900 lb lb for the Mahindra eMax 22L.
Which has more three-point hitch lift capacity, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?: The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 661 lb lb for the Massey Ferguson MF 1GC.23B.

More Head-to-Heads

Category Verdict

Spec	Mahindra eMax 22L	Massey Ferguson MF 1GC.23B
Engine HP (hp)	22 hp	▲ 22.5 hp
PTO HP (hp)	14.9 hp	▲ 18.3 hp
Weight (lb)	1,638 lb	n/a
Loader Lift (lb)	900 lb	▲ 922 lb
3-Pt Lift (24 in) (lb)	▲ 1,323 lb	661 lb
Lift Height (in)	▲ 75.3 in	74 in
Breakout Force (lbf)	▲ 2,000 lbf	1,392 lbf
Hydraulic Flow (gpm)	▲ 7.1 gpm	6 gpm

The headline numbers at a glance.

Mahindra eMax 22LMassey Ferguson MF 1GC.23B

Engine HPhp

22 hp

▲22.5 hp

PTO HPhp

14.9 hp

▲18.3 hp

Weightlb

1,638 lb

n/a

Loader Liftlb

900 lb

▲922 lb

3-Pt Lift (24 in)lb

▲1,323 lb

661 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 22L	Massey FergusonMF 1GC.23B


Engine Manufacturer	Kukje	Iseki
Engine Model	A1100N3	Not Published
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22 hp	22.5 hp
PTO Power	14.9 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Not Published
Alternator	50 A, 12 V	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.5 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.1 gpm	6 gpm
Overall Hydraulic Pump Flow	7.1 gpm	6 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.8 gal	6.6 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.3 qt	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 @ 2550 rpm	540 rpm, 1.375 in 6-spline
Mid-PTO Availability	Available; 2000 @ 2550 rpm	Independent, 2000 rpm
Category, 3-Point Hitch	CAT I with Check Chains	Category I
Hitch Lift Capacity	1323 lb	1,191 lb
Hitch Lift Capacity (at 24”)	Not Published	661 lb
Lift Control Type	Not Published	Not Published

Transmission Type	HST - 2 range	Hydrostatic
No. of Speeds	Infinite	Infinite forward and reverse (2-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet Disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	100.5 in	Not Published
Overall Width	45.8 in	Not Published
Wheelbase	57.5 in	Not Published
Ground Clearance	9.4 in	Not Published
Min. Turn Radius without Brakes	7.2 ft	Not Published
Height to Top of ROPS	91.3 in	85.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1638 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6x12	18x8.50-10
R1 Agricultural - Rear	9.5x16	26x12.00-12
R3 Turf - Front	20x8-10	Not Published
R3 Turf - Rear	29x12.5-15	Not Published
R4 Industrial - Front	20x8-10	Not Published
R4 Industrial - Rear	27x12.5-15	Not Published

Quick Attach Loader System	25LSK: Standard skid steer style loader couplers provide fast and easy front implement connection.	Skid Steer Quick Attach
Loader Model	25LSK	FL1805
Loader Lift Height	25LSK: 75.3 in	FL1805: 74 in
Loader Lift Capacity (Full Height)	25LSK: 900 lb	FL1805: 922 lb
Loader Breakout Force	25LSK: 2000 lb	FL1805: 1,392 lb

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases	Not Published

Find a Mahindra dealer near you Find a dealer near you

Mahindra eMax 22L vs Massey Ferguson MF 1GC.23B: Quick Answers

Which has more horsepower, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?

The Massey Ferguson MF 1GC.23B leads on engine hp at 22.5 hp hp, compared to 22 hp hp for the Mahindra eMax 22L.

Which has more PTO horsepower, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?

The Massey Ferguson MF 1GC.23B leads on pto hp at 18.3 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.

Which has more loader lift capacity, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?

The Massey Ferguson MF 1GC.23B leads on loader lift at 922 lb lb, compared to 900 lb lb for the Mahindra eMax 22L.

Which has more three-point hitch lift capacity, the Mahindra eMax 22L or the Massey Ferguson MF 1GC.23B?

The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 661 lb lb for the Massey Ferguson MF 1GC.23B.
