Massey Ferguson 1526 vs Massey Ferguson 1726EHL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Massey Ferguson 1726EHL leads 4 categories to 2. Machine pages: Massey Ferguson 1526 and Massey Ferguson 1726EHL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1526	Massey Ferguson 1726EHL
Engine HP (hp)	▲ 24.8 hp	24 hp
PTO HP (hp)	▲ 20.1 hp	19.2 hp
Weight (lb)	2,077 lb	▲ 2,657 lb
Loader Lift (lb)	n/a	1,210 lb
3-Pt Lift (24 in) (lb)	992 lb	▲ 1,600 lb
Lift Height (in)	83 in	▲ 95.7 in
Breakout Force (lbf)	n/a	1,460 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.5 gpm

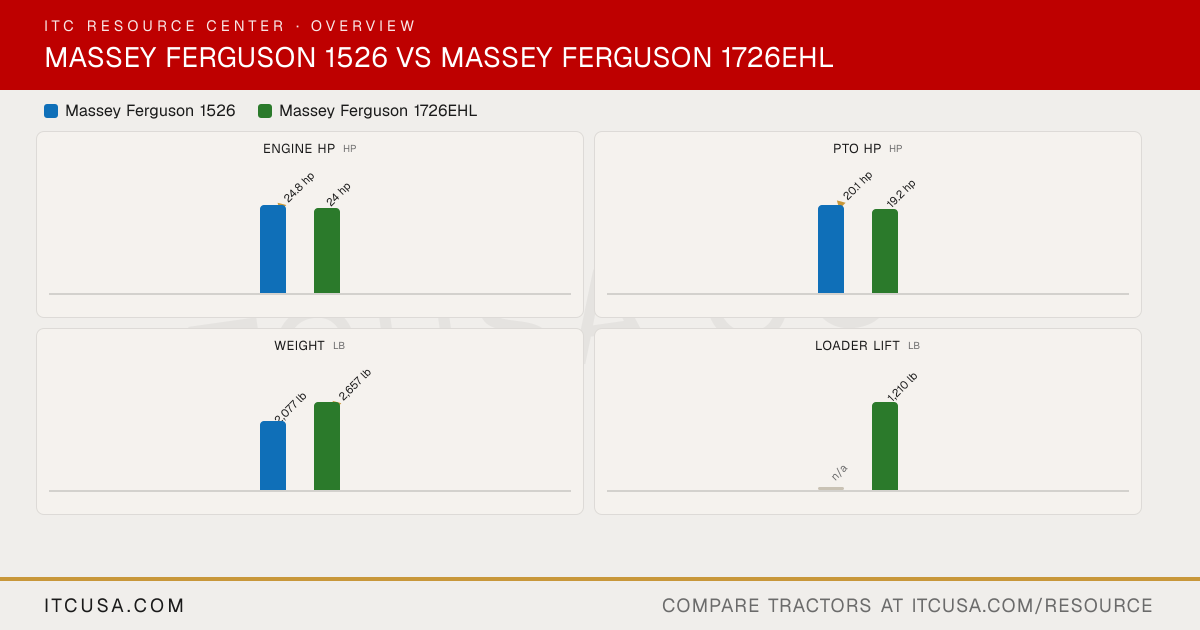

The headline numbers at a glance.

Massey Ferguson 1526Massey Ferguson 1726EHL

Engine HPhp

▲24.8 hp

24 hp

PTO HPhp

▲20.1 hp

19.2 hp

Weightlb

2,077 lb

▲2,657 lb

Loader Liftlb

n/a

1,210 lb

3-Pt Lift (24 in)lb

992 lb

▲1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1526	Massey Ferguson1726EHL


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.4 in³	91.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24.8 hp	24 hp
PTO Power	20.1 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect low-pressure injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Gear-type pump
Implement Flow	5.5 gpm	Not Published
Steering Flow	3.2 gpm	3.8 gpm
Total Hydraulic Flow	8.7 gpm	10.5 gpm
Overall Hydraulic Pump Flow	8.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.5 gpm	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Up to 2

Fuel Tank Capacity	7.1 gal	10.0 gal
Coolant Capacity	Not Published	1.32 gal
Crankcase Capacity	Not Published	1.22 gal
Transmission / Hydraulic System Capacity	Not Published	10.04 gal
Front Axle Fluid Capacity	Not Published	1.48 gal

PTO Type	Independent	Transmission driven
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Independent, 2000 rpm (optional)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,322 lb	2,205 lb
Hitch Lift Capacity (at 24”)	992 lb	1,600 lb
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	Infinite forward and reverse (3-range)	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Gear: dry single disc
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet, multiple disc	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Adjustable mechanical suspension	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	Not Published	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	111 in	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	55.1 in	52.4 in
Wheelbase	61.4 in	65.9 in
Ground Clearance	11.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.1 in	97.6 in
Height to Top of ROPS (folded)	Not Published	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,077 lb	HST: 2,657 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	7-12	Not Published
R1 Agricultural - Rear	35x12.00-16.5 or 9.5-16	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	36x13.50-15	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14-17	Not Published

Quick Attach Loader System	Not Published	L105E: skid steer or pin-type implement attachments
Loader Model	FLx2106	L105E
Loader Lift Height	FLx2106: 83 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	Not Published	L105E: 1,210 lb
Loader Breakout Force	Not Published	L105E: 1,460 lb

Warranty Length & Coverage	Not Published	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1526 vs Massey Ferguson 1726EHL: Quick Answers

Which has more horsepower, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?: The Massey Ferguson 1526 leads on engine hp at 24.8 hp hp, compared to 24 hp hp for the Massey Ferguson 1726EHL.
Which has more PTO horsepower, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?: The Massey Ferguson 1526 leads on pto hp at 20.1 hp hp, compared to 19.2 hp hp for the Massey Ferguson 1726EHL.
Which is heavier, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?: The Massey Ferguson 1726EHL leads on weight at 2,657 lb lb, compared to 2,077 lb lb for the Massey Ferguson 1526.
Which has more three-point hitch lift capacity, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?: The Massey Ferguson 1726EHL leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 992 lb lb for the Massey Ferguson 1526.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1526	Massey Ferguson 1726EHL
Engine HP (hp)	▲ 24.8 hp	24 hp
PTO HP (hp)	▲ 20.1 hp	19.2 hp
Weight (lb)	2,077 lb	▲ 2,657 lb
Loader Lift (lb)	n/a	1,210 lb
3-Pt Lift (24 in) (lb)	992 lb	▲ 1,600 lb
Lift Height (in)	83 in	▲ 95.7 in
Breakout Force (lbf)	n/a	1,460 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.5 gpm

The headline numbers at a glance.

Massey Ferguson 1526Massey Ferguson 1726EHL

Engine HPhp

▲24.8 hp

24 hp

PTO HPhp

▲20.1 hp

19.2 hp

Weightlb

2,077 lb

▲2,657 lb

Loader Liftlb

n/a

1,210 lb

3-Pt Lift (24 in)lb

992 lb

▲1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1526	Massey Ferguson1726EHL


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.4 in³	91.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24.8 hp	24 hp
PTO Power	20.1 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect low-pressure injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Gear-type pump
Implement Flow	5.5 gpm	Not Published
Steering Flow	3.2 gpm	3.8 gpm
Total Hydraulic Flow	8.7 gpm	10.5 gpm
Overall Hydraulic Pump Flow	8.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.5 gpm	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Up to 2

Fuel Tank Capacity	7.1 gal	10.0 gal
Coolant Capacity	Not Published	1.32 gal
Crankcase Capacity	Not Published	1.22 gal
Transmission / Hydraulic System Capacity	Not Published	10.04 gal
Front Axle Fluid Capacity	Not Published	1.48 gal

PTO Type	Independent	Transmission driven
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Independent, 2000 rpm (optional)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,322 lb	2,205 lb
Hitch Lift Capacity (at 24”)	992 lb	1,600 lb
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	Infinite forward and reverse (3-range)	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Gear: dry single disc
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet, multiple disc	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Adjustable mechanical suspension	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	Not Published	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	111 in	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	55.1 in	52.4 in
Wheelbase	61.4 in	65.9 in
Ground Clearance	11.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.1 in	97.6 in
Height to Top of ROPS (folded)	Not Published	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,077 lb	HST: 2,657 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	7-12	Not Published
R1 Agricultural - Rear	35x12.00-16.5 or 9.5-16	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	36x13.50-15	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14-17	Not Published

Quick Attach Loader System	Not Published	L105E: skid steer or pin-type implement attachments
Loader Model	FLx2106	L105E
Loader Lift Height	FLx2106: 83 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	Not Published	L105E: 1,210 lb
Loader Breakout Force	Not Published	L105E: 1,460 lb

Warranty Length & Coverage	Not Published	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1526 vs Massey Ferguson 1726EHL: Quick Answers

Which has more horsepower, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?

The Massey Ferguson 1526 leads on engine hp at 24.8 hp hp, compared to 24 hp hp for the Massey Ferguson 1726EHL.

Which has more PTO horsepower, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?

The Massey Ferguson 1526 leads on pto hp at 20.1 hp hp, compared to 19.2 hp hp for the Massey Ferguson 1726EHL.

Which is heavier, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?

The Massey Ferguson 1726EHL leads on weight at 2,657 lb lb, compared to 2,077 lb lb for the Massey Ferguson 1526.

Which has more three-point hitch lift capacity, the Massey Ferguson 1526 or the Massey Ferguson 1726EHL?

The Massey Ferguson 1726EHL leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 992 lb lb for the Massey Ferguson 1526.
