Bad Boy Tractors 3026 vs Massey Ferguson 1526

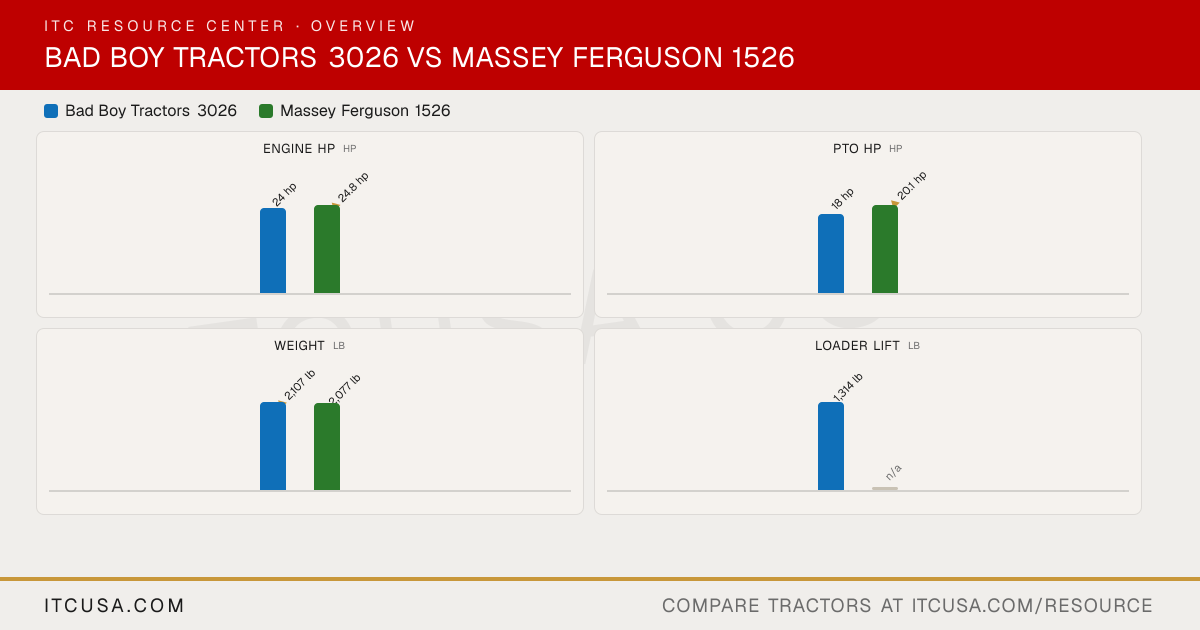

Across 6 measurable specs, the Massey Ferguson 1526 leads 4 categories to 2. Machine pages: Bad Boy Tractors 3026 and Massey Ferguson 1526.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Massey Ferguson1526

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1100N2	Not Published
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	70.7 in³	91.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	24.8 hp
PTO Power	18 hp	20.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	5.5 gpm
Steering Flow	3.1 gpm	3.2 gpm
Total Hydraulic Flow	7.4 gpm	8.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	5.5 gpm
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.1 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Independent, 2000 rpm (optional)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,433 lb	1,322 lb
Hitch Lift Capacity (at 24”)	974 lb	992 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic
No. of Speeds	3 range (L/M/H)	Infinite forward and reverse (3-range)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet, multiple disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Adjustable mechanical suspension
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	111 in
Overall Width	53.9 in	55.1 in
Wheelbase	65.7 in	61.4 in
Ground Clearance	16.4 in	11.6 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	96.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	2,077 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16 6PR	7-12
R1 Agricultural - Rear	11.2-20	35x12.00-16.5 or 9.5-16
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	36x13.50-15
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14-17.5	14-17
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	FLx2106
Loader Lift Height	87.5 in	FLx2106: 83 in
Loader Lift Capacity (Full Height)	1,314 lb	Not Published
Loader Breakout Force	1,960 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Massey Ferguson 1526: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson 1526?

The Massey Ferguson 1526 leads on engine hp at 24.8 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson 1526?

The Massey Ferguson 1526 leads on pto hp at 20.1 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Massey Ferguson 1526?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 2,077 lb lb for the Massey Ferguson 1526.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson 1526?

The Massey Ferguson 1526 leads on 3-pt lift (24 in) at 992 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
