Massey Ferguson 1734E vs Massey Ferguson MF 1E.35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson MF 1E.35 leads 6 categories to 2. Machine pages: Massey Ferguson 1734E and Massey Ferguson MF 1E.35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson MF 1E.35
Engine HP (hp)	34 hp	▲ 34.5 hp
PTO HP (hp)	29 hp	▲ 29.2 hp
Weight (lb)	2,767 lb	▲ 2,943 lb
Loader Lift (lb)	1,210 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,598 lb
Lift Height (in)	▲ 95.7 in	94.3 in
Breakout Force (lbf)	1,460 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 11.4 gpm

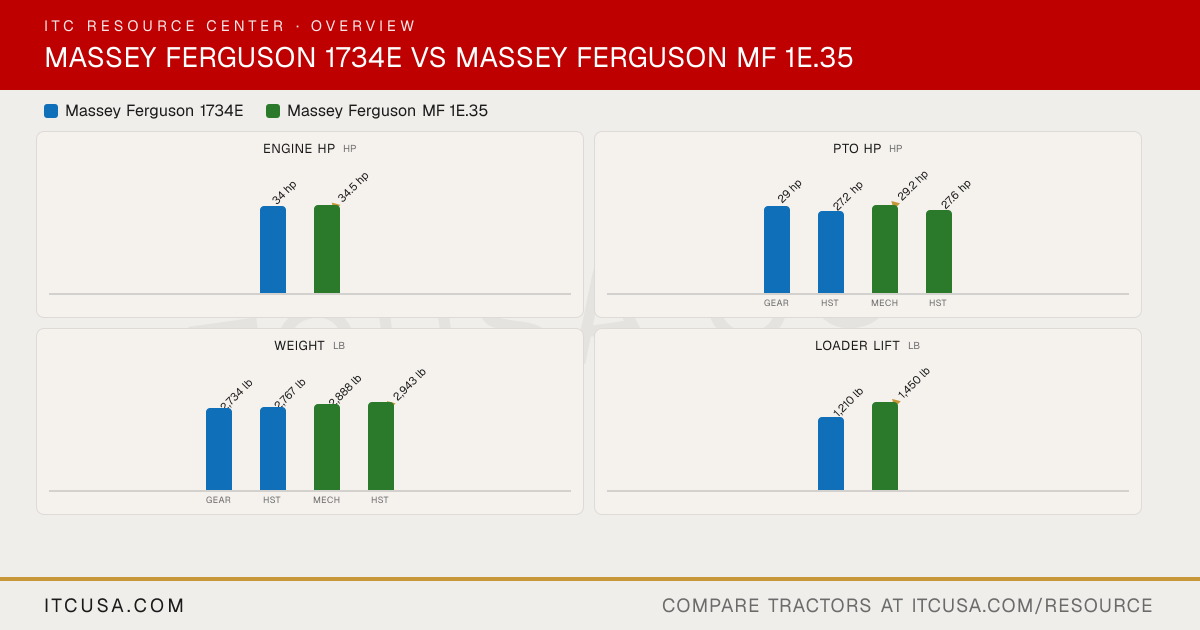

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson MF 1E.35

Engine HPhp

34 hp

▲34.5 hp

PTO HPhp

29 hp

27.2 hp

▲29.2 hp

27.6 hp

GearHSTMechHST

Weightlb

2,734 lb

2,767 lb

2,888 lb

▲2,943 lb

GearHSTMechHST

Loader Liftlb

1,210 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,600 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey FergusonMF 1E.35


Engine Manufacturer	Shibaura	Iseki
Engine Model	Shibaura N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	34.5 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	Mech: 29.2 hp; HST: 27.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Turbocharged, indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Two gear-type pumps
Implement Flow	Not Published	7.6 gpm
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	Not Published	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	10 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Mech: Independent; HST: Transmission
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,598 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Not Published
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.5 in
Overall Width	52.4 in	52.4 in
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	97.6 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	27x8.50-15	Not Published
R3 Turf - Rear	38x14.00-20	Not Published
R4 Industrial - Front	27x8.50-15	Not Published
R4 Industrial - Rear	15x19.5	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Skid steer quick attach
Loader Model	L105E	FL2407X
Loader Lift Height	L105E: 95.7 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	FL2407X: 1,450 lb
Loader Breakout Force	L105E: 1,460 lb	FL2407X: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson MF 1E.35: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on engine hp at 34.5 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.
Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on pto hp at 29.2 hp hp, compared to 29 hp hp for the Massey Ferguson 1734E.
Which is heavier, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on weight at 2,943 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.
Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on loader lift at 1,450 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?: The Massey Ferguson 1734E leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.35.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson MF 1E.35
Engine HP (hp)	34 hp	▲ 34.5 hp
PTO HP (hp)	29 hp	▲ 29.2 hp
Weight (lb)	2,767 lb	▲ 2,943 lb
Loader Lift (lb)	1,210 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,598 lb
Lift Height (in)	▲ 95.7 in	94.3 in
Breakout Force (lbf)	1,460 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 11.4 gpm

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson MF 1E.35

Engine HPhp

34 hp

▲34.5 hp

PTO HPhp

29 hp

27.2 hp

▲29.2 hp

27.6 hp

GearHSTMechHST

Weightlb

2,734 lb

2,767 lb

2,888 lb

▲2,943 lb

GearHSTMechHST

Loader Liftlb

1,210 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,600 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey FergusonMF 1E.35


Engine Manufacturer	Shibaura	Iseki
Engine Model	Shibaura N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	34.5 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	Mech: 29.2 hp; HST: 27.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Turbocharged, indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Two gear-type pumps
Implement Flow	Not Published	7.6 gpm
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	Not Published	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	10 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Mech: Independent; HST: Transmission
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,598 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Not Published
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.5 in
Overall Width	52.4 in	52.4 in
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	97.6 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	27x8.50-15	Not Published
R3 Turf - Rear	38x14.00-20	Not Published
R4 Industrial - Front	27x8.50-15	Not Published
R4 Industrial - Rear	15x19.5	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Skid steer quick attach
Loader Model	L105E	FL2407X
Loader Lift Height	L105E: 95.7 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	FL2407X: 1,450 lb
Loader Breakout Force	L105E: 1,460 lb	FL2407X: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson MF 1E.35: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on engine hp at 34.5 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on pto hp at 29.2 hp hp, compared to 29 hp hp for the Massey Ferguson 1734E.

Which is heavier, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on weight at 2,943 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.

Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on loader lift at 1,450 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson MF 1E.35?

The Massey Ferguson 1734E leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.35.
