Bad Boy Tractors 4035 Cab vs Massey Ferguson 1734E

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 8 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson 1734E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

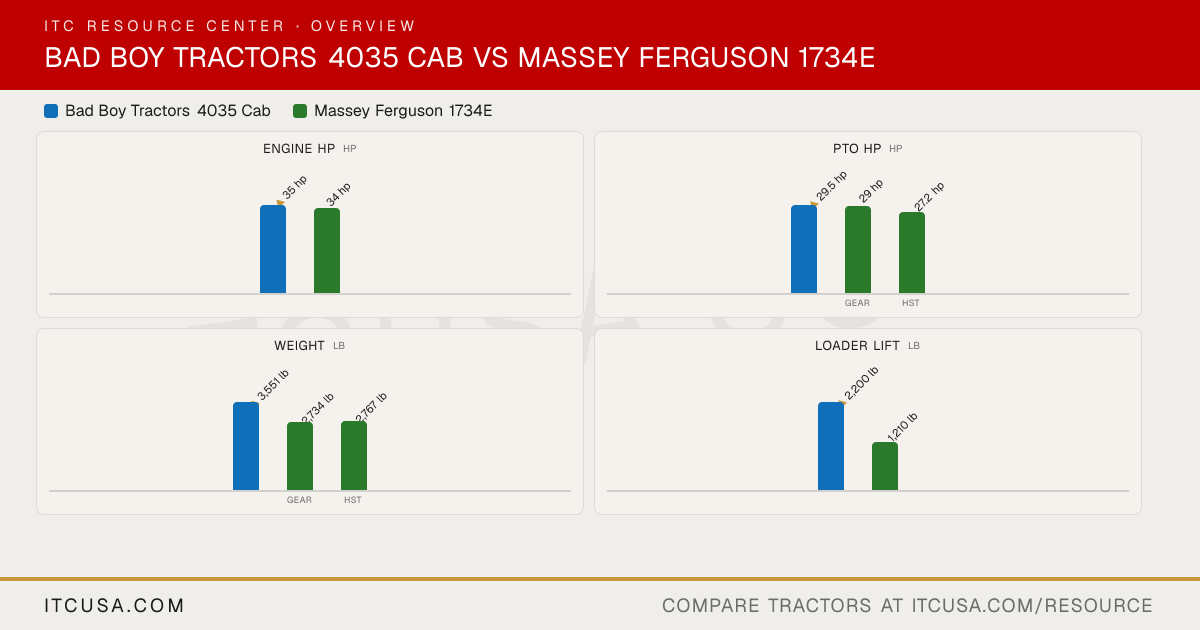

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey Ferguson1734E

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N4-BUTC_4	Shibaura N843T-F
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder diesel, liquid-cooled, turbocharged
No. of Cylinders	3	3
Displacement	104.7 in³	91.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	34 hp
PTO Power	29.5 hp	Gear: 29 hp; HST: 27.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Turbocharged, indirect low-pressure injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear-type pump
Implement Flow	8.2 gpm	Not Published
Steering Flow	4.4 gpm	3.8 gpm
Total Hydraulic Flow	12.6 gpm	10.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Up to 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.0 gal
Coolant Capacity	1.32 gal	1.32 gal
Crankcase Capacity	1.14 gal	1.22 gal
Transmission / Hydraulic System Capacity	9.77 gal	10.04 gal
Front Axle Fluid Capacity	1.69 gal	1.48 gal
▶PTO & Hitch
PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2,205 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,600 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	3 range (HST)	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Gear: dry single disc
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical engagement via heel pedal
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	Selectable 4WD	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	56.3 in	52.4 in
Wheelbase	65.7 in	65.9 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	63.8 in
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	Gear: 2,734 lb; HST: 2,767 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	38x14.00-20
R4 Industrial - Front	28x8.50-15	27x8.50-15
R4 Industrial - Rear	43x16.00-20	15x19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	L105E: skid steer or pin-type implement attachments
Loader Model	BBL400	L105E
Loader Lift Height	104 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	2,200 lb	L105E: 1,210 lb
Loader Breakout Force	3,660 lb	L105E: 1,460 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 Cab vs Massey Ferguson 1734E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1734E?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1734E?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 29 hp hp for the Massey Ferguson 1734E.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1734E?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1734E?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson 1734E?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.
