Massey Ferguson 1734E vs Yanmar YT235

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Yanmar YT235 leads 6 categories to 2. Machine pages: Massey Ferguson 1734E and Yanmar YT235.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1734E	Yanmar YT235
Engine HP (hp)	34 hp	▲ 34.2 hp
PTO HP (hp)	▲ 29 hp	27 hp
Weight (lb)	2,767 lb	▲ 3,471 lb
Loader Lift (lb)	1,210 lb	▲ 1,300 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 1,764 lb
Lift Height (in)	▲ 95.7 in	84 in
Breakout Force (lbf)	1,460 lbf	▲ 2,105 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 11.2 gpm
Travel Speed (mph)	n/a	11.7 mph

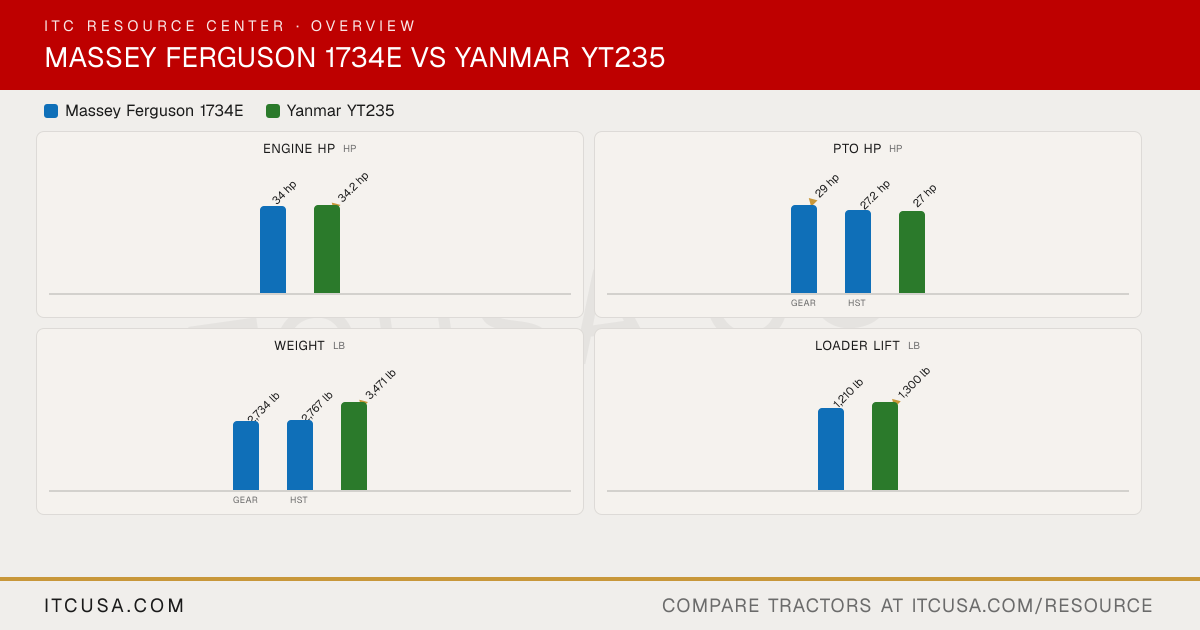

The headline numbers at a glance.

Massey Ferguson 1734EYanmar YT235

Engine HPhp

34 hp

▲34.2 hp

PTO HPhp

▲29 hp

27.2 hp

27 hp

GearHST

Weightlb

2,734 lb

2,767 lb

▲3,471 lb

GearHST

Loader Liftlb

1,210 lb

▲1,300 lb

3-Pt Lift (24 in)lb

1,600 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	YanmarYT235


Engine Manufacturer	Shibaura	YANMAR
Engine Model	Shibaura N843T-F	n/a
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	91.5 in³	100.2 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34 hp	34.2 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	27 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5 in.)
Fuel System	Turbocharged, indirect low-pressure injection	Common rail direct injection
Alternator	Not Published	40 A, 12 V

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	7.1 gpm
Steering Flow	3.8 gpm	4.1 gpm
Total Hydraulic Flow	10.5 gpm	11.2 gpm
Overall Hydraulic Pump Flow	Not Published	11.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	7.4 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Independent (electro-hydraulic)
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,764 lb
Lift Control Type	Not Published	Position control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Hydrostatic (Dual Touch Pedal)
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Unlimited (hydrostatic); 3 ranges
Max Travel Speed (Forward)	Not Published	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	Not Published	8.2 mph (with R4 tires)
Clutch	Gear: dry single disc	N/A (hydrostatic)
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Rear differential lock (foot pedal engagement)

Frame Type	Not Published	Not Published
Steering	Power steering	Fully hydraulic power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Selectable 4WD (2WD/4WD engagement)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.9 in
Overall Width	52.4 in	58.3 in (with R4 tires)
Wheelbase	65.9 in	65 in
Ground Clearance	Not Published	10.8 in (with R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	89.0 in (with R4 tires)
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Applicable

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	n/a
Weight with ROPS and Loader	Not Published	3,471 lb
Weight with Cab and Loader	Not Published	Not Applicable

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	Not Published	6.0-14
R1 Agricultural - Rear	Not Published	9.5-22
R3 Turf - Front	27x8.50-15	25x8.5-14
R3 Turf - Rear	38x14.00-20	13.6x16
R4 Industrial - Front	27x8.50-15	25x8.5-14
R4 Industrial - Rear	15x19.5	15-19.6

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	YL310: Skid steer style bucket attachment
Loader Model	L105E	n/a
Loader Lift Height	L105E: 95.7 in	84 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	1,300 lb
Loader Breakout Force	L105E: 1,460 lb	2,105 lb

Warranty Length & Coverage	5-year powertrain warranty	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Find a dealer near you Find a dealer near you

Massey Ferguson 1734E vs Yanmar YT235: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Yanmar YT235?: The Yanmar YT235 leads on engine hp at 34.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.
Which has more PTO horsepower, the Massey Ferguson 1734E or the Yanmar YT235?: The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 27 hp hp for the Yanmar YT235.
Which is heavier, the Massey Ferguson 1734E or the Yanmar YT235?: The Yanmar YT235 leads on weight at 3,471 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.
Which has more loader lift capacity, the Massey Ferguson 1734E or the Yanmar YT235?: The Yanmar YT235 leads on loader lift at 1,300 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Yanmar YT235?: The Yanmar YT235 leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1734E	Yanmar YT235
Engine HP (hp)	34 hp	▲ 34.2 hp
PTO HP (hp)	▲ 29 hp	27 hp
Weight (lb)	2,767 lb	▲ 3,471 lb
Loader Lift (lb)	1,210 lb	▲ 1,300 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 1,764 lb
Lift Height (in)	▲ 95.7 in	84 in
Breakout Force (lbf)	1,460 lbf	▲ 2,105 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 11.2 gpm
Travel Speed (mph)	n/a	11.7 mph

The headline numbers at a glance.

Massey Ferguson 1734EYanmar YT235

Engine HPhp

34 hp

▲34.2 hp

PTO HPhp

▲29 hp

27.2 hp

27 hp

GearHST

Weightlb

2,734 lb

2,767 lb

▲3,471 lb

GearHST

Loader Liftlb

1,210 lb

▲1,300 lb

3-Pt Lift (24 in)lb

1,600 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	YanmarYT235


Engine Manufacturer	Shibaura	YANMAR
Engine Model	Shibaura N843T-F	n/a
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	91.5 in³	100.2 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34 hp	34.2 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	27 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5 in.)
Fuel System	Turbocharged, indirect low-pressure injection	Common rail direct injection
Alternator	Not Published	40 A, 12 V

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	7.1 gpm
Steering Flow	3.8 gpm	4.1 gpm
Total Hydraulic Flow	10.5 gpm	11.2 gpm
Overall Hydraulic Pump Flow	Not Published	11.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	7.4 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Independent (electro-hydraulic)
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,764 lb
Lift Control Type	Not Published	Position control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Hydrostatic (Dual Touch Pedal)
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Unlimited (hydrostatic); 3 ranges
Max Travel Speed (Forward)	Not Published	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	Not Published	8.2 mph (with R4 tires)
Clutch	Gear: dry single disc	N/A (hydrostatic)
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Rear differential lock (foot pedal engagement)

Frame Type	Not Published	Not Published
Steering	Power steering	Fully hydraulic power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Selectable 4WD (2WD/4WD engagement)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.9 in
Overall Width	52.4 in	58.3 in (with R4 tires)
Wheelbase	65.9 in	65 in
Ground Clearance	Not Published	10.8 in (with R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	89.0 in (with R4 tires)
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Applicable

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	n/a
Weight with ROPS and Loader	Not Published	3,471 lb
Weight with Cab and Loader	Not Published	Not Applicable

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	Not Published	6.0-14
R1 Agricultural - Rear	Not Published	9.5-22
R3 Turf - Front	27x8.50-15	25x8.5-14
R3 Turf - Rear	38x14.00-20	13.6x16
R4 Industrial - Front	27x8.50-15	25x8.5-14
R4 Industrial - Rear	15x19.5	15-19.6

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	YL310: Skid steer style bucket attachment
Loader Model	L105E	n/a
Loader Lift Height	L105E: 95.7 in	84 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	1,300 lb
Loader Breakout Force	L105E: 1,460 lb	2,105 lb

Warranty Length & Coverage	5-year powertrain warranty	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Find a dealer near you Find a dealer near you

Massey Ferguson 1734E vs Yanmar YT235: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Yanmar YT235?

The Yanmar YT235 leads on engine hp at 34.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the Massey Ferguson 1734E or the Yanmar YT235?

The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 27 hp hp for the Yanmar YT235.

Which is heavier, the Massey Ferguson 1734E or the Yanmar YT235?

The Yanmar YT235 leads on weight at 3,471 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.

Which has more loader lift capacity, the Massey Ferguson 1734E or the Yanmar YT235?

The Yanmar YT235 leads on loader lift at 1,300 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Yanmar YT235?

The Yanmar YT235 leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.
