Massey Ferguson 1735E vs Massey Ferguson 1835E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1835E leads 3 categories to 0 (4 tied). Machine pages: Massey Ferguson 1735E and Massey Ferguson 1835E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1735E	Massey Ferguson 1835E
Engine HP (hp)	34.1 hp	▲ 34.5 hp
PTO HP (hp)	29 hp	▲ 29.2 hp
Weight (lb)	n/a	2,877 lb
Loader Lift (lb)	1,450 lb	1,450 lb
3-Pt Lift (24 in) (lb)	1,598 lb	1,598 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	2,288 lbf	2,288 lbf
Hydraulic Flow (gpm)	9.7 gpm	▲ 11.4 gpm

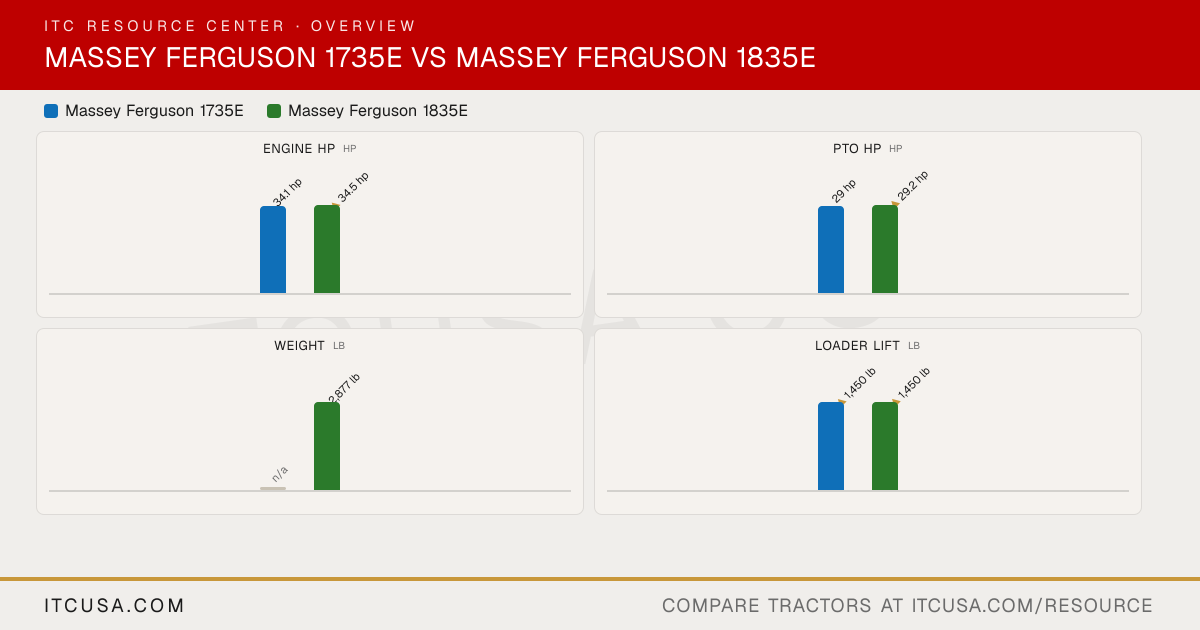

The headline numbers at a glance.

Massey Ferguson 1735EMassey Ferguson 1835E

Engine HPhp

34.1 hp

▲34.5 hp

PTO HPhp

29 hp

▲29.2 hp

Weightlb

n/a

2,877 lb

Loader Liftlb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1735E	Massey Ferguson1835E


Engine Manufacturer	Shibaura	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.3 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34.1 hp	34.5 hp
PTO Power	29 hp	29.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual engine-driven gear pumps	Two gear-type pumps, one for steering and one for 3-point and remotes
Implement Flow	Not Published	7.6 gpm
Steering Flow	Not Published	3.8 gpm
Total Hydraulic Flow	9.7 gpm	11.4 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	Not Published	10.0 gal
Coolant Capacity	Not Published	7.61 qt
Crankcase Capacity	Not Published	5.47 qt
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	6.0 qt

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	1,598 lb	1,598 lb
Lift Control Type	Position control	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	116.5 in
Overall Width	Not Published	52.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	11.0 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Not Published	2,877 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	Not Published
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	27x8.50-15	Not Published
R4 Industrial - Rear	15-19.5	Not Published

Quick Attach Loader System	FLx2407: pin-on (skid steer quick attach optional)	FLx2407: skid steer quick attach
Loader Model	FLx2407	FLx2407
Loader Lift Height	FLx2407: 94.3 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	FLx2407: 1,450 lb
Loader Breakout Force	FLx2407: 2,288 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1735E vs Massey Ferguson 1835E: Quick Answers

Which has more horsepower, the Massey Ferguson 1735E or the Massey Ferguson 1835E?: The Massey Ferguson 1835E leads on engine hp at 34.5 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.
Which has more PTO horsepower, the Massey Ferguson 1735E or the Massey Ferguson 1835E?: The Massey Ferguson 1835E leads on pto hp at 29.2 hp hp, compared to 29 hp hp for the Massey Ferguson 1735E.
Which has more loader lift capacity, the Massey Ferguson 1735E or the Massey Ferguson 1835E?: They are effectively tied: both machines are rated at 1,450 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Massey Ferguson 1735E or the Massey Ferguson 1835E?: They are effectively tied: both machines are rated at 1,598 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1735E	Massey Ferguson 1835E
Engine HP (hp)	34.1 hp	▲ 34.5 hp
PTO HP (hp)	29 hp	▲ 29.2 hp
Weight (lb)	n/a	2,877 lb
Loader Lift (lb)	1,450 lb	1,450 lb
3-Pt Lift (24 in) (lb)	1,598 lb	1,598 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	2,288 lbf	2,288 lbf
Hydraulic Flow (gpm)	9.7 gpm	▲ 11.4 gpm

The headline numbers at a glance.

Massey Ferguson 1735EMassey Ferguson 1835E

Engine HPhp

34.1 hp

▲34.5 hp

PTO HPhp

29 hp

▲29.2 hp

Weightlb

n/a

2,877 lb

Loader Liftlb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1735E	Massey Ferguson1835E


Engine Manufacturer	Shibaura	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.3 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34.1 hp	34.5 hp
PTO Power	29 hp	29.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual engine-driven gear pumps	Two gear-type pumps, one for steering and one for 3-point and remotes
Implement Flow	Not Published	7.6 gpm
Steering Flow	Not Published	3.8 gpm
Total Hydraulic Flow	9.7 gpm	11.4 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	Not Published	10.0 gal
Coolant Capacity	Not Published	7.61 qt
Crankcase Capacity	Not Published	5.47 qt
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	6.0 qt

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	1,598 lb	1,598 lb
Lift Control Type	Position control	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	116.5 in
Overall Width	Not Published	52.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	11.0 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Not Published	2,877 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	Not Published
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	27x8.50-15	Not Published
R4 Industrial - Rear	15-19.5	Not Published

Quick Attach Loader System	FLx2407: pin-on (skid steer quick attach optional)	FLx2407: skid steer quick attach
Loader Model	FLx2407	FLx2407
Loader Lift Height	FLx2407: 94.3 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	FLx2407: 1,450 lb
Loader Breakout Force	FLx2407: 2,288 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1735E vs Massey Ferguson 1835E: Quick Answers

Which has more horsepower, the Massey Ferguson 1735E or the Massey Ferguson 1835E?

The Massey Ferguson 1835E leads on engine hp at 34.5 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.

Which has more PTO horsepower, the Massey Ferguson 1735E or the Massey Ferguson 1835E?

The Massey Ferguson 1835E leads on pto hp at 29.2 hp hp, compared to 29 hp hp for the Massey Ferguson 1735E.

Which has more loader lift capacity, the Massey Ferguson 1735E or the Massey Ferguson 1835E?

They are effectively tied: both machines are rated at 1,450 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Massey Ferguson 1735E or the Massey Ferguson 1835E?

They are effectively tied: both machines are rated at 1,598 lb lb for 3-pt lift (24 in).
