Massey Ferguson 1840E vs Massey Ferguson MF 1M.40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson MF 1M.40 leads 6 categories to 1 (1 tied). Machine pages: Massey Ferguson 1840E and Massey Ferguson MF 1M.40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1840E	Massey Ferguson MF 1M.40
Engine HP (hp)	39.4 hp	39.4 hp
PTO HP (hp)	▲ 33.5 hp	30 hp
Weight (lb)	2,877 lb	▲ 3,858 lb
Loader Lift (lb)	1,450 lb	▲ 1,870 lb
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 2,535 lb
Lift Height (in)	94.3 in	▲ 100 in
Breakout Force (lbf)	2,288 lbf	▲ 2,950 lbf
Hydraulic Flow (gpm)	11.4 gpm	▲ 19.6 gpm

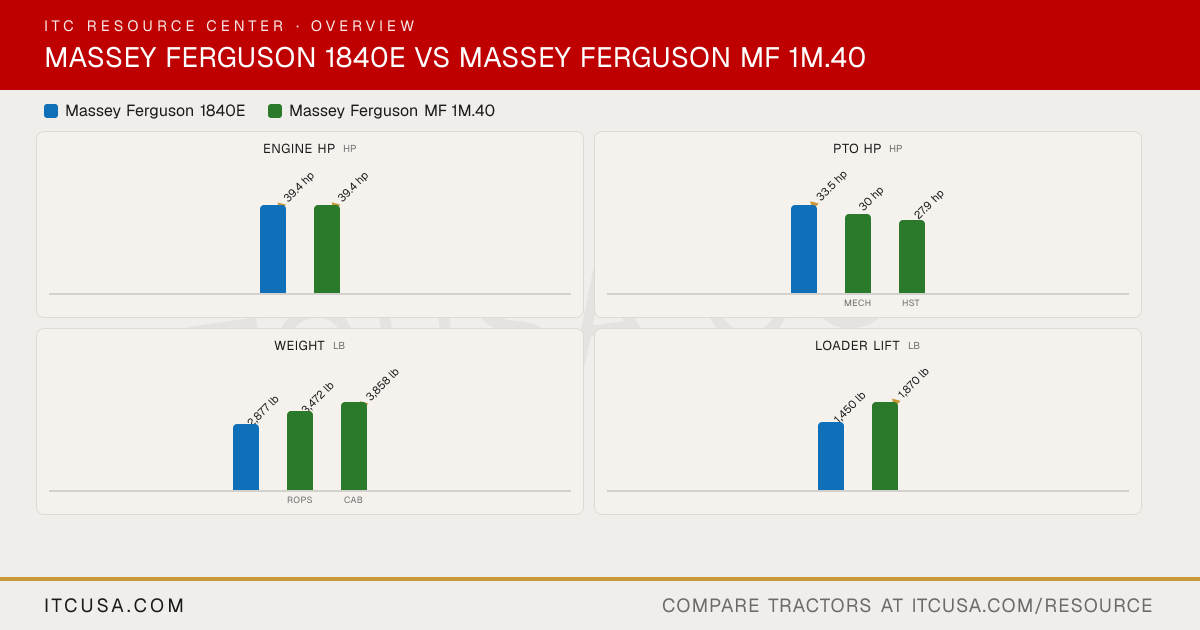

The headline numbers at a glance.

Massey Ferguson 1840EMassey Ferguson MF 1M.40

Engine HPhp

▲39.4 hp

PTO HPhp

▲33.5 hp

30 hp

27.9 hp

MechHST

Weightlb

2,877 lb

3,472 lb

▲3,858 lb

ROPSCab

Loader Liftlb

1,450 lb

▲1,870 lb

3-Pt Lift (24 in)lb

1,598 lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1840E	Massey FergusonMF 1M.40


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	39.4 hp
PTO Power	33.5 hp	Mech: 30 hp; HST: 27.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps, one for steering and one for 3-point and remotes	Two gear-type pumps
Implement Flow	7.6 gpm	12.6 gpm
Steering Flow	3.8 gpm	7.0 gpm
Total Hydraulic Flow	11.4 gpm	19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow	Not Published	19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	10.0 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	Independent with SoftStart electronic modulation
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,800 lb
Hitch Lift Capacity (at 24”)	1,598 lb	2,535 lb
Lift Control Type	Not Published	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.5 in	122.0 in
Overall Width	52.4 in	67.5 in
Wheelbase	Not Published	Not Published
Ground Clearance	11.0 in	14.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	2,877 lb	ROPS: 3,472 lb; Cab: 3,858 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	FLx2407: skid steer quick attach	Skid steer
Loader Model	FLx2407	FL2611
Loader Lift Height	FLx2407: 94.3 in	FL2611: 100 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	FL2611: 1,870 lb
Loader Breakout Force	FLx2407: 2,288 lb	FL2611: 2,950 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1840E vs Massey Ferguson MF 1M.40: Quick Answers

Which has more horsepower, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?: They are effectively tied: both machines are rated at 39.4 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?: The Massey Ferguson 1840E leads on pto hp at 33.5 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.
Which is heavier, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?: The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 2,877 lb lb for the Massey Ferguson 1840E.
Which has more loader lift capacity, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?: The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1840E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?: The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1840E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1840E	Massey Ferguson MF 1M.40
Engine HP (hp)	39.4 hp	39.4 hp
PTO HP (hp)	▲ 33.5 hp	30 hp
Weight (lb)	2,877 lb	▲ 3,858 lb
Loader Lift (lb)	1,450 lb	▲ 1,870 lb
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 2,535 lb
Lift Height (in)	94.3 in	▲ 100 in
Breakout Force (lbf)	2,288 lbf	▲ 2,950 lbf
Hydraulic Flow (gpm)	11.4 gpm	▲ 19.6 gpm

The headline numbers at a glance.

Massey Ferguson 1840EMassey Ferguson MF 1M.40

Engine HPhp

▲39.4 hp

PTO HPhp

▲33.5 hp

30 hp

27.9 hp

MechHST

Weightlb

2,877 lb

3,472 lb

▲3,858 lb

ROPSCab

Loader Liftlb

1,450 lb

▲1,870 lb

3-Pt Lift (24 in)lb

1,598 lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1840E	Massey FergusonMF 1M.40


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	39.4 hp
PTO Power	33.5 hp	Mech: 30 hp; HST: 27.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps, one for steering and one for 3-point and remotes	Two gear-type pumps
Implement Flow	7.6 gpm	12.6 gpm
Steering Flow	3.8 gpm	7.0 gpm
Total Hydraulic Flow	11.4 gpm	19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow	Not Published	19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	10.0 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	Independent with SoftStart electronic modulation
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,800 lb
Hitch Lift Capacity (at 24”)	1,598 lb	2,535 lb
Lift Control Type	Not Published	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.5 in	122.0 in
Overall Width	52.4 in	67.5 in
Wheelbase	Not Published	Not Published
Ground Clearance	11.0 in	14.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	2,877 lb	ROPS: 3,472 lb; Cab: 3,858 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	FLx2407: skid steer quick attach	Skid steer
Loader Model	FLx2407	FL2611
Loader Lift Height	FLx2407: 94.3 in	FL2611: 100 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	FL2611: 1,870 lb
Loader Breakout Force	FLx2407: 2,288 lb	FL2611: 2,950 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1840E vs Massey Ferguson MF 1M.40: Quick Answers

Which has more horsepower, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?

They are effectively tied: both machines are rated at 39.4 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?

The Massey Ferguson 1840E leads on pto hp at 33.5 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.

Which is heavier, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 2,877 lb lb for the Massey Ferguson 1840E.

Which has more loader lift capacity, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1840E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1840E or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1840E.
