Bad Boy Tractors 5045 Cab vs Massey Ferguson MF 1M.40

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 6 categories to 2. Machine pages: Bad Boy Tractors 5045 Cab and Massey Ferguson MF 1M.40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

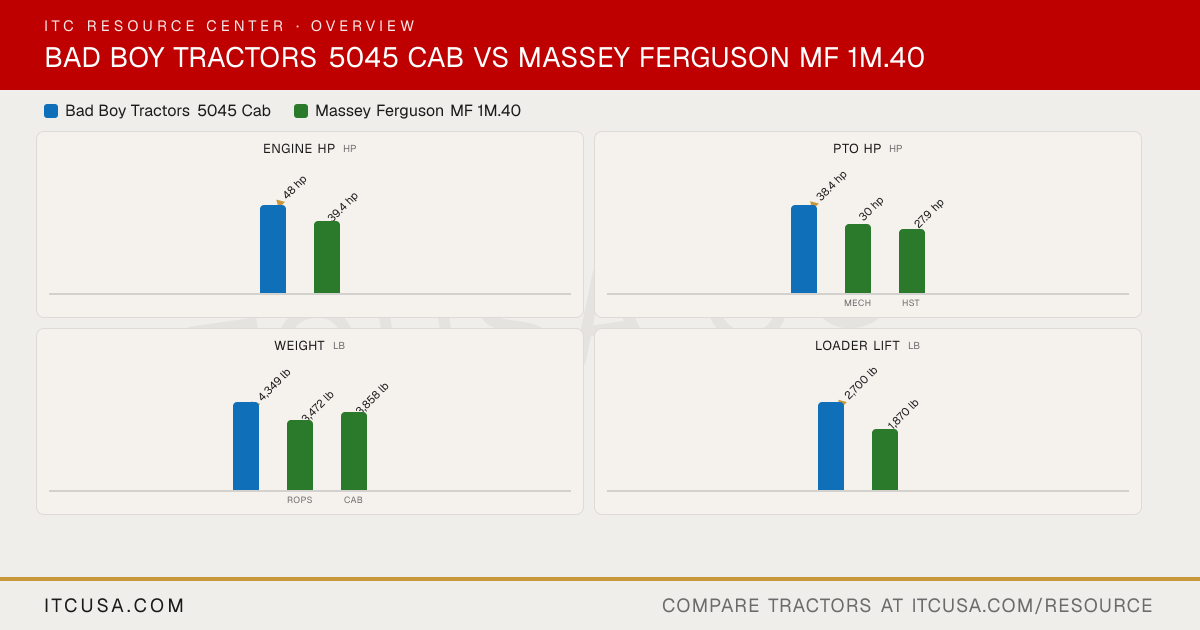

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	Massey FergusonMF 1M.40

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A2300N3	Not Published
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	139.5 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	39.4 hp
PTO Power	38.4 hp	Mech: 30 hp; HST: 27.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Not Published
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Two gear-type pumps
Implement Flow	10.7 gpm	12.6 gpm
Steering Flow	5 gpm	7.0 gpm
Total Hydraulic Flow	15.7 gpm	19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow	15.7 gpm	19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	10.6 gal
Coolant Capacity	1.56 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent with SoftStart electronic modulation
PTO Rear	540 / 540E rpm	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306 lb	2,800 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,535 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
No. of Speeds	4 range (HST)	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	122.0 in
Overall Width	64.9 in	67.5 in
Wheelbase	71.1 in	Not Published
Ground Clearance	15.5 in	14.4 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	Not Published	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	91.3 in
▶Weight
Tractor Weight (Base)	4,349 lb	ROPS: 3,472 lb; Cab: 3,858 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Not Published
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-26	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid steer
Loader Model	BBL500	FL2611
Loader Lift Height	106.6 in	FL2611: 100 in
Loader Lift Capacity (Full Height)	2,700 lb	FL2611: 1,870 lb
Loader Breakout Force	3,660 lb	FL2611: 2,950 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 5045 Cab vs Massey Ferguson MF 1M.40: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson MF 1M.40?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 39.4 hp hp for the Massey Ferguson MF 1M.40.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson MF 1M.40?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Massey Ferguson MF 1M.40?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,858 lb lb for the Massey Ferguson MF 1M.40.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson MF 1M.40?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,870 lb lb for the Massey Ferguson MF 1M.40.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
