Massey Ferguson MF 1M.40 vs Massey Ferguson MF 1E.40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson MF 1M.40 leads 6 categories to 1 (1 tied). Machine pages: Massey Ferguson MF 1M.40 and Massey Ferguson MF 1E.40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1M.40	Massey Ferguson MF 1E.40
Engine HP (hp)	39.4 hp	39.4 hp
PTO HP (hp)	30 hp	▲ 33.5 hp
Weight (lb)	▲ 3,858 lb	2,943 lb
Loader Lift (lb)	▲ 1,870 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,535 lb	1,598 lb
Lift Height (in)	▲ 100 in	94.3 in
Breakout Force (lbf)	▲ 2,950 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 19.6 gpm	11.4 gpm

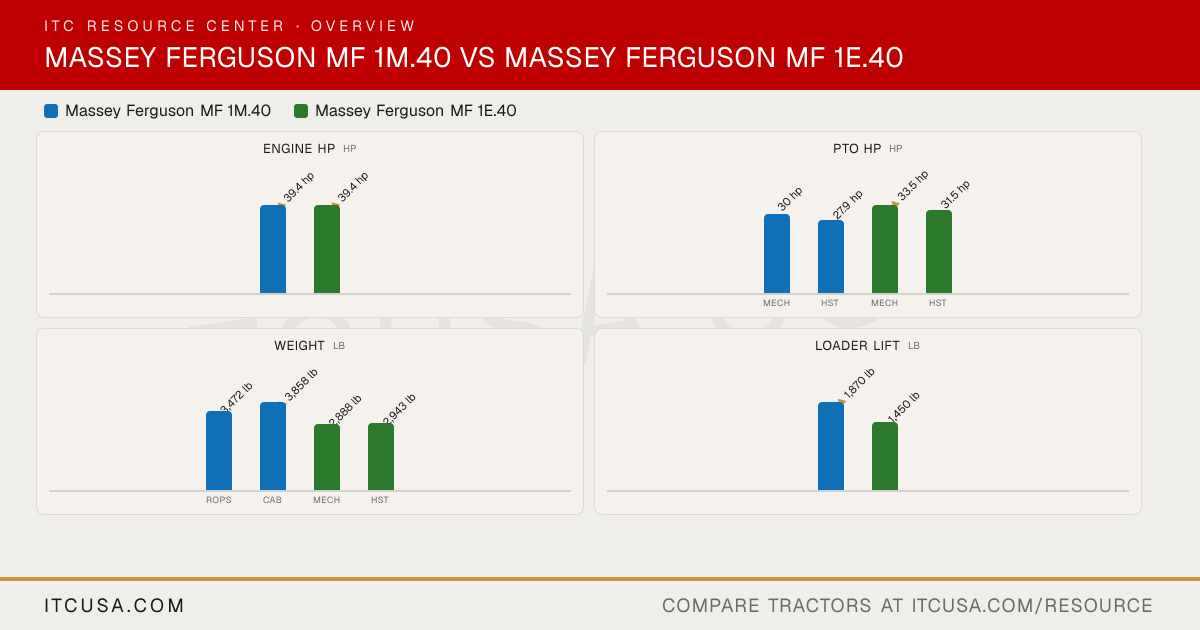

The headline numbers at a glance.

Massey Ferguson MF 1M.40Massey Ferguson MF 1E.40

Engine HPhp

▲39.4 hp

PTO HPhp

30 hp

27.9 hp

▲33.5 hp

31.5 hp

MechHSTMechHST

Weightlb

3,472 lb

▲3,858 lb

2,888 lb

2,943 lb

ROPSCabMechHST

Loader Liftlb

▲1,870 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,535 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1M.40	Massey FergusonMF 1E.40


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	39.4 hp
PTO Power	Mech: 30 hp; HST: 27.9 hp	Mech: 33.5 hp; HST: 31.5 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps	Two gear-type pumps
Implement Flow	12.6 gpm	7.6 gpm
Steering Flow	7.0 gpm	3.8 gpm
Total Hydraulic Flow	19.6 gpm (12.6 + 7.0, computed)	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	19.6 gpm (12.6 + 7.0, computed)	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	10.6 gal	10 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent with SoftStart electronic modulation	Mech: Independent; HST: Transmission
PTO Rear	540 rpm, 1.375 in	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	2,205 lb
Hitch Lift Capacity (at 24”)	2,535 lb	1,598 lb
Lift Control Type	Not Published	Not Published

Transmission Type	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.0 in	116.5 in
Overall Width	67.5 in	52.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	14.4 in	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	99.2 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	91.3 in	Not Published

Tractor Weight (Base)	ROPS: 3,472 lb; Cab: 3,858 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Skid steer	Skid steer quick attach
Loader Model	FL2611	FL2407X
Loader Lift Height	FL2611: 100 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	FL2611: 1,870 lb	FL2407X: 1,450 lb
Loader Breakout Force	FL2611: 2,950 lb	FL2407X: 2,288 lb

Warranty Length & Coverage	Not Published	Not Published

Find a dealer near you

Massey Ferguson MF 1M.40 vs Massey Ferguson MF 1E.40: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?: They are effectively tied: both machines are rated at 39.4 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?: The Massey Ferguson MF 1E.40 leads on pto hp at 33.5 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.
Which is heavier, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?: The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 2,943 lb lb for the Massey Ferguson MF 1E.40.
Which has more loader lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?: The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,450 lb lb for the Massey Ferguson MF 1E.40.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?: The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.40.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson MF 1M.40	Massey Ferguson MF 1E.40
Engine HP (hp)	39.4 hp	39.4 hp
PTO HP (hp)	30 hp	▲ 33.5 hp
Weight (lb)	▲ 3,858 lb	2,943 lb
Loader Lift (lb)	▲ 1,870 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,535 lb	1,598 lb
Lift Height (in)	▲ 100 in	94.3 in
Breakout Force (lbf)	▲ 2,950 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 19.6 gpm	11.4 gpm

The headline numbers at a glance.

Massey Ferguson MF 1M.40Massey Ferguson MF 1E.40

Engine HPhp

▲39.4 hp

PTO HPhp

30 hp

27.9 hp

▲33.5 hp

31.5 hp

MechHSTMechHST

Weightlb

3,472 lb

▲3,858 lb

2,888 lb

2,943 lb

ROPSCabMechHST

Loader Liftlb

▲1,870 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,535 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1M.40	Massey FergusonMF 1E.40


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	39.4 hp
PTO Power	Mech: 30 hp; HST: 27.9 hp	Mech: 33.5 hp; HST: 31.5 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps	Two gear-type pumps
Implement Flow	12.6 gpm	7.6 gpm
Steering Flow	7.0 gpm	3.8 gpm
Total Hydraulic Flow	19.6 gpm (12.6 + 7.0, computed)	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	19.6 gpm (12.6 + 7.0, computed)	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	10.6 gal	10 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent with SoftStart electronic modulation	Mech: Independent; HST: Transmission
PTO Rear	540 rpm, 1.375 in	540 rpm, 1.375 in
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	2,205 lb
Hitch Lift Capacity (at 24”)	2,535 lb	1,598 lb
Lift Control Type	Not Published	Not Published

Transmission Type	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.0 in	116.5 in
Overall Width	67.5 in	52.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	14.4 in	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	99.2 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	91.3 in	Not Published

Tractor Weight (Base)	ROPS: 3,472 lb; Cab: 3,858 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Skid steer	Skid steer quick attach
Loader Model	FL2611	FL2407X
Loader Lift Height	FL2611: 100 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	FL2611: 1,870 lb	FL2407X: 1,450 lb
Loader Breakout Force	FL2611: 2,950 lb	FL2407X: 2,288 lb

Warranty Length & Coverage	Not Published	Not Published

Find a dealer near you

Massey Ferguson MF 1M.40 vs Massey Ferguson MF 1E.40: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?

They are effectively tied: both machines are rated at 39.4 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?

The Massey Ferguson MF 1E.40 leads on pto hp at 33.5 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.

Which is heavier, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?

The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 2,943 lb lb for the Massey Ferguson MF 1E.40.

Which has more loader lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?

The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,450 lb lb for the Massey Ferguson MF 1E.40.

Which has more three-point hitch lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson MF 1E.40?

The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.40.
