Massey Ferguson 2605H vs Massey Ferguson 1755M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 2605H leads 7 categories to 1. Machine pages: Massey Ferguson 2605H and Massey Ferguson 1755M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 2605H	Massey Ferguson 1755M
Engine HP (hp)	▲ 55 hp	53.9 hp
PTO HP (hp)	▲ 46 hp	41.3 hp
Weight (lb)	▲ 5,394 lb	3,968 lb
Loader Lift (lb)	▲ 2,810 lb	2,610 lb
3-Pt Lift (24 in) (lb)	2,755 lb	▲ 3,086 lb
Lift Height (in)	▲ 114 in	111 in
Breakout Force (lbf)	▲ 4,240 lbf	4,000 lbf
Hydraulic Flow (gpm)	▲ 15.7 gpm	12.6 gpm

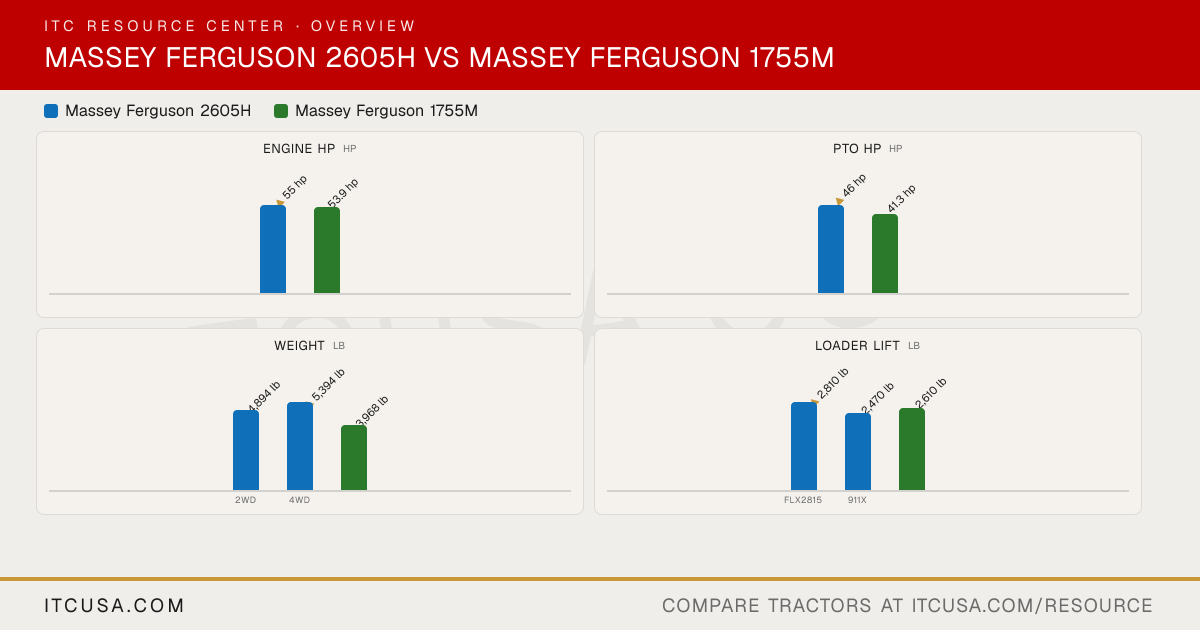

The headline numbers at a glance.

Massey Ferguson 2605HMassey Ferguson 1755M

Engine HPhp

▲55 hp

53.9 hp

PTO HPhp

▲46 hp

41.3 hp

Weightlb

4,894 lb

▲5,394 lb

3,968 lb

2WD4WD

Loader Liftlb

▲2,810 lb

2,470 lb

2,610 lb

FLx2815911X

3-Pt Lift (24 in)lb

2,755 lb

▲3,086 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson2605H	Massey Ferguson1755M


Engine Manufacturer	Simpson	Shibaura
Engine Model	SJV326	Shibaura N4LDI-TA
Engine Type	3-cylinder, turbocharged, intercooled, liquid-cooled diesel	4-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	4
Displacement	157.9 in³	135.2 in³
Rated Engine Speed	2000 rpm	2600 rpm
Engine Power (Gross)	55 hp	53.9 hp
PTO Power	46 hp	41.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Electronically controlled high-pressure common rail	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Mark 1A scotch yoke piston pump	Engine-driven gear-type pump
Implement Flow	Not Published	12.7 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	10.6 gpm	12.1 gpm
No. of Standard Remote Valves	1	2
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	14.5 gal	14.0 gal
Coolant Capacity	4 gal	7.08 qt
Crankcase Capacity	2.5 gal	6.87 qt
Transmission / Hydraulic System Capacity	10.5 gal	12x12 Power Shuttle: 10.04 gal; HST: 9.25 gal
Front Axle Fluid Capacity	4WD: 1.5 gal differential, plus 0.23 gal per wheel end	9.0 qt

PTO Type	2WD: Live; 4WD: Independent	Independent, with soft-start feature
PTO Rear	540 rpm, 6-spline	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I and II	Category I with extendable ball ends
Hitch Lift Capacity	4,519 lb	3,483 lb
Hitch Lift Capacity (at 24”)	2,755 lb	3,086 lb
Lift Control Type	Draft, position and response control	Position and draft control

Transmission Type	2WD: 8F x 2R SideShift sliding gear; 4WD: 8F x 8R synchro shuttle	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	2WD: 8 forward and 2 reverse; 4WD: 8 forward and 8 reverse	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	2WD: dual stage dry; 4WD: split torque	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement via right-side heel pedal	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering with separate reservoir	Power steering
Brakes	Oil-immersed wet disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	ReverseRise adjustable seat with fixed steering column	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	2WD: straight, telescopically adjustable; 4WD: heavy-duty planetary reduction	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	2WD: 138 in; 4WD: 139 in	132.3 in
Overall Width	66.5 in	65.4 in
Wheelbase	2WD: 80.7 in; 4WD: 81.5 in	77.9 in
Ground Clearance	Not Published	14.8 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.3 in	102.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.9 in

Tractor Weight (Base)	2WD: 4,894 lb; 4WD: 5,394 lb	12x12 Power Shuttle: 3,968 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	2WD standard (ag): 6.00x16 front, 13.6x28 rear; 2WD optional (ag): 7.5x16 front, 16.6x28 rear; 4WD standard (ag): 9.5x24 front, 14.9x28 rear; 4WD industrial: 10.5/80-18 front with 14.9x24 rear, or 12.5/80-18 front with 16.9x24 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	2WD: 6.00x16 (7.5x16 optional); 4WD: 9.5x24	9.5x16
R1 Agricultural - Rear	2WD: 13.6x28 (16.6x28 optional); 4WD: 14.9x28	13.6x28
R3 Turf - Front	Not Published	27x10.50-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	4WD: 10.5/80-18 or 12.5/80-18	10-16.5
R4 Industrial - Rear	4WD: 14.9x24 or 16.9x24	17.5L-24

Quick Attach Loader System	Skid steer style coupling	DL135: Skid steer quick attach
Loader Model	FLx2815 (2WD); 911X (4WD)	DL135
Loader Lift Height	FLx2815: 111 in; 911X: 114 in	DL135: 111 in
Loader Lift Capacity (Full Height)	FLx2815: 2,810 lb; 911X: 2,470 lb	DL135: 2,610 lb
Loader Breakout Force	FLx2815: 4,240 lb; 911X: 2,755 lb	DL135: 4,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 2605H vs Massey Ferguson 1755M: Quick Answers

Which has more horsepower, the Massey Ferguson 2605H or the Massey Ferguson 1755M?: The Massey Ferguson 2605H leads on engine hp at 55 hp hp, compared to 53.9 hp hp for the Massey Ferguson 1755M.
Which has more PTO horsepower, the Massey Ferguson 2605H or the Massey Ferguson 1755M?: The Massey Ferguson 2605H leads on pto hp at 46 hp hp, compared to 41.3 hp hp for the Massey Ferguson 1755M.
Which is heavier, the Massey Ferguson 2605H or the Massey Ferguson 1755M?: The Massey Ferguson 2605H leads on weight at 5,394 lb lb, compared to 3,968 lb lb for the Massey Ferguson 1755M.
Which has more loader lift capacity, the Massey Ferguson 2605H or the Massey Ferguson 1755M?: The Massey Ferguson 2605H leads on loader lift at 2,810 lb lb, compared to 2,610 lb lb for the Massey Ferguson 1755M.
Which has more three-point hitch lift capacity, the Massey Ferguson 2605H or the Massey Ferguson 1755M?: The Massey Ferguson 1755M leads on 3-pt lift (24 in) at 3,086 lb lb, compared to 2,755 lb lb for the Massey Ferguson 2605H.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 2605H	Massey Ferguson 1755M
Engine HP (hp)	▲ 55 hp	53.9 hp
PTO HP (hp)	▲ 46 hp	41.3 hp
Weight (lb)	▲ 5,394 lb	3,968 lb
Loader Lift (lb)	▲ 2,810 lb	2,610 lb
3-Pt Lift (24 in) (lb)	2,755 lb	▲ 3,086 lb
Lift Height (in)	▲ 114 in	111 in
Breakout Force (lbf)	▲ 4,240 lbf	4,000 lbf
Hydraulic Flow (gpm)	▲ 15.7 gpm	12.6 gpm

The headline numbers at a glance.

Massey Ferguson 2605HMassey Ferguson 1755M

Engine HPhp

▲55 hp

53.9 hp

PTO HPhp

▲46 hp

41.3 hp

Weightlb

4,894 lb

▲5,394 lb

3,968 lb

2WD4WD

Loader Liftlb

▲2,810 lb

2,470 lb

2,610 lb

FLx2815911X

3-Pt Lift (24 in)lb

2,755 lb

▲3,086 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson2605H	Massey Ferguson1755M


Engine Manufacturer	Simpson	Shibaura
Engine Model	SJV326	Shibaura N4LDI-TA
Engine Type	3-cylinder, turbocharged, intercooled, liquid-cooled diesel	4-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	4
Displacement	157.9 in³	135.2 in³
Rated Engine Speed	2000 rpm	2600 rpm
Engine Power (Gross)	55 hp	53.9 hp
PTO Power	46 hp	41.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Electronically controlled high-pressure common rail	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Mark 1A scotch yoke piston pump	Engine-driven gear-type pump
Implement Flow	Not Published	12.7 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	10.6 gpm	12.1 gpm
No. of Standard Remote Valves	1	2
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	14.5 gal	14.0 gal
Coolant Capacity	4 gal	7.08 qt
Crankcase Capacity	2.5 gal	6.87 qt
Transmission / Hydraulic System Capacity	10.5 gal	12x12 Power Shuttle: 10.04 gal; HST: 9.25 gal
Front Axle Fluid Capacity	4WD: 1.5 gal differential, plus 0.23 gal per wheel end	9.0 qt

PTO Type	2WD: Live; 4WD: Independent	Independent, with soft-start feature
PTO Rear	540 rpm, 6-spline	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I and II	Category I with extendable ball ends
Hitch Lift Capacity	4,519 lb	3,483 lb
Hitch Lift Capacity (at 24”)	2,755 lb	3,086 lb
Lift Control Type	Draft, position and response control	Position and draft control

Transmission Type	2WD: 8F x 2R SideShift sliding gear; 4WD: 8F x 8R synchro shuttle	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	2WD: 8 forward and 2 reverse; 4WD: 8 forward and 8 reverse	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	2WD: dual stage dry; 4WD: split torque	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement via right-side heel pedal	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering with separate reservoir	Power steering
Brakes	Oil-immersed wet disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	ReverseRise adjustable seat with fixed steering column	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	2WD: straight, telescopically adjustable; 4WD: heavy-duty planetary reduction	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	2WD: 138 in; 4WD: 139 in	132.3 in
Overall Width	66.5 in	65.4 in
Wheelbase	2WD: 80.7 in; 4WD: 81.5 in	77.9 in
Ground Clearance	Not Published	14.8 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.3 in	102.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.9 in

Tractor Weight (Base)	2WD: 4,894 lb; 4WD: 5,394 lb	12x12 Power Shuttle: 3,968 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	2WD standard (ag): 6.00x16 front, 13.6x28 rear; 2WD optional (ag): 7.5x16 front, 16.6x28 rear; 4WD standard (ag): 9.5x24 front, 14.9x28 rear; 4WD industrial: 10.5/80-18 front with 14.9x24 rear, or 12.5/80-18 front with 16.9x24 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	2WD: 6.00x16 (7.5x16 optional); 4WD: 9.5x24	9.5x16
R1 Agricultural - Rear	2WD: 13.6x28 (16.6x28 optional); 4WD: 14.9x28	13.6x28
R3 Turf - Front	Not Published	27x10.50-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	4WD: 10.5/80-18 or 12.5/80-18	10-16.5
R4 Industrial - Rear	4WD: 14.9x24 or 16.9x24	17.5L-24

Quick Attach Loader System	Skid steer style coupling	DL135: Skid steer quick attach
Loader Model	FLx2815 (2WD); 911X (4WD)	DL135
Loader Lift Height	FLx2815: 111 in; 911X: 114 in	DL135: 111 in
Loader Lift Capacity (Full Height)	FLx2815: 2,810 lb; 911X: 2,470 lb	DL135: 2,610 lb
Loader Breakout Force	FLx2815: 4,240 lb; 911X: 2,755 lb	DL135: 4,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 2605H vs Massey Ferguson 1755M: Quick Answers

Which has more horsepower, the Massey Ferguson 2605H or the Massey Ferguson 1755M?

The Massey Ferguson 2605H leads on engine hp at 55 hp hp, compared to 53.9 hp hp for the Massey Ferguson 1755M.

Which has more PTO horsepower, the Massey Ferguson 2605H or the Massey Ferguson 1755M?

The Massey Ferguson 2605H leads on pto hp at 46 hp hp, compared to 41.3 hp hp for the Massey Ferguson 1755M.

Which is heavier, the Massey Ferguson 2605H or the Massey Ferguson 1755M?

The Massey Ferguson 2605H leads on weight at 5,394 lb lb, compared to 3,968 lb lb for the Massey Ferguson 1755M.

Which has more loader lift capacity, the Massey Ferguson 2605H or the Massey Ferguson 1755M?

The Massey Ferguson 2605H leads on loader lift at 2,810 lb lb, compared to 2,610 lb lb for the Massey Ferguson 1755M.

Which has more three-point hitch lift capacity, the Massey Ferguson 2605H or the Massey Ferguson 1755M?

The Massey Ferguson 1755M leads on 3-pt lift (24 in) at 3,086 lb lb, compared to 2,755 lb lb for the Massey Ferguson 2605H.
