Massey Ferguson 2705E vs Massey Ferguson 1750M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 1750M leads 6 categories to 1 (1 tied). Machine pages: Massey Ferguson 2705E and Massey Ferguson 1750M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 2705E	Massey Ferguson 1750M
Engine HP (hp)	48.8 hp	48.8 hp
PTO HP (hp)	▲ 41.4 hp	38.1 hp
Weight (lb)	3,880 lb	▲ 4,045 lb
Loader Lift (lb)	2,430 lb	▲ 2,610 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,086 lb
Lift Height (in)	110.2 in	▲ 111 in
Breakout Force (lbf)	2,870 lbf	▲ 4,000 lbf
Hydraulic Flow (gpm)	12.4 gpm	▲ 12.6 gpm

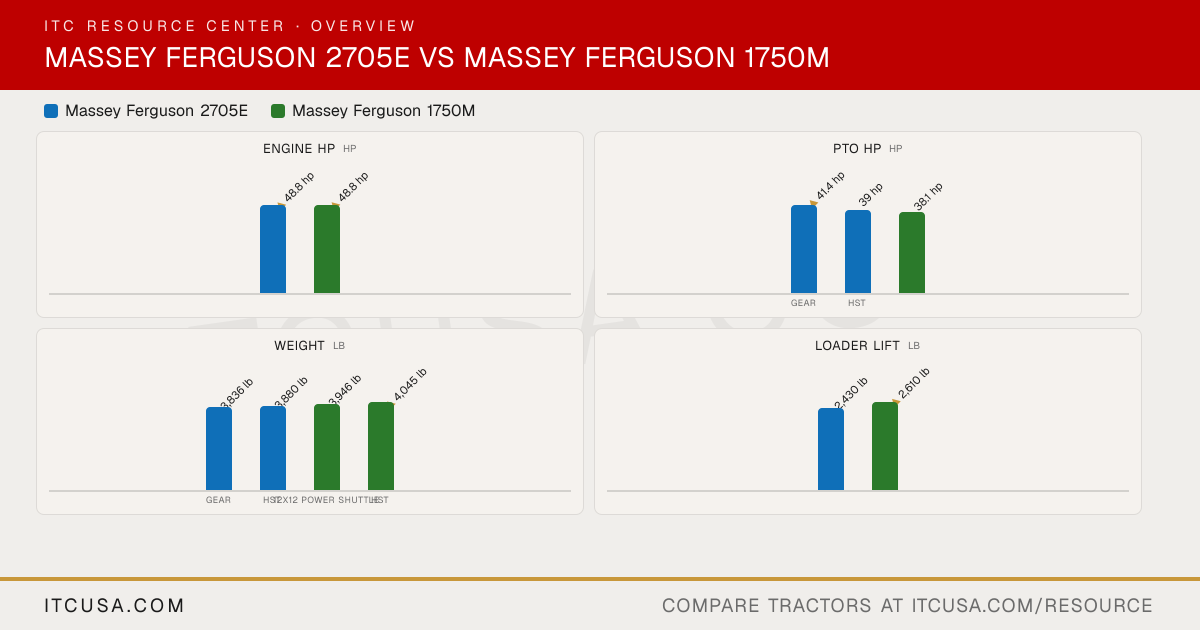

The headline numbers at a glance.

Massey Ferguson 2705EMassey Ferguson 1750M

Engine HPhp

▲48.8 hp

PTO HPhp

▲41.4 hp

39 hp

38.1 hp

GearHST

Weightlb

3,836 lb

3,880 lb

3,946 lb

▲4,045 lb

GearHST12x12 Power ShuttleHST

Loader Liftlb

2,430 lb

▲2,610 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,086 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson2705E	Massey Ferguson1750M


Engine Manufacturer	Shibaura	Shibaura
Engine Model	N4LDI-T	Shibaura N4LDI-T
Engine Type	4-cylinder, turbocharged, liquid-cooled diesel	4-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	4	4
Displacement	135.2 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.8 hp	48.8 hp
PTO Power	Gear: 41.4 hp; HST: 39 hp	38.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Primary and secondary elements	Dry
Fuel System	Electronically controlled high-pressure common rail	Common rail direct injection
Alternator	90 A	Not Published

Pump Type	Gear-type single pump	Engine-driven gear-type pump
Implement Flow	Not Published	12.7 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	12.4 gpm	Not Published
Overall Hydraulic Pump Flow	12.4 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	0	2
No. of Optional Remote Valves	1 factory-installed; up to 3 field-installed	Up to 3

Fuel Tank Capacity	14 gal	14.0 gal
Coolant Capacity	1.66 gal	7.08 qt
Crankcase Capacity	1.53 gal	6.87 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 10.04 gal; HST: 9.25 gal
Front Axle Fluid Capacity	2.21 gal	9.0 qt

PTO Type	Independent, electro-hydraulically engaged	Independent, with soft-start feature
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	No mid-PTO	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I and II	Category I with extendable ball ends
Hitch Lift Capacity	Not Published	3,483 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,086 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single-disc	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal)	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet disc, 2 pedals (Gear: right hand; HST: left hand)	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	132.3 in
Overall Width	74 in	65.4 in
Wheelbase	78 in	77.9 in
Ground Clearance	Not Published	14.8 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	104 in	102.4 in
Height to Top of ROPS (folded)	80 in	Not Published
Height to Top of Cab Model	Not Published	92.9 in

Tractor Weight (Base)	Gear: 3,836 lb; HST: 3,880 lb	12x12 Power Shuttle: 3,946 lb; HST: 4,045 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5x16	9.5x16
R1 Agricultural - Rear	13.6x28; 16.9x24	13.6x28
R3 Turf - Front	27x10.50-15	27x10.50-15
R3 Turf - Rear	44x18.00-20	44x18.00-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24

Quick Attach Loader System	L135E: optional skid steer tool carrier	DL135: Skid steer quick attach
Loader Model	L135E	DL135
Loader Lift Height	L135E: 110.2 in	DL135: 111 in
Loader Lift Capacity (Full Height)	L135E: 2,430 lb	DL135: 2,610 lb
Loader Breakout Force	L135E: 2,870 lb	DL135: 4,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 2705E vs Massey Ferguson 1750M: Quick Answers

Which has more horsepower, the Massey Ferguson 2705E or the Massey Ferguson 1750M?: They are effectively tied: both machines are rated at 48.8 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson 2705E or the Massey Ferguson 1750M?: The Massey Ferguson 2705E leads on pto hp at 41.4 hp hp, compared to 38.1 hp hp for the Massey Ferguson 1750M.
Which is heavier, the Massey Ferguson 2705E or the Massey Ferguson 1750M?: The Massey Ferguson 1750M leads on weight at 4,045 lb lb, compared to 3,880 lb lb for the Massey Ferguson 2705E.
Which has more loader lift capacity, the Massey Ferguson 2705E or the Massey Ferguson 1750M?: The Massey Ferguson 1750M leads on loader lift at 2,610 lb lb, compared to 2,430 lb lb for the Massey Ferguson 2705E.
Which has more three-point hitch lift capacity, the Massey Ferguson 2705E or the Massey Ferguson 1750M?: The Massey Ferguson 1750M leads on 3-pt lift (24 in) at 3,086 lb lb, compared to 2,425 lb lb for the Massey Ferguson 2705E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 2705E	Massey Ferguson 1750M
Engine HP (hp)	48.8 hp	48.8 hp
PTO HP (hp)	▲ 41.4 hp	38.1 hp
Weight (lb)	3,880 lb	▲ 4,045 lb
Loader Lift (lb)	2,430 lb	▲ 2,610 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,086 lb
Lift Height (in)	110.2 in	▲ 111 in
Breakout Force (lbf)	2,870 lbf	▲ 4,000 lbf
Hydraulic Flow (gpm)	12.4 gpm	▲ 12.6 gpm

The headline numbers at a glance.

Massey Ferguson 2705EMassey Ferguson 1750M

Engine HPhp

▲48.8 hp

PTO HPhp

▲41.4 hp

39 hp

38.1 hp

GearHST

Weightlb

3,836 lb

3,880 lb

3,946 lb

▲4,045 lb

GearHST12x12 Power ShuttleHST

Loader Liftlb

2,430 lb

▲2,610 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,086 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson2705E	Massey Ferguson1750M


Engine Manufacturer	Shibaura	Shibaura
Engine Model	N4LDI-T	Shibaura N4LDI-T
Engine Type	4-cylinder, turbocharged, liquid-cooled diesel	4-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	4	4
Displacement	135.2 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.8 hp	48.8 hp
PTO Power	Gear: 41.4 hp; HST: 39 hp	38.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Primary and secondary elements	Dry
Fuel System	Electronically controlled high-pressure common rail	Common rail direct injection
Alternator	90 A	Not Published

Pump Type	Gear-type single pump	Engine-driven gear-type pump
Implement Flow	Not Published	12.7 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	12.4 gpm	Not Published
Overall Hydraulic Pump Flow	12.4 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	0	2
No. of Optional Remote Valves	1 factory-installed; up to 3 field-installed	Up to 3

Fuel Tank Capacity	14 gal	14.0 gal
Coolant Capacity	1.66 gal	7.08 qt
Crankcase Capacity	1.53 gal	6.87 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 10.04 gal; HST: 9.25 gal
Front Axle Fluid Capacity	2.21 gal	9.0 qt

PTO Type	Independent, electro-hydraulically engaged	Independent, with soft-start feature
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	No mid-PTO	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I and II	Category I with extendable ball ends
Hitch Lift Capacity	Not Published	3,483 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,086 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single-disc	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal)	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet disc, 2 pedals (Gear: right hand; HST: left hand)	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	132.3 in
Overall Width	74 in	65.4 in
Wheelbase	78 in	77.9 in
Ground Clearance	Not Published	14.8 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	104 in	102.4 in
Height to Top of ROPS (folded)	80 in	Not Published
Height to Top of Cab Model	Not Published	92.9 in

Tractor Weight (Base)	Gear: 3,836 lb; HST: 3,880 lb	12x12 Power Shuttle: 3,946 lb; HST: 4,045 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5x16	9.5x16
R1 Agricultural - Rear	13.6x28; 16.9x24	13.6x28
R3 Turf - Front	27x10.50-15	27x10.50-15
R3 Turf - Rear	44x18.00-20	44x18.00-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24

Quick Attach Loader System	L135E: optional skid steer tool carrier	DL135: Skid steer quick attach
Loader Model	L135E	DL135
Loader Lift Height	L135E: 110.2 in	DL135: 111 in
Loader Lift Capacity (Full Height)	L135E: 2,430 lb	DL135: 2,610 lb
Loader Breakout Force	L135E: 2,870 lb	DL135: 4,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 2705E vs Massey Ferguson 1750M: Quick Answers

Which has more horsepower, the Massey Ferguson 2705E or the Massey Ferguson 1750M?

They are effectively tied: both machines are rated at 48.8 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson 2705E or the Massey Ferguson 1750M?

The Massey Ferguson 2705E leads on pto hp at 41.4 hp hp, compared to 38.1 hp hp for the Massey Ferguson 1750M.

Which is heavier, the Massey Ferguson 2705E or the Massey Ferguson 1750M?

The Massey Ferguson 1750M leads on weight at 4,045 lb lb, compared to 3,880 lb lb for the Massey Ferguson 2705E.

Which has more loader lift capacity, the Massey Ferguson 2705E or the Massey Ferguson 1750M?

The Massey Ferguson 1750M leads on loader lift at 2,610 lb lb, compared to 2,430 lb lb for the Massey Ferguson 2705E.

Which has more three-point hitch lift capacity, the Massey Ferguson 2705E or the Massey Ferguson 1750M?

The Massey Ferguson 1750M leads on 3-pt lift (24 in) at 3,086 lb lb, compared to 2,425 lb lb for the Massey Ferguson 2705E.
