Massey Ferguson GC1705 vs Massey Ferguson GC1723E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson GC1723E leads 4 categories to 2 (2 tied). Machine pages: Massey Ferguson GC1705 and Massey Ferguson GC1723E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson GC1705	Massey Ferguson GC1723E
Engine HP (hp)	22.5 hp	22.5 hp
PTO HP (hp)	▲ 18.7 hp	18.3 hp
Weight (lb)	1,433 lb	▲ 1,521 lb
Loader Lift (lb)	870 lb	▲ 940 lb
3-Pt Lift (24 in) (lb)	▲ 1,190 lb	661 lb
Lift Height (in)	72.8 in	▲ 74 in
Breakout Force (lbf)	920 lbf	▲ 1,460 lbf
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	9.1 mph	n/a

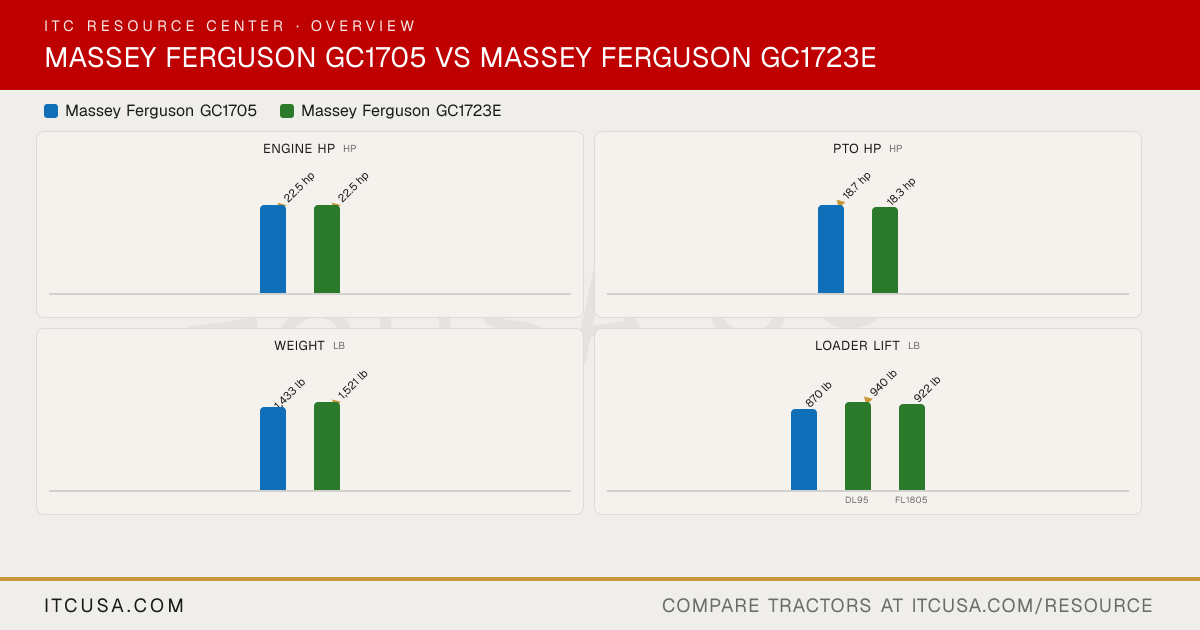

The headline numbers at a glance.

Massey Ferguson GC1705Massey Ferguson GC1723E

Engine HPhp

▲22.5 hp

PTO HPhp

▲18.7 hp

18.3 hp

Weightlb

1,433 lb

▲1,521 lb

Loader Liftlb

870 lb

▲940 lb

922 lb

DL95FL1805

3-Pt Lift (24 in)lb

▲1,190 lb

661 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonGC1705	Massey FergusonGC1723E


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	E3112
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22.5 hp	22.5 hp
PTO Power	18.7 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A

Pump Type	Not Published	Not Published
Implement Flow	4.3 gpm	4.3 gpm
Steering Flow	2 gpm	2.0 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	1.23 gal
Crankcase Capacity	Not Published	0.68 gal
Transmission / Hydraulic System Capacity	Not Published	2.9 gal
Front Axle Fluid Capacity	Not Published	1.05 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm (1.375 in, six spline)
Mid-PTO Availability	Independent, 2000 rpm	Independent, 2000 rpm (1 in, fifteen spline)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,190 lb	1,191 lb
Hitch Lift Capacity (at 24”)	Not Published	661 lb
Lift Control Type	Rate of drop control (standard)	Not Published

Transmission Type	2-range hydrostatic with side-by-side foot pedals and cruise control	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	Infinite forward and reverse (2-range hydrostatic)	Infinite forward and reverse (2-range hydrostatic)
Max Travel Speed (Forward)	9.1 mph (with R1 tires)	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Locking rear differential (4WD)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Coil spring seat; retractable seat belt	Not Published
Front Axle Type	4WD front axle	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97.6 in	97.6 in
Overall Width	47.25 in	46.7 in
Wheelbase	57.1 in	57.1 in
Ground Clearance	6.7 in	6.7 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	72.8 in	72.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,521 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12	AG, Turf or R4 Industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	18x8.50-10	18x8.50-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	DL95: pin-on (factory or dealer installation)	DL95: pin-on (skid steer quick attach optional); FL1805: skid steer quick attach standard
Loader Model	DL95	DL95; FL1805
Loader Lift Height	DL95: 72.8 in	DL95: 73 in; FL1805: 74 in
Loader Lift Capacity (Full Height)	DL95: 870 lb	DL95: 940 lb; FL1805: 922 lb
Loader Breakout Force	DL95: 920 lb	DL95: 1,460 lb; FL1805: 1,392 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson GC1705 vs Massey Ferguson GC1723E: Quick Answers

Which has more horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?: They are effectively tied: both machines are rated at 22.5 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?: The Massey Ferguson GC1705 leads on pto hp at 18.7 hp hp, compared to 18.3 hp hp for the Massey Ferguson GC1723E.
Which is heavier, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?: The Massey Ferguson GC1723E leads on weight at 1,521 lb lb, compared to 1,433 lb lb for the Massey Ferguson GC1705.
Which has more loader lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?: The Massey Ferguson GC1723E leads on loader lift at 940 lb lb, compared to 870 lb lb for the Massey Ferguson GC1705.
Which has more three-point hitch lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?: The Massey Ferguson GC1705 leads on 3-pt lift (24 in) at 1,190 lb lb, compared to 661 lb lb for the Massey Ferguson GC1723E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson GC1705	Massey Ferguson GC1723E
Engine HP (hp)	22.5 hp	22.5 hp
PTO HP (hp)	▲ 18.7 hp	18.3 hp
Weight (lb)	1,433 lb	▲ 1,521 lb
Loader Lift (lb)	870 lb	▲ 940 lb
3-Pt Lift (24 in) (lb)	▲ 1,190 lb	661 lb
Lift Height (in)	72.8 in	▲ 74 in
Breakout Force (lbf)	920 lbf	▲ 1,460 lbf
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	9.1 mph	n/a

The headline numbers at a glance.

Massey Ferguson GC1705Massey Ferguson GC1723E

Engine HPhp

▲22.5 hp

PTO HPhp

▲18.7 hp

18.3 hp

Weightlb

1,433 lb

▲1,521 lb

Loader Liftlb

870 lb

▲940 lb

922 lb

DL95FL1805

3-Pt Lift (24 in)lb

▲1,190 lb

661 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonGC1705	Massey FergusonGC1723E


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	E3112
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22.5 hp	22.5 hp
PTO Power	18.7 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A

Pump Type	Not Published	Not Published
Implement Flow	4.3 gpm	4.3 gpm
Steering Flow	2 gpm	2.0 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	1.23 gal
Crankcase Capacity	Not Published	0.68 gal
Transmission / Hydraulic System Capacity	Not Published	2.9 gal
Front Axle Fluid Capacity	Not Published	1.05 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm (1.375 in, six spline)
Mid-PTO Availability	Independent, 2000 rpm	Independent, 2000 rpm (1 in, fifteen spline)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,190 lb	1,191 lb
Hitch Lift Capacity (at 24”)	Not Published	661 lb
Lift Control Type	Rate of drop control (standard)	Not Published

Transmission Type	2-range hydrostatic with side-by-side foot pedals and cruise control	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	Infinite forward and reverse (2-range hydrostatic)	Infinite forward and reverse (2-range hydrostatic)
Max Travel Speed (Forward)	9.1 mph (with R1 tires)	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Locking rear differential (4WD)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Coil spring seat; retractable seat belt	Not Published
Front Axle Type	4WD front axle	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97.6 in	97.6 in
Overall Width	47.25 in	46.7 in
Wheelbase	57.1 in	57.1 in
Ground Clearance	6.7 in	6.7 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	72.8 in	72.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,521 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12	AG, Turf or R4 Industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	18x8.50-10	18x8.50-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	DL95: pin-on (factory or dealer installation)	DL95: pin-on (skid steer quick attach optional); FL1805: skid steer quick attach standard
Loader Model	DL95	DL95; FL1805
Loader Lift Height	DL95: 72.8 in	DL95: 73 in; FL1805: 74 in
Loader Lift Capacity (Full Height)	DL95: 870 lb	DL95: 940 lb; FL1805: 922 lb
Loader Breakout Force	DL95: 920 lb	DL95: 1,460 lb; FL1805: 1,392 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson GC1705 vs Massey Ferguson GC1723E: Quick Answers

Which has more horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?

They are effectively tied: both machines are rated at 22.5 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?

The Massey Ferguson GC1705 leads on pto hp at 18.7 hp hp, compared to 18.3 hp hp for the Massey Ferguson GC1723E.

Which is heavier, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?

The Massey Ferguson GC1723E leads on weight at 1,521 lb lb, compared to 1,433 lb lb for the Massey Ferguson GC1705.

Which has more loader lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?

The Massey Ferguson GC1723E leads on loader lift at 940 lb lb, compared to 870 lb lb for the Massey Ferguson GC1705.

Which has more three-point hitch lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1723E?

The Massey Ferguson GC1705 leads on 3-pt lift (24 in) at 1,190 lb lb, compared to 661 lb lb for the Massey Ferguson GC1723E.
