Bad Boy Tractors 3026 vs Massey Ferguson GC1723E

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 7 categories to 1. Machine pages: Bad Boy Tractors 3026 and Massey Ferguson GC1723E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

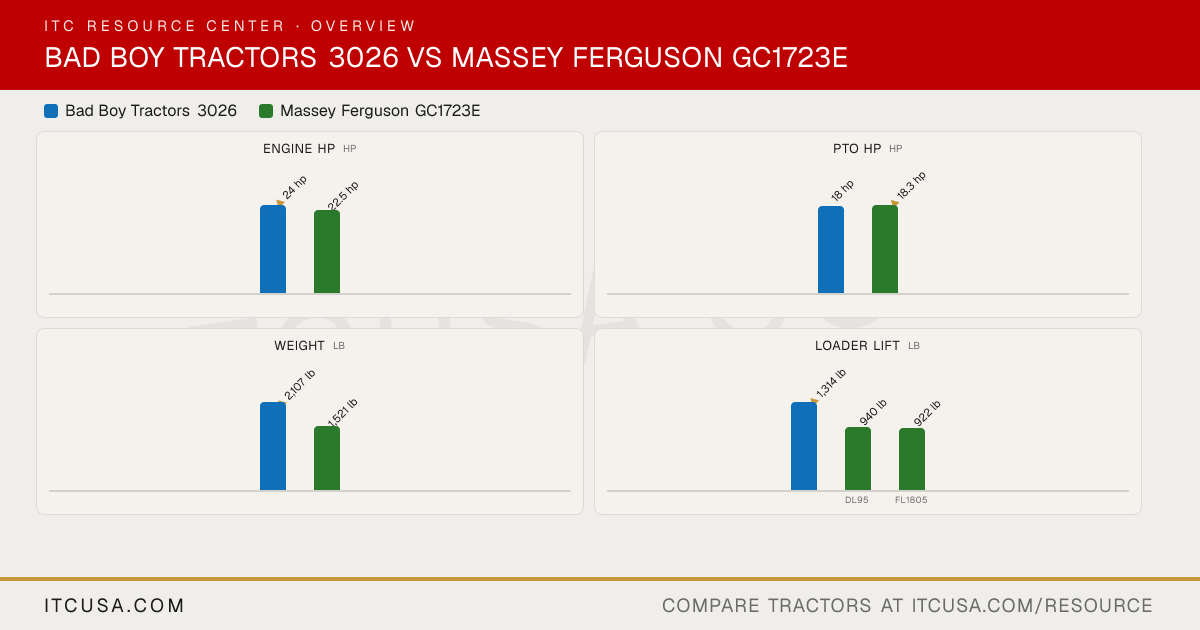

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Massey FergusonGC1723E

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1100N2	E3112
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	70.7 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	22.5 hp
PTO Power	18 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	Indirect injection
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	4.3 gpm
Steering Flow	3.1 gpm	2.0 gpm
Total Hydraulic Flow	7.4 gpm	6.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.6 gal
Coolant Capacity	1.21 gal	1.23 gal
Crankcase Capacity	0.79 gal	0.68 gal
Transmission / Hydraulic System Capacity	2.90 gal	2.9 gal
Front Axle Fluid Capacity	0.79 gal	1.05 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm (1.375 in, six spline)
Mid-PTO Availability	Optional, 2,500 rpm	Independent, 2000 rpm (1 in, fifteen spline)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,191 lb
Hitch Lift Capacity (at 24”)	974 lb	661 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	3 range (L/M/H)	Infinite forward and reverse (2-range hydrostatic)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Locking rear differential (4WD)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	97.6 in
Overall Width	53.9 in	46.7 in
Wheelbase	65.7 in	57.1 in
Ground Clearance	16.4 in	6.7 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	72.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,521 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	AG, Turf or R4 Industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	7-16 6PR	18x8.50-10
R1 Agricultural - Rear	11.2-20	26x12.00-12
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12.00-12
R4 Industrial - Front	25x8.50-14	18x8.50-10
R4 Industrial - Rear	14-17.5	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	DL95: pin-on (skid steer quick attach optional); FL1805: skid steer quick attach standard
Loader Model	BBL300	DL95; FL1805
Loader Lift Height	87.5 in	DL95: 73 in; FL1805: 74 in
Loader Lift Capacity (Full Height)	1,314 lb	DL95: 940 lb; FL1805: 922 lb
Loader Breakout Force	1,960 lbf	DL95: 1,460 lb; FL1805: 1,392 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Massey Ferguson GC1723E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson GC1723E?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 22.5 hp hp for the Massey Ferguson GC1723E.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson GC1723E?

The Massey Ferguson GC1723E leads on pto hp at 18.3 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Massey Ferguson GC1723E?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,521 lb lb for the Massey Ferguson GC1723E.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson GC1723E?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 940 lb lb for the Massey Ferguson GC1723E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson GC1723E?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 661 lb lb for the Massey Ferguson GC1723E.
