Massey Ferguson MF 1525 vs Massey Ferguson MF 1735 M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Massey Ferguson MF 1735 M leads 2 categories to 0 (1 tied). Machine pages: Massey Ferguson MF 1525 and Massey Ferguson MF 1735 M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1525	Massey Ferguson MF 1735 M
Engine HP (hp)	25 hp	▲ 35 hp
3-Pt Lift (24 in) (lb)	2,646 lb	2,646 lb
Hydraulic Flow (gpm)	8.7 gpm	▲ 11 gpm

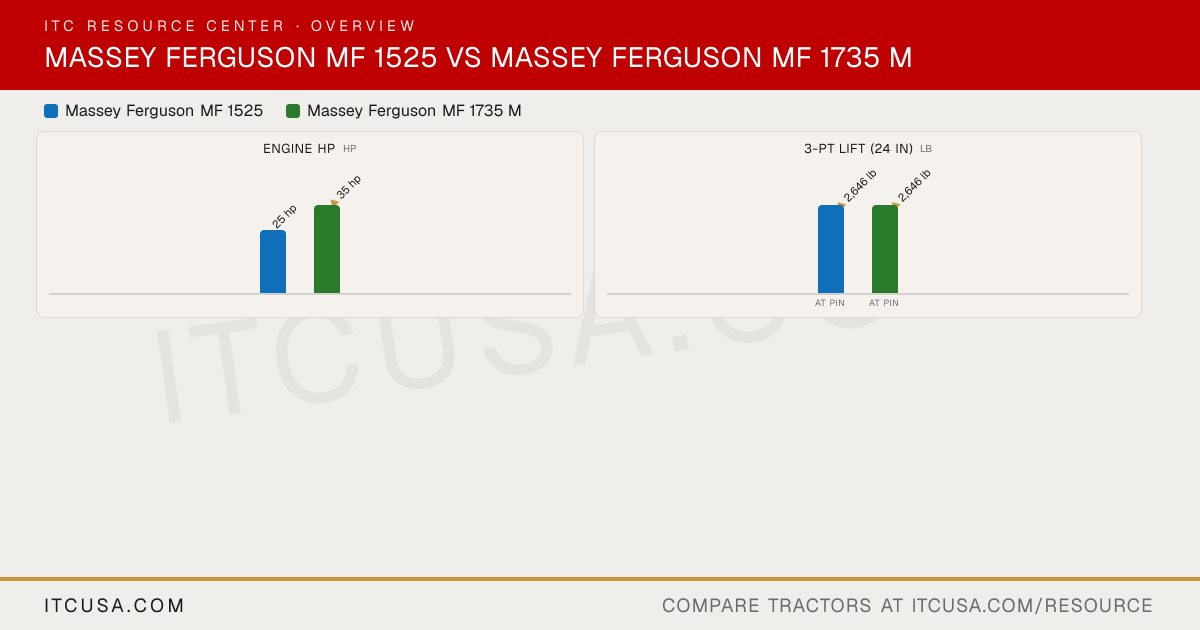

The headline numbers at a glance.

Massey Ferguson MF 1525Massey Ferguson MF 1735 M

Engine HPhp

25 hp

▲35 hp

PTO HPhp

—

Weightlb

—

Loader Liftlb

—

3-Pt Lift (24 in)lb

▲2,646 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1525	Massey FergusonMF 1735 M


PTO Power	Not Published	Not Published
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder diesel	3-cylinder turbocharged diesel
Fuel System	Not Published	Not Published
Displacement	91.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Massey Ferguson (AGCO)	Massey Ferguson (AGCO)
Engine Power (Gross)	25 hp	35 hp
Engine Emissions Constraints	Not Published	Stage V

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	3.2 gpm	Not Published
Implement Flow	5.5 gpm	11.0 gpm
Total Hydraulic Flow	8.7 gpm	Not Published
Hydraulic System Type	Not Published	Open-centre
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.7 gpm	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	2

PTO Rear	540 rpm / 750 rpm (540E)	540/750 (540E) rpm
PTO Type	Electro-hydraulic	Not Published
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	2,646 lb	2,646 lb
Mid-PTO Availability	Standard	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	Not Published	Not Published

R3 Turf - Rear	315/80D-16	315/80D-16
R3 Turf - Front	24X8.5-12	24X8.50-12
Tire Size & Options	R1 Agricultural, R3 Turf	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Applicable	13.6-16
R4 Industrial - Front	Not Applicable	21X10.50-12
R1 Agricultural - Rear	9.5-18	9.5-24
R1 Agricultural - Front	6.0-12	7-14

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	9.5 gal	9.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Not Published	Not Published
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Not Published	Not Published

Clutch	Not Applicable	Not Applicable
No. of Speeds	3 ranges	Not Published
Transmission Type	Hydrostatic	Hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	66.9 in	CAB: 66.7 in; ROPS: 76.0 in
Overall Width	43.3 in	CAB: 55.7 in; ROPS: 53.9 in
Ground Clearance	10.8 in	Not Published
Height to Top of ROPS	Not Applicable	96.7 in
Height to Top of Cab Model	95.3 in	85.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	115.6 in	CAB: 121.7 in; ROPS: 135.0 in

Massey Ferguson MF 1525 vs Massey Ferguson MF 1735 M: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1735 M?: The Massey Ferguson MF 1735 M leads on engine hp at 35 hp hp, compared to 25 hp hp for the Massey Ferguson MF 1525.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1735 M?: They are effectively tied: both machines are rated at 2,646 lb lb for 3-pt lift (24 in).
