Massey Ferguson MF 1740 M vs Massey Ferguson MF 1755 E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Massey Ferguson MF 1740 M, 1 to the Massey Ferguson MF 1755 E, 1 tied. Machine pages: Massey Ferguson MF 1740 M and Massey Ferguson MF 1755 E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1740 M	Massey Ferguson MF 1755 E
Engine HP (hp)	40 hp	▲ 54 hp
3-Pt Lift (24 in) (lb)	2,646 lb	2,646 lb
Hydraulic Flow (gpm)	▲ 11 gpm	8.5 gpm

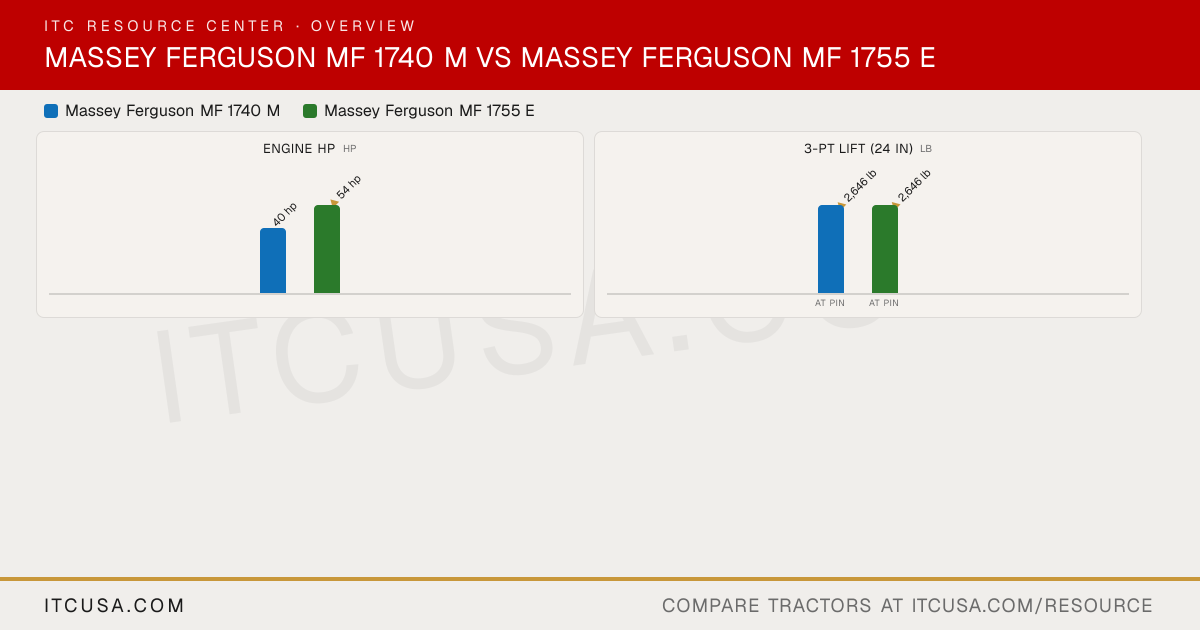

The headline numbers at a glance.

Massey Ferguson MF 1740 MMassey Ferguson MF 1755 E

Engine HPhp

40 hp

▲54 hp

PTO HPhp

—

Weightlb

—

Loader Liftlb

—

3-Pt Lift (24 in)lb

▲2,646 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1740 M	Massey FergusonMF 1755 E


PTO Power	Not Published	Not Published
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel	4-cylinder turbocharged diesel
Fuel System	Not Published	Not Published
Displacement	111.4 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2500 rpm	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Massey Ferguson (AGCO)	Massey Ferguson (AGCO)
Engine Power (Gross)	40 hp	54 hp
Engine Emissions Constraints	Stage V	Stage V

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	11.0 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	Not Published
Hydraulic System Type	Open-centre	Open-centre
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	Up to 2

PTO Rear	540/750 (540E) rpm	540 rpm
PTO Type	Not Published	Independent
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	2,646 lb	2,646 lb
Mid-PTO Availability	Standard	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	Not Published	Not Published

R3 Turf - Rear	315/80D-16	420/70R24
R3 Turf - Front	24X8.50-12	280/70R16
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf
R4 Industrial - Rear	13.6-16	Not Applicable
R4 Industrial - Front	21X10.50-12	Not Applicable
R1 Agricultural - Rear	9.5-24	13.6R28
R1 Agricultural - Front	7-14	9.5R16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	9.5 gal	14.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Not Published	Not Published
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Not Published	Not Published

Clutch	Not Applicable	Not Published
No. of Speeds	Not Published	12F / 12R
Transmission Type	Hydrostatic	Mechanical
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Not Published	Internal wet disc
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	CAB: 66.7 in; ROPS: 76.0 in	78.0 in
Overall Width	CAB: 55.7 in; ROPS: 53.9 in	56.9-66.5 in (1,445-66.5 in)
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	96.7 in	90.4-93.9 in (2,295-93.9 in)
Height to Top of Cab Model	85.6 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	CAB: 121.7 in; ROPS: 135.0 in	135.8 in
