Bad Boy Tractors 5045 Cab vs Massey Ferguson 1740M

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 7 categories to 1. Machine pages: Bad Boy Tractors 5045 Cab and Massey Ferguson 1740M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

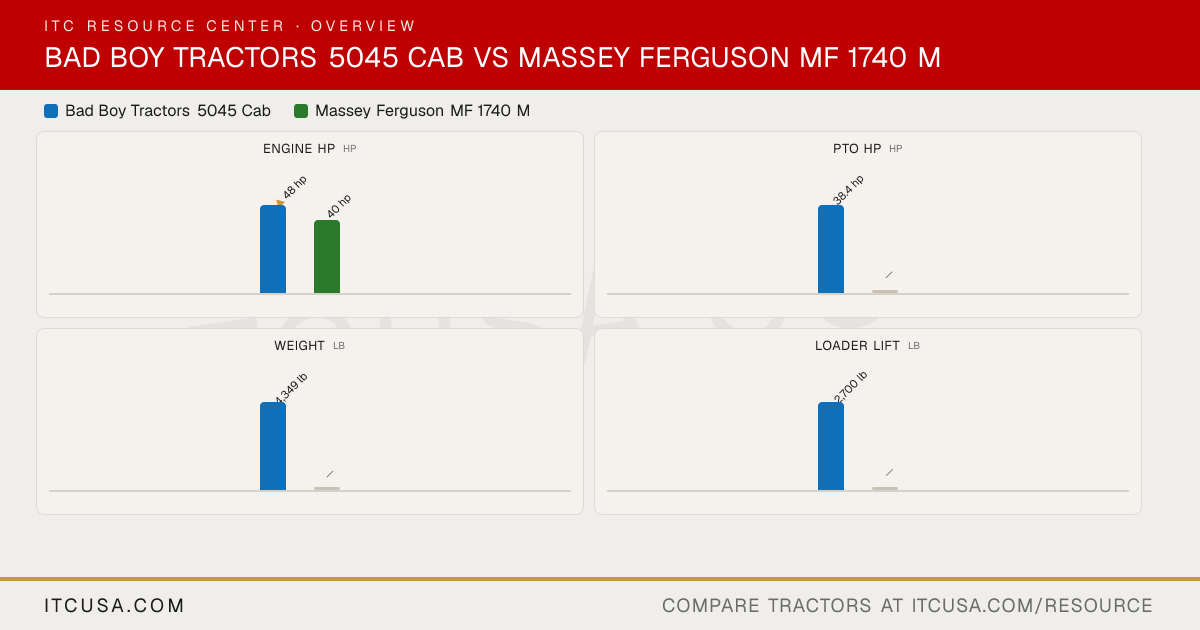

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	Massey Ferguson1740M

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A2300N3	N3LDI-T
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	4	3
Displacement	139.5 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	40 hp
PTO Power	38.4 hp	31.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	10.7 gpm	Not Published
Steering Flow	5 gpm	Not Published
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	4 ports	Cab: 1 pair
No. of Optional Remote Valves	Not Published	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	10.56 gal
Coolant Capacity	1.56 gal	6.34 qt
Crankcase Capacity	1.20 gal	4.86 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	1.90 gal	7.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, with soft-start feature
PTO Rear	540 / 540E rpm	540 rpm (6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2,535 lb
Lift Control Type	Position control	Draft control optional
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	4 range (HST)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Single stage dry type
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical engagement via right side heel pedal
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Internal wet disc brakes, independent foot pedals
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering
Front Axle Type	Selectable 4WD	Cast-steel 4WD front axle, center driveline, bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	64.2 in
Wheelbase	71.1 in	69.7 in
Ground Clearance	15.5 in	15.4 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	Not Published
Height to Top of ROPS	Not Published	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	91.3 in
Overall Length	127.4 in (with 3-point hitch)	122.0 in
▶Weight
Tractor Weight (Base)	4,349 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Agricultural, Turf, Industrial, Snow
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-26	12.4x24
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL125: Pin-on (skid steer quick attach optional)
Loader Model	BBL500	DL125
Loader Lift Height	106.6 in	DL125: 106 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	DL125: 1,660 lb (at pivot pin, full height)
Loader Breakout Force	3,660 lb	DL125: 3,000 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Five-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 5045 Cab vs Massey Ferguson 1740M: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 1740M?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 40 hp hp for the Massey Ferguson 1740M.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 1740M?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 31.2 hp hp for the Massey Ferguson 1740M.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 1740M?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,406 lb lb for the Massey Ferguson 1740M.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 1740M?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1740M.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 1740M?

The Massey Ferguson 1740M leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
