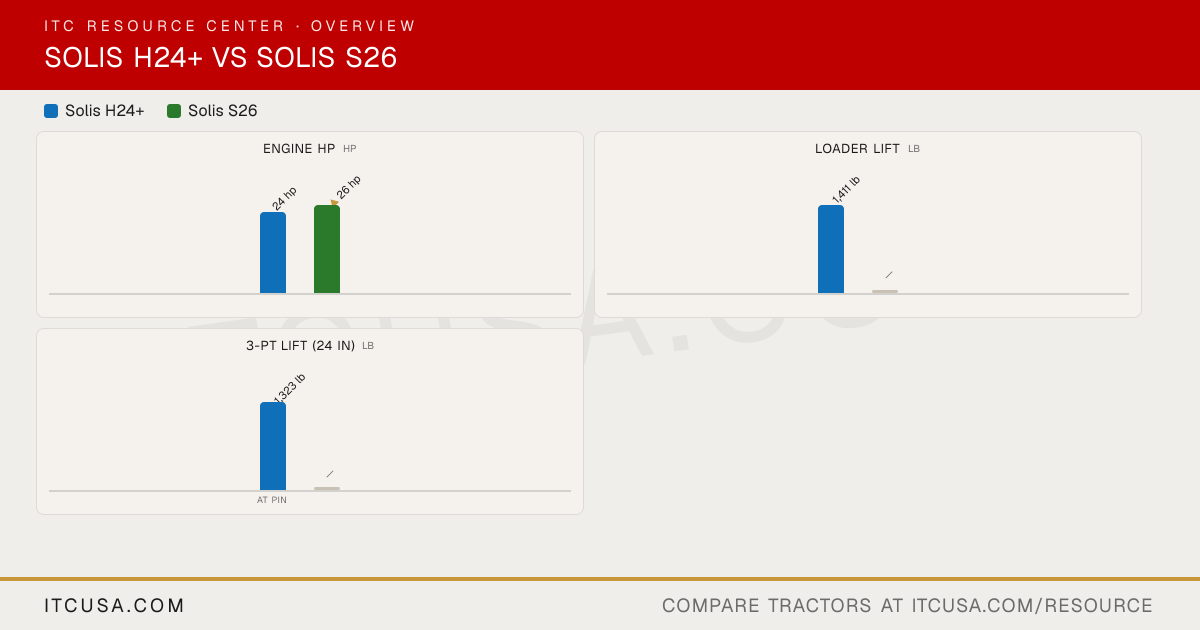

Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24+
SolisS26
PTO Power
Not Published
NOT FOUND
Alternator
Not Published
42 A, 12 V
Air Cleaner
Not Published
Dry
Engine Type
Natural (Naturally Aspirated)
3 Cylinder Diesel Engine
Fuel System
Not Published
NOT_FOUND
Displacement
80.4 in³
80.5 in³
Engine Model
Mitsubishi S3L2
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2500
Cooling System Type
Not Published
NOT_FOUND
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
24 hp
26 hp
Engine Emissions Constraints
Not Published
NOT FOUND — solis.md states only 'Compliant with current environmental standards' without naming a specific standard (e.g. Stage V / Tier 4)
Weight with ROPS and Loader
Not Published
1045 Kg
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
—
Pump Type
Not Published
—
Steering Flow
Not Published
—
Implement Flow
Not Published
17.8 LPM
Total Hydraulic Flow
3.98 GPM
—
Hydraulic System Type
Open Center
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
Not Published
—
No. of Optional Remote Valves
Not Published
—
No. of Standard Remote Valves
1
1 DA
PTO Rear
540@2451
540, 1000
PTO Type
Wet Type
Mechanical
Lift Control Type
Not Published
—
Hitch Lift Capacity
1323 lbs
600 Kg
Mid-PTO Availability
2100@2438
NOT FOUND — no source explicitly states mid-PTO availability or absence for the S26
Category, 3-Point Hitch
CAT1N
Cat 1 - N
Hitch Lift Capacity (at 24”)
Not Published
—
R3 Turf - Rear
33x15.5-16.5
33x15.5-16.5
R3 Turf - Front
23x8.50-12
23x8.50-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Radial Agri: Front 6.5/80-12, Rear 280/70 R18; Turf: Front 25x8.50-14, Rear 13.60-16; Industrial: Front 23x8.50-12, Rear 33x15.5-16.5; Galaxy Pro: Front 220/55 R12, Rear 280/70 R16
R4 Industrial - Rear
33x15.5-16.5
33x15.5-16.5
R4 Industrial - Front
23x8.50-12
23x8.50-12
R1 Agricultural - Rear
8.3x20
8.30-20
R1 Agricultural - Front
6x12
6.5/80-12 / 280/70 R18
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
7 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
85 in
—
Loader Breakout Force
1,146 lb
—
Quick Attach Loader System
3200V: Self-leveling
—
Loader Lift Capacity (Full Height)
1,411 lb
—
Clutch
NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)
NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+
—
Front Axle Type
NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)
4WD
Drawbar Capacity
NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found
—
Front Axle Rating
NOT FOUND — no source explicitly states a rated load capacity for the front axle
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
61.8 inches
61.4 in
Overall Width
47.83 in
41.7 in
Ground Clearance
9.44 inches (Front Axle)
9.4 in
Height to Top of ROPS
91.53 inches
77 in
Height to Top of Cab Model
Not Applicable
—
Height to Top of ROPS (folded)
Not Published
NOT FOUND — no source explicitly states a folded-ROPS height. ironandearth.co.uk lists '1955mm Height to ROPS' but does not specify folded vs. erected state.
Min. Turn Radius without Brakes
Not Published
—
Overall Length with 3-Point Hitch
113.98 inches
114 in
Solis H24+ vs Solis S26: Quick Answers
Which has more horsepower, the Solis H24+ or the Solis S26?
The Solis S26 leads on engine hp at 26 hp hp, compared to 24 hp hp for the Solis H24+.
