Solis H24+ vs TYM 2515

Across 7 measurable specs, the TYM 2515 leads 6 categories to 0 (1 tied). Machine pages: Solis H24+ and TYM 2515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

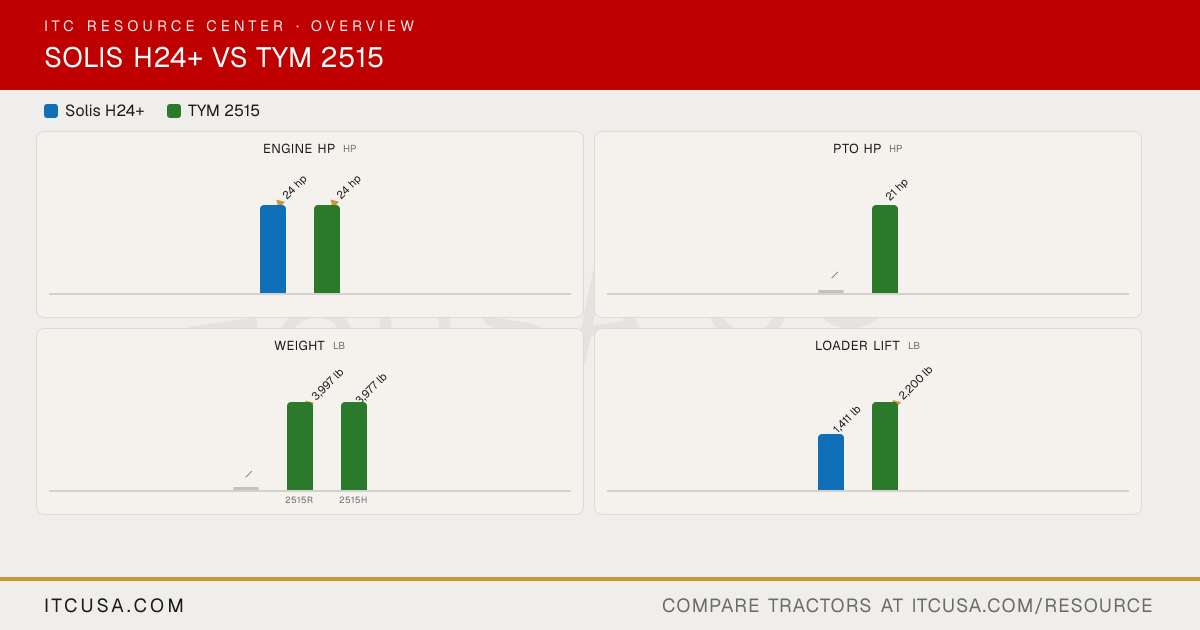

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisH24+	TYM2515

▶Engine
PTO Power	Not Published	21 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Natural (Naturally Aspirated)	3-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	80.4 in³	104.6 in³
Engine Model	Mitsubishi S3L2	—
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2100 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Mitsubishi	TYM T1700N6
Engine Power (Gross)	24 hp	24 hp
Engine Emissions Constraints	Not Published	Not Published
▶Weight
Weight with ROPS and Loader	Not Published	2515R: 3,997 lb; 2515H: 3,977 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Steering Flow	Not Published	4.2 gpm
Implement Flow	Not Published	7.7 gpm
Total Hydraulic Flow	3.98 GPM	11.9 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	1	0
▶PTO & Hitch
PTO Rear	540@2451	540 rpm
PTO Type	Wet Type	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1323 lbs	3,306 lb
Mid-PTO Availability	2100@2438	Not Published
Category, 3-Point Hitch	CAT1N	Category I
Hitch Lift Capacity (at 24”)	Not Published	2,425 lb
▶Tire Options
R3 Turf - Rear	33x15.5-16.5	41x14.00, 4PR
R3 Turf - Front	23x8.50-12	27x8.5-15, 6PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	33x15.5-16.5	420/70-24, 6PR; 15x19.5
R4 Industrial - Front	23x8.50-12	10-16.5, 6PR; 25x8.50-14
R1 Agricultural - Rear	8.3x20	12.4-24
R1 Agricultural - Front	6x12	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	5.3 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	7 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	9.8 gal
▶Loader & Attachments
Loader Lift Height	85 in	104.9 in
Loader Breakout Force	1,146 lb	3,422 lb
Quick Attach Loader System	3200V: Self-leveling	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,411 lb	2,200 lb
▶Transmission & Drivetrain
Clutch	NOT FOUND — HST twin-touch foot pedals (no separate clutch pedal listed in any source)	2515R: Dry Single Plate; 2515H: Not Applicable
No. of Speeds	Infinite (Hydrostatic - 2 Range)	2515R: F12 x R12; 2515H: 3-range
Transmission Type	HST (2 Range)	2515R: Synchromesh; 2515H: HST
Max Travel Speed (Forward)	Up to 14 mph	2515R: 11.7 mph; 2515H: 15.2 mph
Max Travel Speed (Reverse)	Up to 14 mph	Not Published
Differential Lock & Limited Slip Options	Standard	Not Published
▶Chassis, Steering & Controls
Brakes	Oil immersed brakes; mechanical foot operated	Wet, Multi disc
Steering	Power Steering	Hydrostatic
Frame Type	NOT FOUND — no source explicitly states a frame type (e.g. open/channel/unitized) for the H24+	Not Published
Front Axle Type	NOT FOUND — sources list 4WD / Selectable Four Wheel Drive but do not name axle type (e.g. rigid/oscillating/articulating)	Not Published
Drawbar Capacity	NOT FOUND — sources confirm a Rear Swing Drawbar is standard but no numeric capacity rating was found	Not Published
Front Axle Rating	NOT FOUND — no source explicitly states a rated load capacity for the front axle	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	61.8 inches	65.7 in
Overall Width	47.83 in	56.3 in
Ground Clearance	9.44 inches (Front Axle)	14.4 in
Height to Top of ROPS	91.53 inches	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 124.8 in; R: 121.3 in
Overall Length with 3-Point Hitch	113.98 inches	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $235.00

Solis H24+ vs TYM 2515: Quick Answers

Which has more horsepower, the Solis H24+ or the TYM 2515?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more loader lift capacity, the Solis H24+ or the TYM 2515?

The TYM 2515 leads on loader lift at 2,200 lb lb, compared to 1,411 lb lb for the Solis H24+.

Which has more three-point hitch lift capacity, the Solis H24+ or the TYM 2515?

The TYM 2515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,323 lb lb for the Solis H24+.
