Across 9 measurable specs, the TYM 2515 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and TYM 2515 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 TYM 2515 Engine HP (hp) 21.5 hp ▲ 24 hpPTO HP (hp) 15.4 hp ▲ 21 hpWeight (lb) 1,433 lb ▲ 3,997 lbLoader Lift (lb) 992 lb ▲ 2,200 lb3-Pt Lift (24 in) (lb) 679 lb ▲ 2,425 lbLift Height (in) 72.7 in ▲ 104.9 inBreakout Force (lbf) 1,531 lbf ▲ 3,422 lbfHydraulic Flow (gpm) 7 gpm ▲ 11.9 gpmTravel Speed (mph) 7.8 mph ▲ 15.2 mph
Overview Loader Work PTO Work

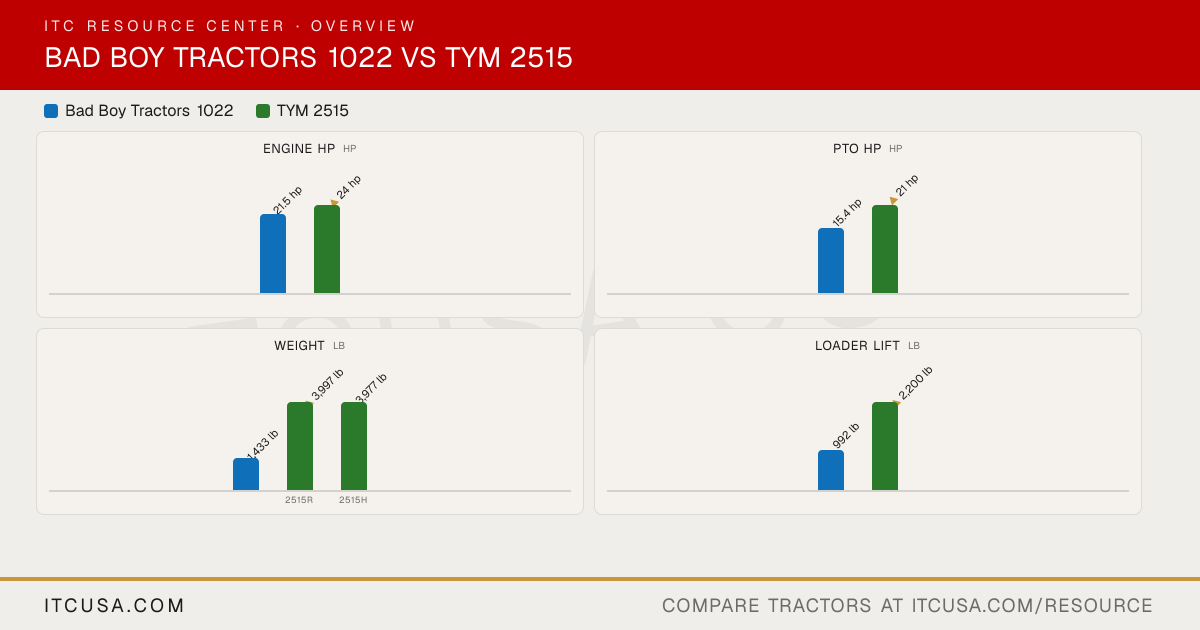

The headline numbers at a glance.
Bad Boy Tractors 1022 TYM 2515
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
1,433 lb
▲ 3,997 lb
3,977 lb
2515R 2515H
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 TYM 2515
▶ EnginePTO Power 15.4 hp 21 hp Alternator 40 A, 12 V 50 A, 12 V Air Cleaner Single Dry Dry element Engine Type Natural Aspiration 3-cylinder, naturally aspirated diesel Fuel System Diesel IDI Displacement 60.6 (993) 104.6 in³ No. of Cylinders 3 3 Rated Engine Speed 3,200 2100 rpm Cooling System Type Water cooled Not Published Engine Manufacturer Yanmar TYM T1700N6 Engine Power (Gross) 21.5 hp 24 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightTractor Weight (Base) 1,433 (650) — Weight with ROPS and Loader 1,433 lb 2515R: 3,997 lb; 2515H: 3,977 lb Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 7-year powertrain warranty Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Single Gear Pump with Flow Divider Dual gear pump Steering Flow 2.11 gpm 4.2 gpm Implement Flow 4.17 (15.8) 7.7 gpm Total Hydraulic Flow 6.97 (26.4) 11.9 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm (max total flow) 11.9 gpm No. of Optional Remote Valves Up to 1 Not Published No. of Standard Remote Valves Not Published 0 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position Position control Hitch Lift Capacity 1,100 lb 3,306 lb Mid-PTO Availability Optional (2,500 rpm) Not Published Category, 3-Point Hitch Category I (N) Category I Hitch Lift Capacity (at 24”) 679 lb 2,425 lb ▶ Tire OptionsR3 Turf - Rear TURF R 16X12.00-12 41x14.00, 4PR R3 Turf - Front TURF F 16X7.50-8 27x8.5-15, 6PR Tire Size & Options R1 (BAR) / R3 (TURF) / R4 (IND) R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 26X12-12 420/70-24, 6PR; 15x19.5 R4 Industrial - Front 18X8.50-10 10-16.5, 6PR; 25x8.50-14 R1 Agricultural - Rear BAR R 24X12.00-12 12.4-24 R1 Agricultural - Front BAR F 16X7.50-9 8.0-16 ▶ Fluid CapacityCoolant Capacity 0.9 gal 5.3 qt Crankcase Capacity 0.48 gal 4.5 qt Fuel Tank Capacity 6.6 gal 7.1 gal Front Axle Fluid Capacity 2.6 qt 6.8 qt Transmission / Hydraulic System Capacity 3.6 gal 9.8 gal ▶ Loader & AttachmentsLoader Lift Height 72.7 in (under level bucket); 78.5 in (pivot pin) 104.9 in Loader Breakout Force 1,531 lb (at pivot pin, ground level) 3,422 lb Quick Attach Loader System SSQA BL150: Quick attach assembly (lever-lock) Loader Lift Capacity (Full Height) 992 lb (at pivot pin) 2,200 lb ▶ Transmission & DrivetrainClutch Dry single plate 2515R: Dry Single Plate; 2515H: Not Applicable No. of Speeds 2 Range 2515R: F12 x R12; 2515H: 3-range Transmission Type Hydrostatic transmission (HST) 2515R: Synchromesh; 2515H: HST Max Travel Speed (Forward) 7.8 mph 2515R: 11.7 mph; 2515H: 15.2 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsBrakes Wet disc Wet, Multi disc Steering Hydrostatic Hydrostatic Frame Type Sub-compact tractor, 4WD Not Published Front Axle Type Center pin front axle Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Standard adjustable seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 53.1 (1,350) 65.7 in Overall Width 44.5 (1,130) 56.3 in Overall Length 94.2 (2,394) — Ground Clearance 8.3 in. 14.4 in Height to Top of ROPS 86.6 (2,200) 97.3 in Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 86.6 (2,200) L: 124.8 in; R: 121.3 in Overall Length with 3-Point Hitch 94.2 in 120.9 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 1022 vs TYM 2515: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 2515? The TYM 2515 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 2515? The TYM 2515 leads on pto hp at 21 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the TYM 2515? The TYM 2515 leads on weight at 3,997 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 2515? The TYM 2515 leads on loader lift at 2,200 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 2515? The TYM 2515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
