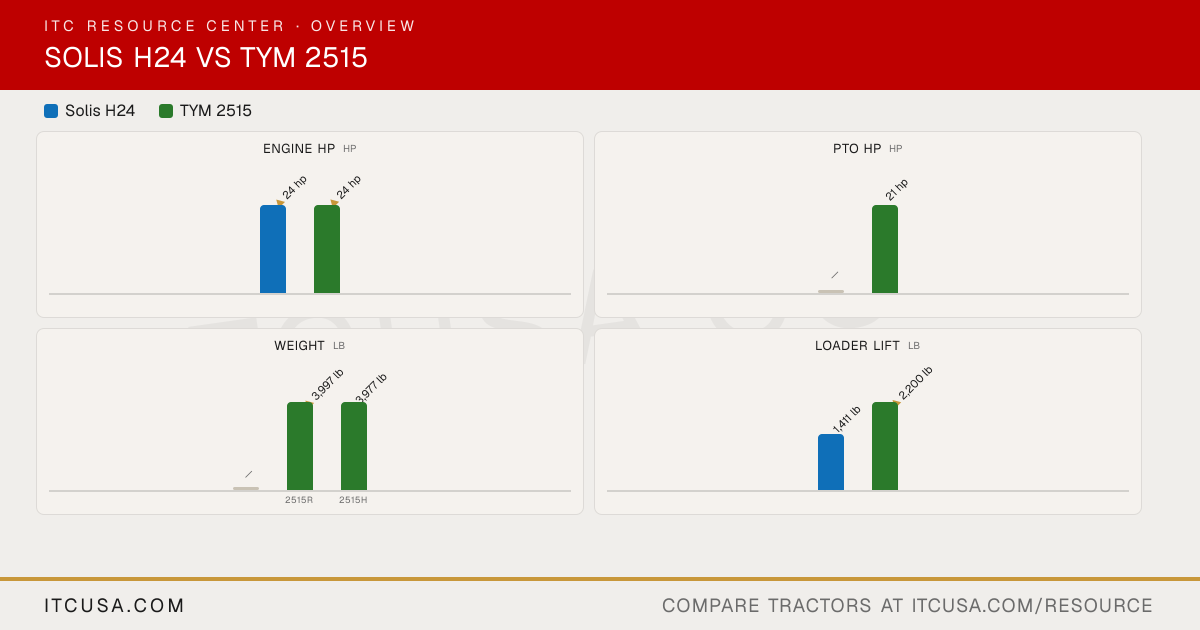

Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisH24
TYM2515
Engine Manufacturer
Mitsubishi
TYM T1700N6
Engine Model
Mitsubishi S3L2
n/a
Engine Type
diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
80.4 in³
104.6 in³
Rated Engine Speed
2500 rpm
2100 rpm
Engine Power (Gross)
24 hp
24 hp
PTO Power
Not Published
21 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Liquid cooled
Not Published
Air Cleaner
Not Published
Dry element
Fuel System
Direct Injection
IDI
Alternator
alternator
50 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
3.98 gpm
7.7 gpm
Steering Flow
Not Published
4.2 gpm
Total Hydraulic Flow
3.98 gpm
11.9 gpm
Overall Hydraulic Pump Flow
3.98 gpm
11.9 gpm
Hydraulic System Type
open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
7 gal
7.1 gal
Coolant Capacity
Not Published
5.3 qt
Crankcase Capacity
Not Published
4.5 qt
Transmission / Hydraulic System Capacity
Not Published
9.8 gal
Front Axle Fluid Capacity
Not Published
6.8 qt
PTO Type
independent
Independent
PTO Rear
540 (1.375)
540 rpm
Mid-PTO Availability
Optional
Not Published
Category, 3-Point Hitch
I
Category I
Hitch Lift Capacity
1323 lb
3,306 lb
Hitch Lift Capacity (at 24”)
Not Published
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
hydrostatic
2515R: Synchromesh; 2515H: HST
No. of Speeds
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
2515R: F12 x R12; 2515H: 3-range
Max Travel Speed (Forward)
Up to 14 mph
2515R: 11.7 mph; 2515H: 15.2 mph
Max Travel Speed (Reverse)
Up to 14 mph
Not Published
Clutch
electro-hydraulic wet disc
2515R: Dry Single Plate; 2515H: Not Applicable
Differential Lock & Limited Slip Options
mechanical rear
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Mechanical wet disc brakes
Wet, Multi disc
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
Four-wheel drive
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
113.98 in.
120.9 in
Overall Width
47.38 in.
56.3 in
Wheelbase
61.8 in 61.4 in
65.7 in
Ground Clearance
9.44 in.
14.4 in
Min. Turn Radius without Brakes
Not Published
L: 124.8 in; R: 121.3 in
Height to Top of ROPS
91.53 in
97.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Tractor Weight (Base)
Not Published
n/a
Weight with ROPS and Loader
Not Published
2515R: 3,997 lb; 2515H: 3,977 lb
Weight with Cab and Loader
Not Published
Not Applicable
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
6-12
8.0-16
R1 Agricultural - Rear
8.3-20
12.4-24
R3 Turf - Front
23x8.50-12; 25x8.50-14
27x8.5-15, 6PR
R3 Turf - Rear
33x15.5-16.5; 13.6x16
41x14.00, 4PR
R4 Industrial - Front
23x8.50-12
10-16.5, 6PR; 25x8.50-14
R4 Industrial - Rear
33x15.5-16.5
420/70-24, 6PR; 15x19.5
Quick Attach Loader System
SSQA (Skid Steer Quick Attach)
BL150: Quick attach assembly (lever-lock)
Loader Model
Solis 3200
n/a
Loader Lift Height
85 in
104.9 in
Loader Lift Capacity (Full Height)
1,411 lb
2,200 lb
Loader Breakout Force
1,146 lb
3,422 lb
Warranty Length & Coverage
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
