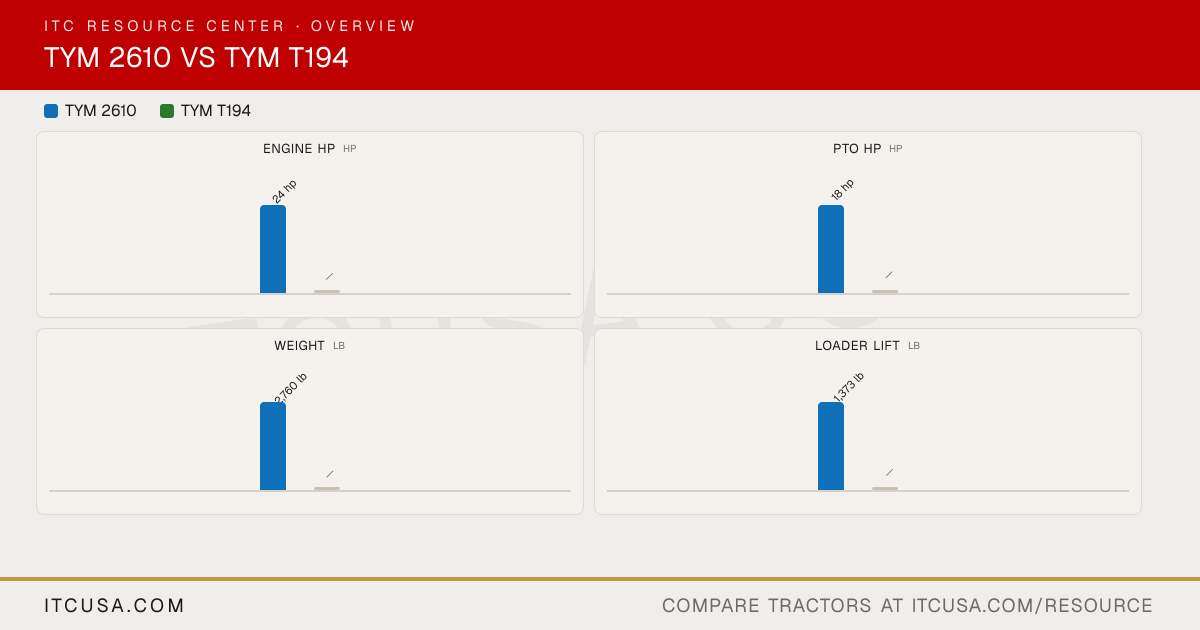

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2610
TYMT194
PTO Power
18 hp
—
Alternator
60 A, 12 V
—
Air Cleaner
Dry element
—
Engine Type
3-cylinder, naturally aspirated diesel
—
Fuel System
IDI
—
Displacement
71.7 in³
—
No. of Cylinders
3
—
Rated Engine Speed
2800 rpm
—
Cooling System Type
liquid-cooled
—
Engine Manufacturer
TYM
—
Engine Power (Gross)
24 hp
—
Engine Emissions Constraints
Tier 4
—
Weight with ROPS and Loader
2,760 lb
—
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
—
Pump Type
Single Gear Pump
—
Steering Flow
4.3 gpm | 16.2 l/min
—
Implement Flow
3.1 gpm | 11.7 l/min
—
Total Hydraulic Flow
7.4 gpm | 28 l/min
—
Hydraulic System Type
open center
—
Rear Remote Hydraulic Flow
3.1 gpm 11.7 lpm
—
Overall Hydraulic Pump Flow
Total: 7.9 gpm [Implement: 4.65 gpm | Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing
