24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Gear
Single Gear Pump
Steering Flow
N/A
4.3 gpm | 16.2 l/min
Implement Flow
6.5 gpm (24.5 Lpm)
3.1 gpm | 11.7 l/min
Total Hydraulic Flow
7.2 gpm
7.4 gpm | 28 l/min
Hydraulic System Type
Open Center
open center
Rear Remote Hydraulic Flow
NOT FOUND
3.1 gpm 11.7 lpm
Overall Hydraulic Pump Flow
7.2 gpm
Total: 7.9 gpm [Implement: 4.65 gpm | Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing
No. of Optional Remote Valves
1 Pair
Optional (2)
No. of Standard Remote Valves
1
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live
Lift Control Type
Hydraulic Position Control System
Position
Hitch Lift Capacity
700 lb.
1499 lb | 1,499.1 lb
Mid-PTO Availability
Standard: 2200 rpm
Mid-PTO available; 2,500 RPM mid-mount PTO option
Category, 3-Point Hitch
Category 1 Limited
I
Hitch Lift Capacity (at 24”)
700 lb
974 lb
R3 Turf - Rear
26X12.00-12
33x12.50-16.5
R3 Turf - Front
18X8.5-10
23x8.50-12
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
Skid Steer style quick attach; BL110S loader with skid steer quick attach bucket (50" standard bucket)
Loader Lift Capacity (Full Height)
608 lb.
1373 lb | 1,373.5 lbf
Clutch
Clutch-free (Hydrostatic)
Dry Single Plate
No. of Speeds
2
3-Range
Transmission Type
2-Range HST
HST
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
17 mph | 27.3 kmph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
Not Published
Brakes
Wet Multi-disc
Wet, Multi-disc
Steering
Hydrostatic Power Steering
Hydrostatic
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Four-wheel drive
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Comfortable suspension seat
Wheelbase
55.1 in.
65.7 in. | 65.7 in
Overall Width
46.0 in.
53.8 in. | 53.9 in
Ground Clearance
6.3 in.
15.1 in. | 15 in
Height to Top of ROPS
87.6 in.
91.5 in. | 91.7 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not specified in searched sources; ROPS is confirmed foldable but folded height not published
Min. Turn Radius without Brakes
100.0 in.
9.6 ft | 2.9 m
Overall Length with 3-Point Hitch
99.3 in.
122.9 in. | 122.9 in

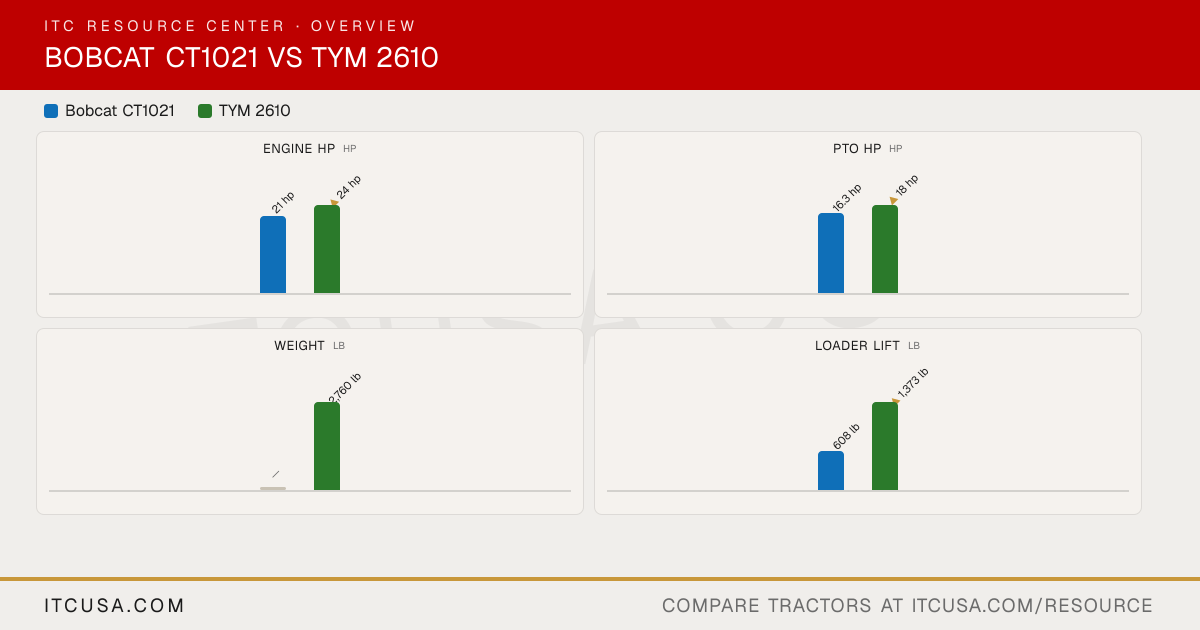

Bobcat CT1021 vs TYM 2610: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the TYM 2610?
The TYM 2610 leads on engine hp at 24 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the TYM 2610?
The TYM 2610 leads on pto hp at 18 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the TYM 2610?
The TYM 2610 leads on loader lift at 1,373 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the TYM 2610?
The TYM 2610 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Bobcat CT1021.
