TYM 3620 vs TYM T3035

Across 9 measurable specs, the TYM 3620 leads 6 categories to 1 (2 tied). Machine pages: TYM 3620 and TYM T3035.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

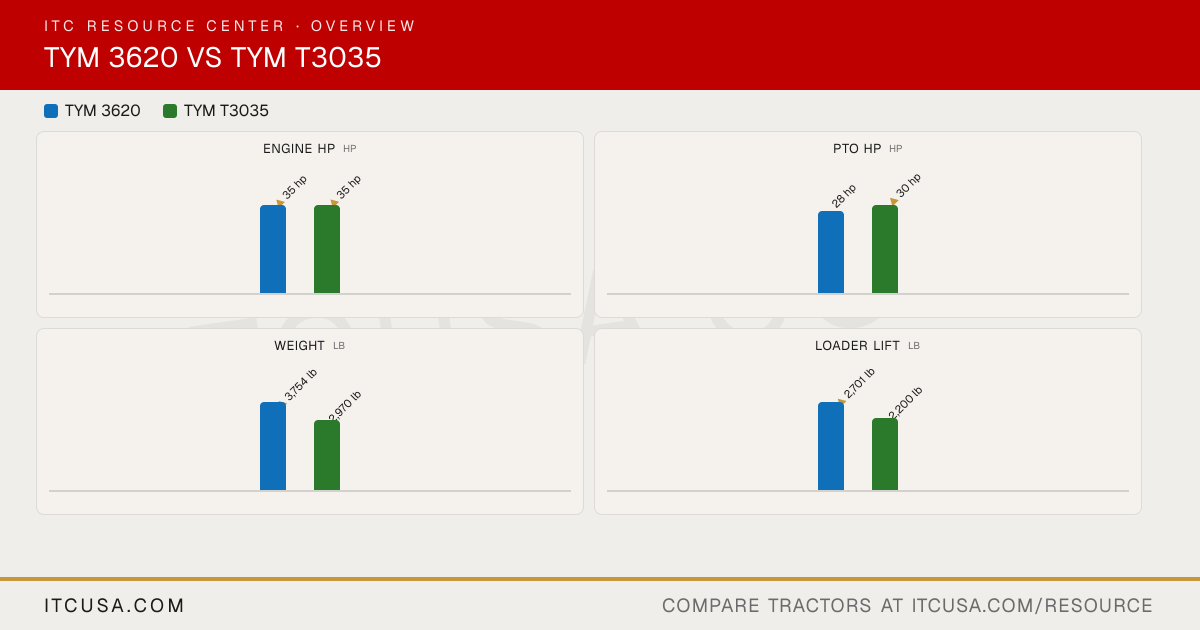

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3620	TYMT3035

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T1700N2	T1700N6
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.5 in³	104.5 in³
Rated Engine Speed	2500 rpm	2100 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry element	Dry element
Fuel System	IDI	IDI (indirect injection)
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	7.7 gpm	7.5 gpm
Steering Flow	4.2 gpm	4.0 gpm
Total Hydraulic Flow	11.9 gpm	11.5 gpm
Overall Hydraulic Pump Flow	11.9 gpm	11.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Optional (up to 4)	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Up to 4	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	8.7 gal
Coolant Capacity	6 qt	5.3 qt
Crankcase Capacity	4.5 qt	4.5 qt
Transmission / Hydraulic System Capacity	3620R: 10.3 gal; 3620H: 11.1 gal	T3035R: 8.9 gal; T3035H: 9.8 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540/750 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,307 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	3620R: Synchromesh; 3620H: HST	T3035R: Synchromesh; T3035H: HST
No. of Speeds	3620R: F16 x R16; 3620H: 4-Range	T3035R: F12 x R12; T3035H: 3-Range
Max Travel Speed (Forward)	3620R: 16 mph; 3620H: 19.5 mph	T3035R: 14.4 mph; T3035H: 18.8 mph
Max Travel Speed (Reverse)	3620R: 15.2 mph; 3620H: 19.5 mph	Not Published
Clutch	3620R: Dry single type; 3620H: No clutch (HST)	T3035R: Dry single plate; T3035H: None (HST)
Differential Lock & Limited Slip Options	Standard differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Suspension seat	Suspension seat
Front Axle Type	4WD (selectable 2WD/4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	56.3 in
Wheelbase	71.1 in	65.7 in
Ground Clearance	15.5 in	14.4 in
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	105.5 in
Height to Top of ROPS	98.4 in	97.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	127.4 in (with 3-point hitch)	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,754 lb (with ROPS)	2,970 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	12.4-28	12.4-24
R3 Turf - Front	27x8.5-15 / 29x12.5-15	27x8.5-15
R3 Turf - Rear	41x14-20 / 44x18-20	41x14.00
R4 Industrial - Front	10x16.5	10-16.5
R4 Industrial - Rear	420/70x24	420/70-24
▶Loader & Attachments
Quick Attach Loader System	BL200: Quick attach mechanism	Not Published
Loader Model	BL200	L3035
Loader Lift Height	BL200: 106.6 in	L3035: 104.9 in
Loader Lift Capacity (Full Height)	BL200: 2,701 lb (at pivot pin)	L3035: 2,200 lb (at pivot pin)
Loader Breakout Force	BL200: 3,660 lb (at pivot pin, ground level)	L3035: 3,422 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00	None tagged yet

Find a TYM dealer near you→

TYM 3620 vs TYM T3035: Quick Answers

Which has more horsepower, the TYM 3620 or the TYM T3035?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the TYM 3620 or the TYM T3035?

The TYM T3035 leads on pto hp at 30 hp hp, compared to 28 hp hp for the TYM 3620.

Which is heavier, the TYM 3620 or the TYM T3035?

The TYM 3620 leads on weight at 3,754 lb lb, compared to 2,970 lb lb for the TYM T3035.

Which has more loader lift capacity, the TYM 3620 or the TYM T3035?

The TYM 3620 leads on loader lift at 2,701 lb lb, compared to 2,200 lb lb for the TYM T3035.

Which has more three-point hitch lift capacity, the TYM 3620 or the TYM T3035?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
