Across 9 measurable specs, the Bad Boy Tractors 4035 leads 4 categories to 2 (3 tied). Machine pages: Bad Boy Tractors 4035 and TYM T3035.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 4035 | TYM T3035 |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 29.5 hp | ▲ 30 hp |
| Weight (lb) | ▲ 3,163.6 lb | 2,969.6 lb |
| Loader Lift (lb) | 2,200 lb | 2,200 lb |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | 2,425 lb |
| Lift Height (in) | 104 in | ▲ 104.9 in |
| Breakout Force (lbf) | ▲ 3,660 lbf | 3,422 lbf |
| Hydraulic Flow (gpm) | ▲ 12.6 gpm | 11.5 gpm |
| Travel Speed (mph) | ▲ 19.1 mph | 18.8 mph |

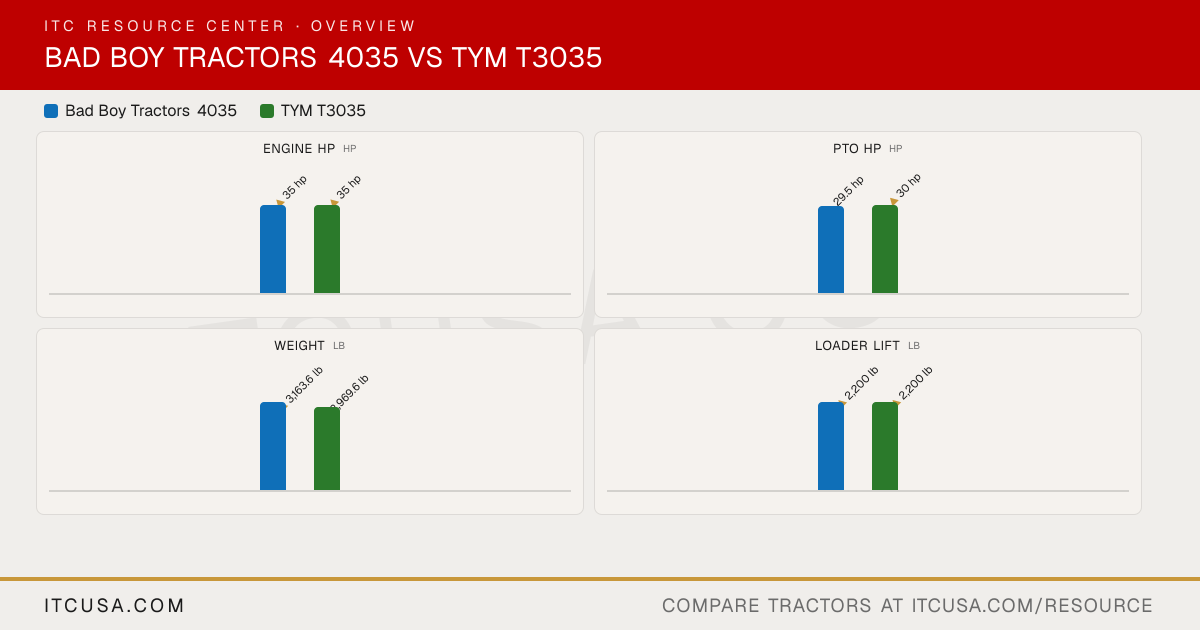

The headline numbers at a glance.
Bad Boy Tractors 4035TYM T3035
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors4035 | TYMT3035 |
|---|
|
|---|
| Engine Manufacturer | TYM | TYM |
|---|
| Engine Model | A1700N4-BUTR_4 | T1700N6 |
|---|
| Engine Type | Vertical, 4-stroke, water-cooled diesel | 3-cylinder, naturally aspirated diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.7 in³ | 104.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2100 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 29.5 hp | 30 hp |
|---|
| Engine Emissions Constraints | EPA Final Tier4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Dry element |
|---|
| Fuel System | Not Published | IDI (indirect injection) |
|---|
| Alternator | 50 A, 12 V | 50 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Dual gear pump |
|---|
| Implement Flow | 8.2 gpm | 7.5 gpm |
|---|
| Steering Flow | 4.4 gpm | 4.0 gpm |
|---|
| Total Hydraulic Flow | 12.6 gpm | 11.5 gpm |
|---|
| Overall Hydraulic Pump Flow | 12.6 gpm | 11.5 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Loader: 4 / Rear: 0 |
|---|
| No. of Optional Remote Valves | Up to 2 | Up to 4 |
|---|
|
|---|
| Fuel Tank Capacity | 7.13 gal | 8.7 gal |
|---|
| Coolant Capacity | 1.32 gal | 5.3 qt |
|---|
| Crankcase Capacity | 1.14 gal | 4.5 qt |
|---|
| Transmission / Hydraulic System Capacity | 9.77 gal | T3035R: 8.9 gal; T3035H: 9.8 gal |
|---|
| Front Axle Fluid Capacity | 1.69 gal | 6.8 qt |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 3,306.9 lb | 3,307 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | 2,425 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST), 3-range | T3035R: Synchromesh; T3035H: HST |
|---|
| No. of Speeds | 3 range (HST) | T3035R: F12 x R12; T3035H: 3-Range |
|---|
| Max Travel Speed (Forward) | 19.08 mph | T3035R: 14.4 mph; T3035H: 18.8 mph |
|---|
| Max Travel Speed (Reverse) | 19.08 mph | Not Published |
|---|
| Clutch | None (HST) | T3035R: Dry single plate; T3035H: None (HST) |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet, multi-disc | Wet, multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Suspension seat |
|---|
| Front Axle Type | Selectable 4WD | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 134.88 in | 120.9 in |
|---|
| Overall Width | 56.7 in | 56.3 in |
|---|
| Wheelbase | 65.7 in | 65.7 in |
|---|
| Ground Clearance | 15 in | 14.4 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 105.5 in |
|---|
| Height to Top of ROPS | 96.85 in | 97.3 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 85.9 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,163.6 lb | 2,969.6 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 | R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24 |
|---|
| R1 Agricultural - Front | 8.0-16 | 8-16 |
|---|
| R1 Agricultural - Rear | 12.4-24 | 12.4-24 |
|---|
| R3 Turf - Front | Not Published | 27x8.5-15 |
|---|
| R3 Turf - Rear | Not Published | 41x14.00 |
|---|
| R4 Industrial - Front | 28x8.50-15 | 10-16.5 |
|---|
| R4 Industrial - Rear | 43x16.00-20 | 420/70-24 |
|---|
|
|---|
| Quick Attach Loader System | SSQA | Not Published |
|---|
| Loader Model | BBL400 | L3035 |
|---|
| Loader Lift Height | 104 in | L3035: 104.9 in |
|---|
| Loader Lift Capacity (Full Height) | 2,200 lb | L3035: 2,200 lb |
|---|
| Loader Breakout Force | 3,660 lb | L3035: 3,422 lb |
|---|
|
|---|
| Warranty Length & Coverage | Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours | 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 4035 vs TYM T3035: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 4035 or the TYM T3035?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Bad Boy Tractors 4035 or the TYM T3035?
- The TYM T3035 leads on pto hp at 30 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.
- Which is heavier, the Bad Boy Tractors 4035 or the TYM T3035?
- The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,969.6 lb lb for the TYM T3035.
- Which has more loader lift capacity, the Bad Boy Tractors 4035 or the TYM T3035?
- They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the TYM T3035?
- They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
