TYM 4215 vs TYM T394

Across 9 measurable specs, the TYM 4215 leads 8 categories to 1. Machine pages: TYM 4215 and TYM T394.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

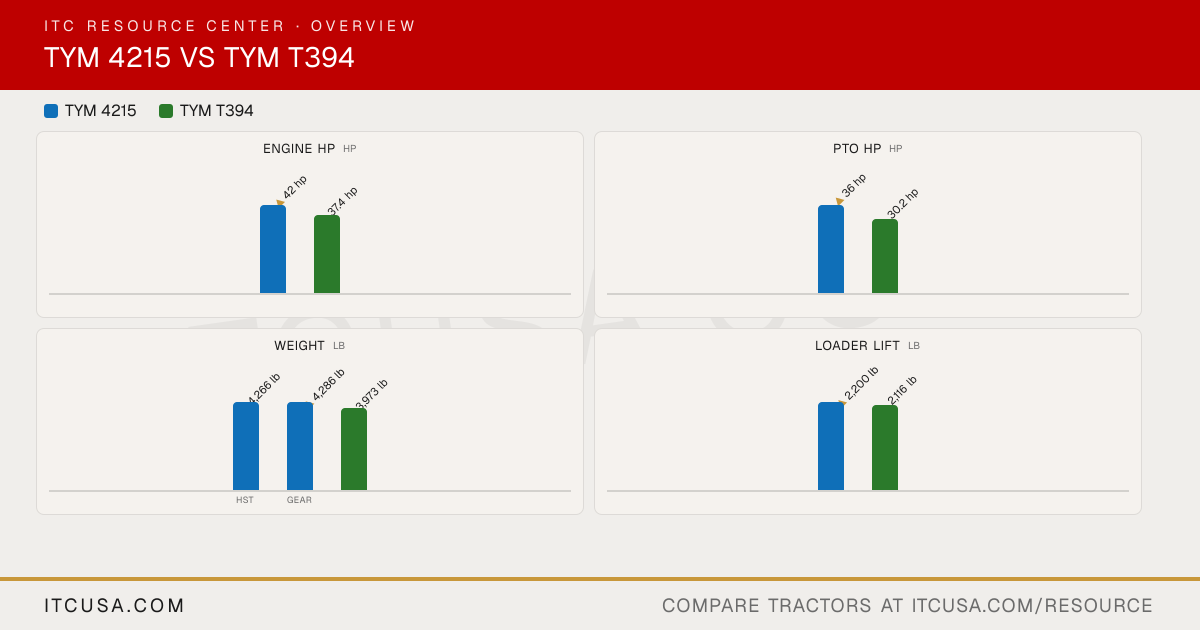

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM4215	TYMT394

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	T2000N2	3TNV88-CR
Engine Type	4-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	4	3
Displacement	139.5 in³	100.2 in³
Rated Engine Speed	2600 rpm	3000 rpm
Engine Power (Gross)	41 hp	36.9 hp
PTO Power	36 hp	30.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dual dry
Fuel System	IDI	CRDI
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	11.4 gpm	6.1 gpm
Steering Flow	5.2 gpm	4.4 gpm
Total Hydraulic Flow	16.5 gpm	10.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	10.5 gpm
Hydraulic System Type	Dual gear pump	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Rear: 0 (loader: 2)	None
No. of Optional Remote Valves	Up to 4	1 or 2 (single or double rear remote with detent, accessory)
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	9.0 gal
Coolant Capacity	5.8 qt	7.4 qt
Crankcase Capacity	4.8 qt	6 qt
Transmission / Hydraulic System Capacity	4215R: 9 gal; 4215H: 9.8 gal	8.5 gal
Front Axle Fluid Capacity	6.8 qt	8.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	2,639 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,558 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	4215R: Synchromesh; 4215H: HST	Mechanical
No. of Speeds	4215R: 12 forward / 12 reverse; 4215H: 3-range hydrostatic	12 forward / 12 reverse
Max Travel Speed (Forward)	4215R: 14.4 mph; 4215H: 18.8 mph	15.0 mph
Max Travel Speed (Reverse)	4215R: 14.3 mph; 4215H: 18.7 mph	Not Published
Clutch	4215R: Dry single plate; 4215H: Not applicable (HST)	Dry single plate
Differential Lock & Limited Slip Options	Differential lock (standard)	Differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly
Steering	Hydrostatic	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Suspension seat	Fore and aft sliding seat with cushion strength adjustment
Front Axle Type	Not Published	4WD center-pivot, reverse Elliott type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.3 in	53.5 in
Wheelbase	65.7 in	64.5 in
Ground Clearance	14.4 in	12.8 in
Min. Turn Radius without Brakes	124.8 in (left); 121.3 in (right)	116 in
Height to Top of ROPS	97.3 in	94.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	120.9 in (with 3-point hitch)	126 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	4215R: 3,278 lb (with ROPS); 4215H: 3,258 lb (with ROPS)	3,020 lb (with ROPS)
Weight with ROPS and Loader	HST: 4,266 lb (3,258 + 1,008, computed); Gear: 4,286 lb (3,278 + 1,008, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	12.4-24	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)
R3 Turf - Front	27x8.5-15, 6PR	27x10.5-15
R3 Turf - Rear	41x14.00, 4PR	12.5-20
R4 Industrial - Front	10-16.5, 6PR (standard); 25x8.50-14 (option)	27x10.5-15
R4 Industrial - Rear	420/70-24, 6PR (standard); 15x19.5 (option)	12.5x20
▶Loader & Attachments
Quick Attach Loader System	BL150: quick attachment assembly	TX39H: quick attachment assembly
Loader Model	BL150	TX39H
Loader Lift Height	BL150: 104.9 in	TX39H: 101.5 in
Loader Lift Capacity (Full Height)	BL150: 2,200 lb (at pivot pin)	TX39H: 2,116 lb (at pivot pin)
Loader Breakout Force	BL150: 3,422 lb (at pivot pin, ground level)	TX39H: 3,435 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99

Find a TYM dealer near you→

TYM 4215 vs TYM T394: Quick Answers

Which has more horsepower, the TYM 4215 or the TYM T394?

The TYM 4215 leads on engine hp at 41 hp hp, compared to 36.9 hp hp for the TYM T394.

Which has more PTO horsepower, the TYM 4215 or the TYM T394?

The TYM 4215 leads on pto hp at 36 hp hp, compared to 30.2 hp hp for the TYM T394.

Which is heavier, the TYM 4215 or the TYM T394?

The TYM 4215 leads on weight at 3,278 lb lb, compared to 3,020 lb lb for the TYM T394.

Which has more loader lift capacity, the TYM 4215 or the TYM T394?

The TYM 4215 leads on loader lift at 2,200 lb lb, compared to 2,116 lb lb for the TYM T394.

Which has more three-point hitch lift capacity, the TYM 4215 or the TYM T394?

The TYM 4215 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,558 lb lb for the TYM T394.
