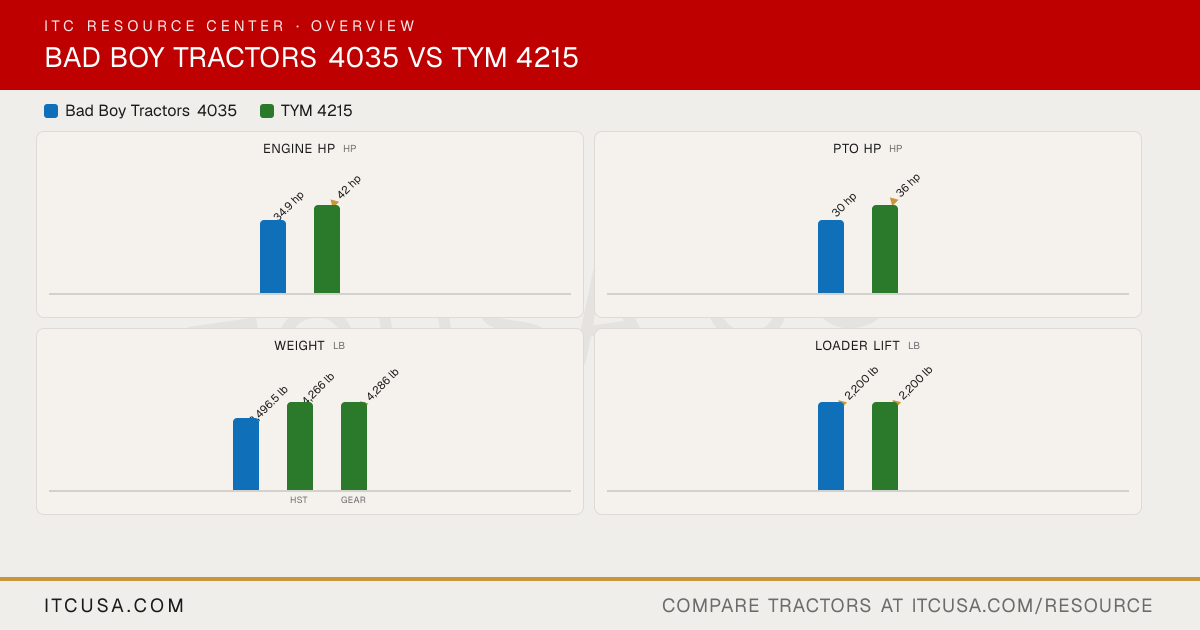

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors4035
TYM4215
PTO Power
30 hp
36 hp
Alternator
50 A, 12 V
50 A, 12 V
Air Cleaner
Not Published
Dry element
Engine Type
3 Cylinder, Water-Cooled, Diesel
4-cylinder, naturally aspirated diesel
Fuel System
Diesel fuel
IDI
Displacement
104.7 in³
139.6 in³
No. of Cylinders
3
4
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Water cooled
Not Published
Engine Manufacturer
A1700N4-BUTC_4
TYM
Engine Power (Gross)
34.9 hp
42 hp
Engine Emissions Constraints
EPA Final Tier4
Tier 4
Tractor Weight (Base)
3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL
—
Weight with ROPS and Loader
3163 lbs
HST: 4,266 lb; Gear: 4,286 lb
Weight with Cab and Loader
3,728 lbs
Not Applicable
Warranty Length & Coverage
6-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Not Published
Single gear pump
Steering Flow
4.4 gpm
9.9 gpm
Implement Flow
8.2 gpm
4.4 gpm
Total Hydraulic Flow
12.6 gpm (4.4+8.2)
14.3 gpm
Hydraulic System Type
Open Center
Open center
System Operating Pressure
180 - 407.9 lbf/cm² for control valve
—
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
12.6 gpm
14.3 gpm
No. of Optional Remote Valves
Optional (up to 2)
Up to 4
No. of Standard Remote Valves
Not Published
0
PTO Rear
540 RPM
560 rpm
PTO Type
Independent
Independent
Lift Control Type
Position Control
Position control
Hitch Lift Capacity
3,306.9 lb
3,306 lb
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Cat 1
Category I
Hitch Lift Capacity (at 24”)
2,425 lb
2,425 lb
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20
