Which has more horsepower, the TYM 5520 or the TYM T4058PC?

The TYM T4058PC leads on engine hp at 58 hp hp, compared to 55 hp hp for the TYM 5520.

Which has more PTO horsepower, the TYM 5520 or the TYM T4058PC?

The TYM T4058PC leads on pto hp at 48 hp hp, compared to 44 hp hp for the TYM 5520.

Which has more loader lift capacity, the TYM 5520 or the TYM T4058PC?

The TYM T4058PC leads on loader lift at 3,437 lb lb, compared to 2,701 lb lb for the TYM 5520.

Which has more three-point hitch lift capacity, the TYM 5520 or the TYM T4058PC?

The TYM T4058PC leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the TYM 5520.

TYM 5520 vs TYM T4058PC

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T4058PC leads 7 categories to 0 (1 tied). Machine pages: TYM 5520 and TYM T4058PC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 5520	TYM T4058PC
Engine HP (hp)	55 hp	▲ 58 hp
PTO HP (hp)	44 hp	▲ 48 hp
Weight (lb)	—	6,251.5 lb
Loader Lift (lb)	2,701 lb	▲ 3,437 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,748 lb
Lift Height (in)	106.6 in	▲ 117.5 in
Breakout Force (lbf)	3,660 lbf	▲ 4,742 lbf
Hydraulic Flow (gpm)	16.5 gpm	16.5 gpm
Travel Speed (mph)	19.5 mph	▲ 24 mph

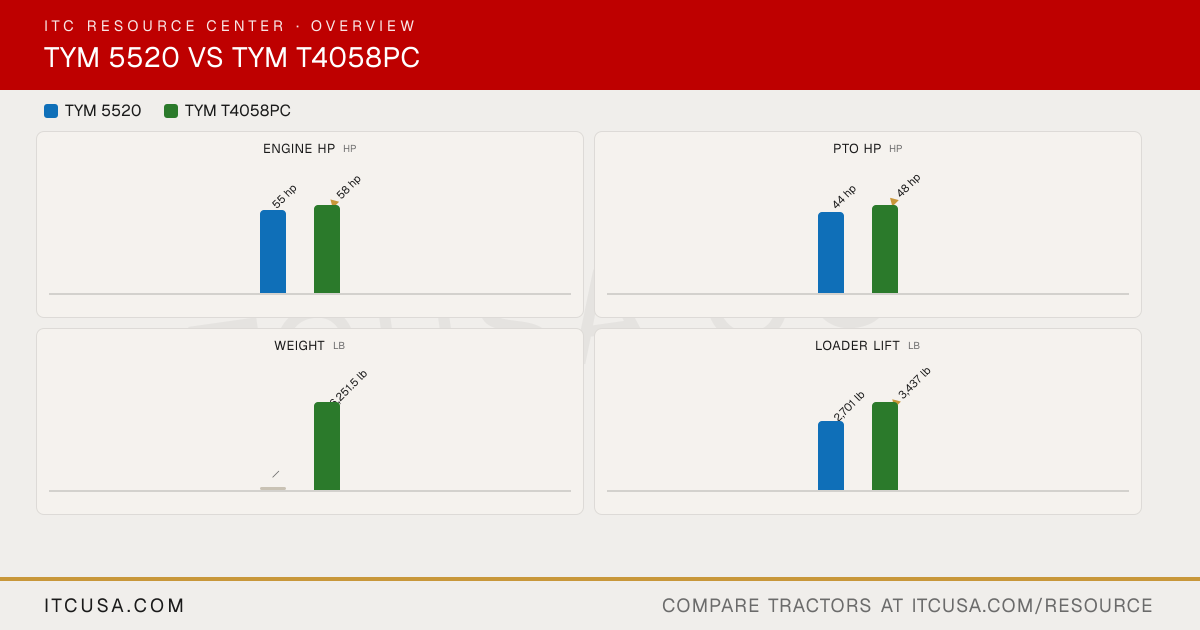

The headline numbers at a glance.

TYM 5520TYM T4058PC

Engine HPhp

55 hp

▲58 hp

PTO HPhp

44 hp

▲48 hp

Weightlb

—

6,251.5 lb

Loader Liftlb

2,701 lb

▲3,437 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM5520	TYMT4058PC


PTO Power	44 hp	48 hp
Alternator	50 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Dry element
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
Fuel System	IDI	IDI
Displacement	139.5 in³	139.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	TYM
Engine Power (Gross)	55 hp	58 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with Cab and Loader	Not Applicable	6,251.5 lb
Weight with ROPS and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Single gear pump
Steering Flow	5.2 gpm	5.13 gpm
Implement Flow	11.4 gpm	11.4 gpm
Total Hydraulic Flow	16.5 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.5 gpm	16.5 gpm
No. of Optional Remote Valves	Up to 4	Not Published
No. of Standard Remote Valves	0	Loader: 6; Rear: 6

PTO Rear	540/750 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306 lb	4,409 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category II
Hitch Lift Capacity (at 24”)	2,425 lb	3,748 lb

R3 Turf - Rear	41x14-20 / 44x18-20	44x18.00-20
R3 Turf - Front	27x8.5-15 / 29x12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5Lx24	16.9-24
R4 Industrial - Front	12-16.5	10.5/80-18
R1 Agricultural - Rear	13.6-26	14.9-28
R1 Agricultural - Front	9.5-16	9.5-20

Coolant Capacity	6.2 qt	6.2 qt
Crankcase Capacity	4.8 qt	4.8 qt
Fuel Tank Capacity	11.8 gal	15.3 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
Transmission / Hydraulic System Capacity	HST: 11.1 gal; Gear: 10.3 gal	11.62 gal

Loader Lift Height	106.6 in	117.5 in
Loader Breakout Force	3,660 lb	4,742 lb
Quick Attach Loader System	BL200: Quick attach assembly (lever-lock)	L4058PC: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,701 lb	3,437 lb

Clutch	Dry single type (N/A)	Wet, multi-disc
No. of Speeds	HST: 4-Range; Gear: F16 x R16 (4-Range)	F12 x R12
Transmission Type	HST: Hydrostatic (HST); Gear: Synchromesh	Power shuttle
Max Travel Speed (Forward)	HST: 19.5 mph; Gear: 16 mph	24.04 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock system	Not Published

Brakes	Wet, multi disc	Wet, multi-disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension seat	Suspension seat

Wheelbase	71.1 in	78.7 in
Overall Width	64.9 in	68.9 in
Ground Clearance	15.5 in	18.1 in
Height to Top of ROPS	98.4 in	Not Applicable
Height to Top of Cab Model	Not Applicable	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	L: 139.7 in; R: 141.9 in
Overall Length with 3-Point Hitch	127.4 in	141.5 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00	None tagged yet

TYM 5520 vs TYM T4058PC: Quick Answers

Which has more horsepower, the TYM 5520 or the TYM T4058PC?: The TYM T4058PC leads on engine hp at 58 hp hp, compared to 55 hp hp for the TYM 5520.
Which has more PTO horsepower, the TYM 5520 or the TYM T4058PC?: The TYM T4058PC leads on pto hp at 48 hp hp, compared to 44 hp hp for the TYM 5520.
Which has more loader lift capacity, the TYM 5520 or the TYM T4058PC?: The TYM T4058PC leads on loader lift at 3,437 lb lb, compared to 2,701 lb lb for the TYM 5520.
Which has more three-point hitch lift capacity, the TYM 5520 or the TYM T4058PC?: The TYM T4058PC leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the TYM 5520.
