Which has more horsepower, the TYM T454 or the TYM T474?

The TYM T474 leads on engine hp at 48.3 hp hp, compared to 46.6 hp hp for the TYM T454.

Which has more PTO horsepower, the TYM T454 or the TYM T474?

The TYM T454 leads on pto hp at 37.3 hp hp, compared to 35.9 hp hp for the TYM T474.

Which has more three-point hitch lift capacity, the TYM T454 or the TYM T474?

The TYM T454 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 1,764 lb lb for the TYM T474.

TYM T454 vs TYM T474

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the TYM T454 leads 4 categories to 1. Machine pages: TYM T454 and TYM T474.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T454	TYM T474
Engine HP (hp)	46.6 hp	▲ 48.3 hp
PTO HP (hp)	▲ 37.3 hp	35.9 hp
Weight (lb)	—	4,310 lb
Loader Lift (lb)	—	2,152 lb
3-Pt Lift (24 in) (lb)	▲ 2,945 lb	1,764 lb
Lift Height (in)	—	105.6 in
Breakout Force (lbf)	—	3,198 lbf
Hydraulic Flow (gpm)	▲ 14.1 gpm	11.9 gpm
Travel Speed (mph)	▲ 18.4 mph	14.9 mph

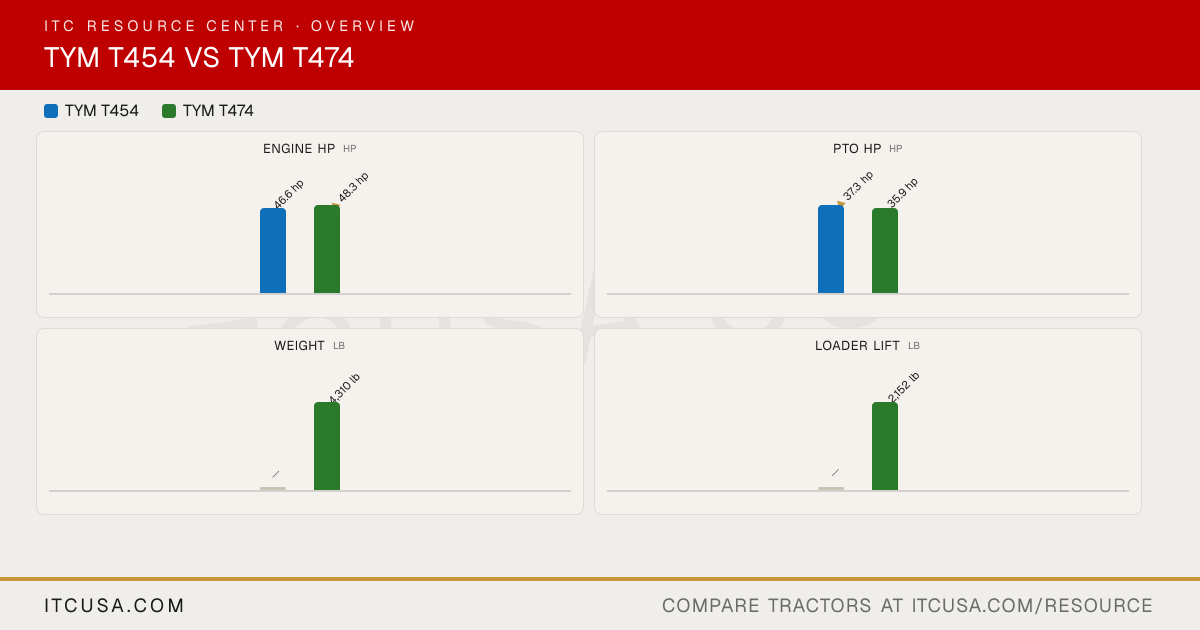

The headline numbers at a glance.

TYM T454TYM T474

Engine HPhp

46.6 hp

▲48.3 hp

PTO HPhp

▲37.3 hp

35.9 hp

Weightlb

—

4,310 lb

Loader Liftlb

—

2,152 lb

3-Pt Lift (24 in)lb

▲2,945 lb

1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT454	TYMT474


PTO Power	37.3 hp	35.9 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dual dry	Single dry
Engine Type	4-cylinder, naturally aspirated diesel	4-cylinder, naturally aspirated diesel
Fuel System	CRDI	IDI
Displacement	133.6 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2800 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Yanmar	TYM
Engine Power (Gross)	46.6 hp	48.3 hp
Engine Emissions Constraints	Not Published	Stage V

Weight with ROPS and Loader	Not Published	4,310 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	4.6 gpm	4.2 gpm
Implement Flow	9.5 gpm	7.7 gpm
Total Hydraulic Flow	14.1 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position/Draft	Position control
Hitch Lift Capacity	3,314 lb	2,689.6 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,945 lb	1,764 lb

R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	12.5x20
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.5-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Xtra Grip 17.5-24 NHS TL 6PR	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 12.4-24 NHS TL 6PR
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 8.0-16 NHS TL 6PR

Coolant Capacity	9 qt	6.9 qt
Crankcase Capacity	7.4 qt	6.8 qt
Fuel Tank Capacity	17.0 gal	9.0 gal
Front Axle Fluid Capacity	10.5 qt	8.7 qt
Transmission / Hydraulic System Capacity	9.2 gal	8.5 gal

Loader Lift Height	Not Published	105.6 in
Loader Breakout Force	Not Published	3,198 lb
Quick Attach Loader System	TX55: Quick attachment assembly	TX47: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	Not Published	2,152 lb

Clutch	Dry single plate	Dry single plate
No. of Speeds	F16 x R16	F12 x R12
Transmission Type	Synchro-shuttle	Mechanical
Max Travel Speed (Forward)	18.4 mph	14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	76.2 in	69.7 in
Overall Width	63.8 in	54.5 in
Ground Clearance	13.8 in	12.8 in
Height to Top of ROPS	102.1 in	94.5 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	150.4 in	117.5 in
Overall Length with 3-Point Hitch	141.3 in	131 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99	TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush. TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Skid Plate $399.99 Major underside protection to save linkages, lines, valves, and filters.

TYM T454 vs TYM T474: Quick Answers

Which has more horsepower, the TYM T454 or the TYM T474?: The TYM T474 leads on engine hp at 48.3 hp hp, compared to 46.6 hp hp for the TYM T454.
Which has more PTO horsepower, the TYM T454 or the TYM T474?: The TYM T454 leads on pto hp at 37.3 hp hp, compared to 35.9 hp hp for the TYM T474.
Which has more three-point hitch lift capacity, the TYM T454 or the TYM T474?: The TYM T454 leads on 3-pt lift (24 in) at 2,945 lb lb, compared to 1,764 lb lb for the TYM T474.
