Across 8 measurable specs, the John Deere 1E 23 leads 6 categories to 1 (1 tied). Machine pages: Bad Boy Tractors 1022 and John Deere 1E 23 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 John Deere 1E 23 Engine HP (hp) 21.5 hp 21.5 hp PTO HP (hp) 15.4 hp ▲ 16.2 hpWeight (lb) 1,433 lb ▲ 1,475 lbLoader Lift (lb) 617 lb ▲ 704 lb3-Pt Lift (24 in) (lb) 679 lb ▲ 758 lbLift Height (in) ▲ 78.5 in72 in Breakout Force (lbf) 1,253 lbf ▲ 1,823 lbfHydraulic Flow (gpm) 6.3 gpm ▲ 7 gpmTravel Speed (mph) 7.8 mph n/a

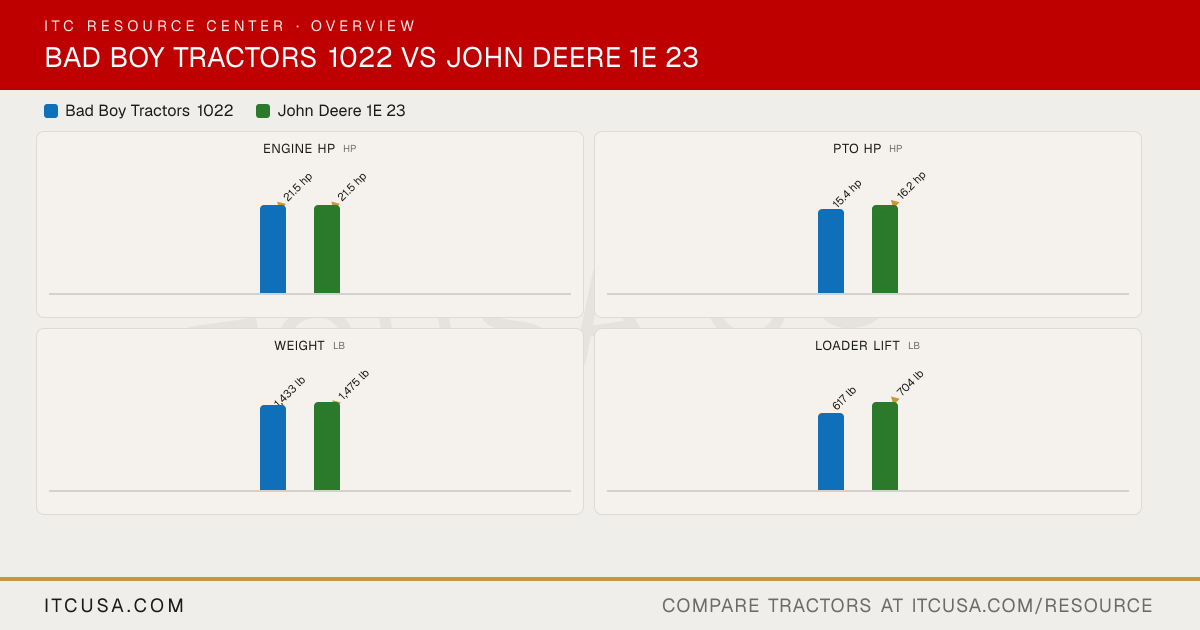

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 1022 John Deere 1E 23
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 John Deere 1E 23
▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNM74F 3TNM74F Engine Type 3 cylinder, water-cooled diesel, natural aspiration Diesel No. of Cylinders 3 3 Displacement 60.6 in³ 60.6 in³ Rated Engine Speed 3200 rpm Not Published Engine Power (Gross) 21.5 hp 21.5 hp PTO Power 15.4 hp 16.2 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Single dry element Not Published Fuel System Indirect injection Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Single gear pump with flow divider Not Published Implement Flow 4.17 gpm 3.5 gpm Steering Flow 2.11 gpm 3.5 gpm Total Hydraulic Flow 6.3 gpm 7 gpm Overall Hydraulic Pump Flow 6.97 gpm 7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 5.75 gal Coolant Capacity 3.7 qt Not Published Crankcase Capacity 2.1 qt Not Published Transmission / Hydraulic System Capacity 3.6 gal Not Published Front Axle Fluid Capacity 2.6 qt Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2,500 rpm 2100 rpm Category, 3-Point Hitch Category 1 (limited) Limited Category 1 Hitch Lift Capacity 1,100 lb Not Published Hitch Lift Capacity (at 24”) 679 lb 758 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Hydrostatic No. of Speeds 2 range Infinite, forward and reverse Max Travel Speed (Forward) 7.8 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Sub-compact tractor, 4WD Two-post folding ROPS Steering Hydrostatic power steering Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Standard adjustable seat Not Published Front Axle Type Selectable 4WD Four-wheel drive Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 94.2 in Not Published Overall Width 44.5 in 47.3 in Wheelbase 53.1 in 57.1 in Ground Clearance 8.3 in Not Published Min. Turn Radius without Brakes 86.6 in Not Published Height to Top of ROPS 86.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,433 lb 1475 lb (shipping weight, not a bare ROPS weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Not Published R1 Agricultural - Front 16x7.50-9 Not Published R1 Agricultural - Rear 24x12.00-12 Not Published R3 Turf - Front 18x8.5-10 18x8.50-10 R3 Turf - Rear 26x12.00-12 26x12-12 R4 Industrial - Front 18x8.5-10 18x8.5-10 R4 Industrial - Rear 26x12.00-12 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader 120R Loader Loader Model BBL100 120R Loader Lift Height 78.5 in 72 in Loader Lift Capacity (Full Height) 617 lb 704 lb (at pivot pin, full height) Loader Breakout Force 1,253 lbf 1823 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours Not Published
Bad Boy Tractors 1022 vs John Deere 1E 23: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the John Deere 1E 23? They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the John Deere 1E 23? The John Deere 1E 23 leads on pto hp at 16.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the John Deere 1E 23? The John Deere 1E 23 leads on weight at 1,475 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the John Deere 1E 23? The John Deere 1E 23 leads on loader lift at 704 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the John Deere 1E 23? The John Deere 1E 23 leads on 3-pt lift (24 in) at 758 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
