Across 6 measurable specs, the Kioti CS2610 leads 5 categories to 1. Machine pages: Bad Boy Tractors 1022 and Kioti CS2610 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 Kioti CS2610 Engine HP (hp) 21.5 hp ▲ 26 hpPTO HP (hp) 15.4 hp n/a Weight (lb) 1,433 lb n/a Loader Lift (lb) 617 lb ▲ 675.3 lb3-Pt Lift (24 in) (lb) 679 lb n/a Lift Height (in) ▲ 78.5 in71.3 in Breakout Force (lbf) 1,253 lbf ▲ 1,332 lbfHydraulic Flow (gpm) 6.3 gpm ▲ 6.5 gpmTravel Speed (mph) 7.8 mph ▲ 10.3 mph

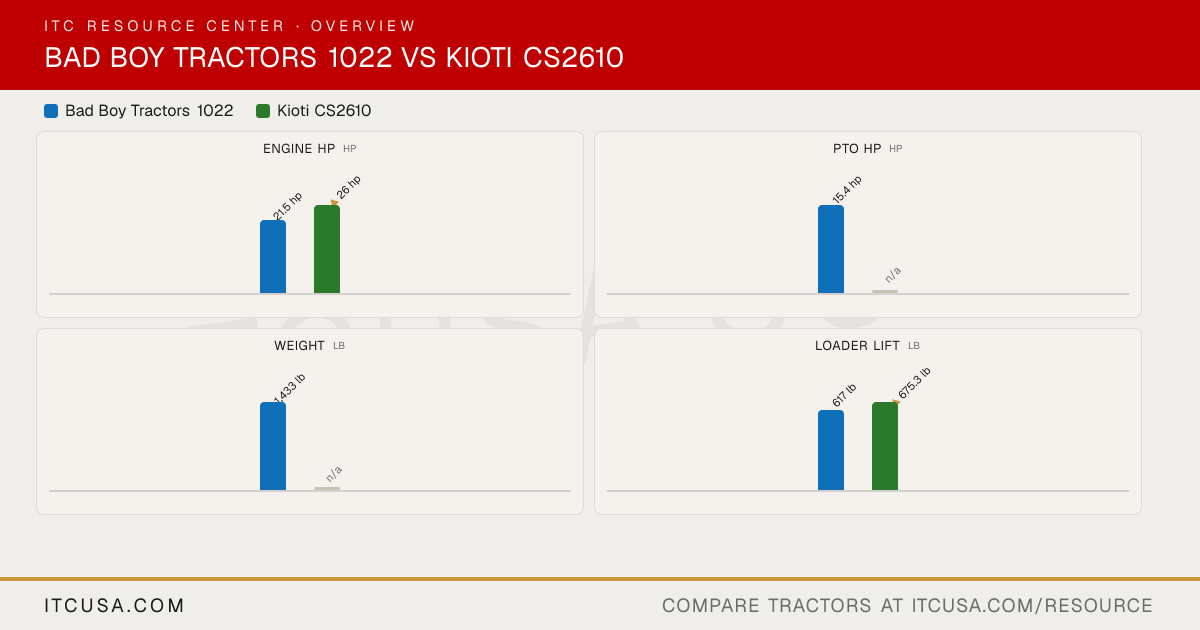

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 1022 Kioti CS2610
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 Kioti CS2610
▶ EngineEngine Manufacturer Yanmar Shibaura Engine Model 3TNM74F S773L Engine Type 3 cylinder, water-cooled diesel, natural aspiration 3-cylinder diesel with pressurized radiator No. of Cylinders 3 3 Displacement 60.6 in³ 69.0 in³ Rated Engine Speed 3200 rpm 3000 rpm Engine Power (Gross) 21.5 hp 26 hp PTO Power 15.4 hp Not Published Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Single dry element Not Published Fuel System Indirect injection Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Single gear pump with flow divider Gear Implement Flow 4.17 gpm Not Published Steering Flow 2.11 gpm Not Published Total Hydraulic Flow 6.3 gpm 6.5 gpm Overall Hydraulic Pump Flow 6.97 gpm 6.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 6.7 gal Coolant Capacity 3.7 qt Not Published Crankcase Capacity 2.1 qt Not Published Transmission / Hydraulic System Capacity 3.6 gal Not Published Front Axle Fluid Capacity 2.6 qt Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2,500 rpm Standard (2,200 rpm) Category, 3-Point Hitch Category I (limited) Category I Hitch Lift Capacity 1,100 lb Not Published Hitch Lift Capacity (at 24”) 679 lb Not Published Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Hydrostatic (HST) No. of Speeds 2 range Infinite, 2 range Max Travel Speed (Forward) 7.8 mph 10.3 mph Max Travel Speed (Reverse) Not Published 7.0 mph Clutch Dry single plate Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Rear differential lock (mechanical) ▶ Chassis, Steering & ControlsFrame Type Sub-compact tractor, 4WD Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Standard adjustable seat Not Published Front Axle Type Selectable 4WD 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 94.2 in 98.1 in Overall Width 44.5 in Not Published Wheelbase 53.1 in 55.1 in Ground Clearance 8.3 in 6.4 in Min. Turn Radius without Brakes 86.6 in Not Published Height to Top of ROPS 86.6 in 88 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,433 lb Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear R1 Agricultural - Front 16x7.50-9 Not Published R1 Agricultural - Rear 24x12.00-12 Not Published R3 Turf - Front 18x8.5-10 18x8.5-10 R3 Turf - Rear 26x12.00-12 26x12.00-12 R4 Industrial - Front 18x8.5-10 18x8.5-10 R4 Industrial - Rear 26x12.00-12 26x12.00-12 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader Quick attach (QA) bucket, 48 in Loader Model BBL100 SL2410 Loader Lift Height 78.5 in SL2410: 71.3 in Loader Lift Capacity (Full Height) 617 lb SL2410: 675.3 lb Loader Breakout Force 1,253 lbf SL2410: 1,332 lb ▶ WarrantyWarranty Length & Coverage Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours Not Published
Bad Boy Tractors 1022 vs Kioti CS2610: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Kioti CS2610? The Kioti CS2610 leads on engine hp at 26 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kioti CS2610? The Kioti CS2610 leads on loader lift at 675.3 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
