Bad Boy Tractors 1022 vs Kubota BX2680

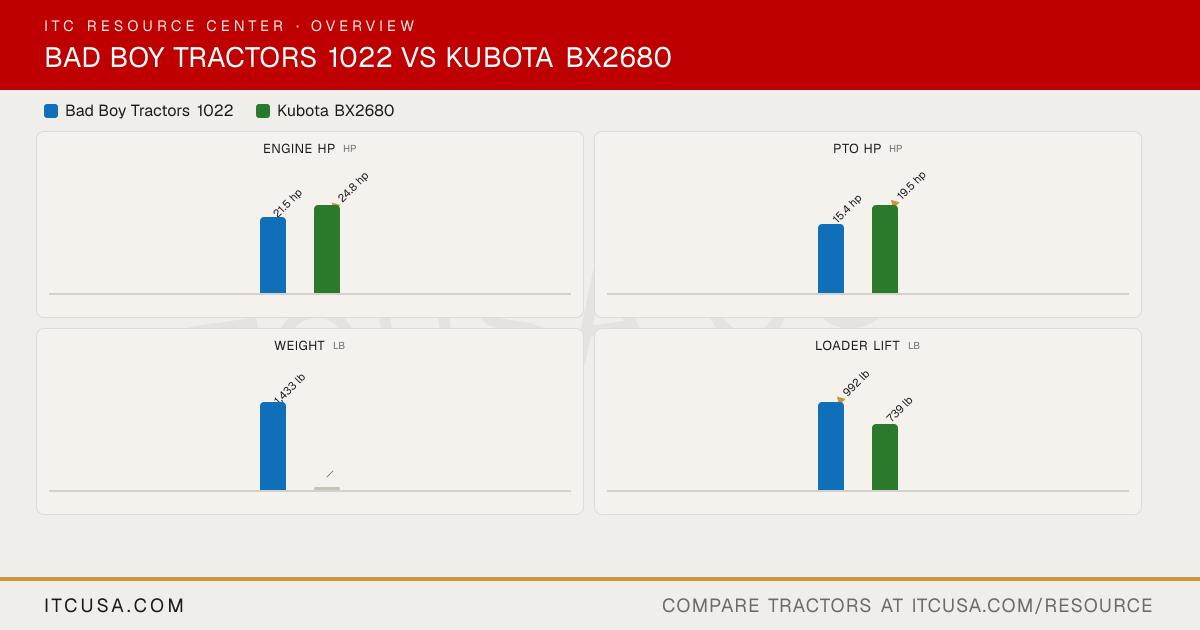

Across 9 measurable specs, the Kubota BX2680 leads 7 categories to 2. Machine pages: Bad Boy Tractors 1022 and Kubota BX2680.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KubotaBX2680

▶Engine
Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNM74F	D1005
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Liquid-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	60.6 in³	61.1 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	21.5 hp	23.3 hp
PTO Power	15.4 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water with pressurized radiator, reverse air-flow design
Air Cleaner	Single dry element	Dry element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Open center tandem pump gear type
Implement Flow	4.17 gpm	5.2 gpm
Steering Flow	2.11 gpm	1.0 gpm
Total Hydraulic Flow	6.3 gpm	6.2 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None (2-valve rear remote coupler optional)
No. of Optional Remote Valves	1	2 (optional; ISO 7241-1 series A or B)
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	3.5 qt
Crankcase Capacity	2.1 qt	4.2 qt
Transmission / Hydraulic System Capacity	3.6 gal	3.0 gal
Front Axle Fluid Capacity	2.6 qt	3.8 qt
▶PTO & Hitch
PTO Type	Independent	Live independent PTO (with hydraulic clutch)
PTO Rear	540 rpm	STD (540 rpm)
Mid-PTO Availability	Optional, 2,500 rpm	STD (2500 rpm)
Category, 3-Point Hitch	Category I (limited)	SAE Category I
Hitch Lift Capacity	1,100 lb	1,213 lb
Hitch Lift Capacity (at 24”)	679 lb	680 lb
Lift Control Type	Position control	Quarter-inching valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	2 range	2 Range (Low-High)
Max Travel Speed (Forward)	7.8 mph	8.4 mph
Max Travel Speed (Reverse)	Not Published	6.5 mph
Clutch	Dry single plate	None (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor	Two-post foldable ROPS
Steering	Hydrostatic power steering	Hydrostatic type power steering
Brakes	Wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	High-back seat with armrests; fore/aft slide and backrest-tilt adjustment
Front Axle Type	Selectable 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Max. drawbar load @ hitch: 550 lb
▶Dimensions & Maneuverability
Overall Width	44.5 in	45.1 in
Wheelbase	53.1 in	55.1 in
Ground Clearance	8.3 in	6.5 in
Min. Turn Radius without Brakes	86.6 in	7.5 ft
Height to Top of ROPS	86.6 in	83.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	95.5 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,433 lb	1,521 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	16x7.50-9	18X8.5-10
R1 Agricultural - Rear	24x12.00-12	26X12-12
R3 Turf - Front	16x7.50-8	18X8.5-10
R3 Turf - Rear	26x12.00-12	26X12-12
R4 Industrial - Front	18x8.5-10	18X8.5-10
R4 Industrial - Rear	26x12-12	26X12-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Model	BBL100	LA344S (standard, quick attach); LA344 (pin-on option)
Loader Lift Height	78.5 in (at pivot pin)	71.0 in (at pivot pin)
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	739 lb (LA344 pin-on); 613 lb (LA344S quick attach)
Loader Breakout Force	1,253 lbf	1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 1022 vs Kubota BX2680: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota BX2680?

The Kubota BX2680 leads on engine hp at 23.3 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota BX2680?

The Kubota BX2680 leads on pto hp at 19.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Kubota BX2680?

The Kubota BX2680 leads on weight at 1,521 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota BX2680?

The Kubota BX2680 leads on loader lift at 739 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota BX2680?

The Kubota BX2680 leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
