Bad Boy Tractors 1022 vs Kubota LX3310HSDC

Across 9 measurable specs, the Kubota LX3310HSDC leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and Kubota LX3310HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KubotaLX3310HSDC

▶Engine
Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNM74F	V1505-CR-TE5-D36Q1
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	E-CDIS, liquid cooled, 4-cylinder, diesel
No. of Cylinders	3	4
Displacement	60.6 in³	91.5 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	30.8 hp
PTO Power	15.4 hp	27 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Single dry element	6.0 in Dual paper element
Fuel System	Indirect injection	Common Rail System (CRS)
Alternator	40 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Dual pump
Implement Flow	4.17 gpm	5.0 gpm
Steering Flow	2.11 gpm	3.7 gpm
Total Hydraulic Flow	6.3 gpm	8.7 gpm
Overall Hydraulic Pump Flow	6.97 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	1	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	8.4 gal
Coolant Capacity	3.7 qt	4.5 qt
Crankcase Capacity	2.1 qt	5.0 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.0 gal
Front Axle Fluid Capacity	2.6 qt	5.0 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2500 rpm
Category, 3-Point Hitch	Category 1 (limited)	Category I
Hitch Lift Capacity	1,100 lb	2139 lb
Hitch Lift Capacity (at 24”)	679 lb	1676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	2 range	3 ranges
Max Travel Speed (Forward)	7.8 mph	13.6 mph
Max Travel Speed (Reverse)	Not Published	10.3 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydraulic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Deluxe high-back suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	94.2 in	103.9 in (without 3-point hitch)
Overall Width	44.5 in	53.7 in
Wheelbase	53.1 in	65.6 in
Ground Clearance	8.3 in	14.6 in
Min. Turn Radius without Brakes	86.6 in	6.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in
▶Weight
Tractor Weight (Base)	1,433 lb	2557 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front	16x7.50-9	7.0-12
R1 Agricultural - Rear	24x12.00-12	12.4-16
R3 Turf - Front	18x8.5-10	24x8.50-14
R3 Turf - Rear	26x12.00-12	13.6-16
R4 Industrial - Front	18x8.5-10	23X8.50-14
R4 Industrial - Rear	26x12.00-12	12.4-16
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	BBL100	LA535
Loader Lift Height	78.5 in	84 in
Loader Lift Capacity (Full Height)	617 lb	1067 lb
Loader Breakout Force	1,253 lbf	2245 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

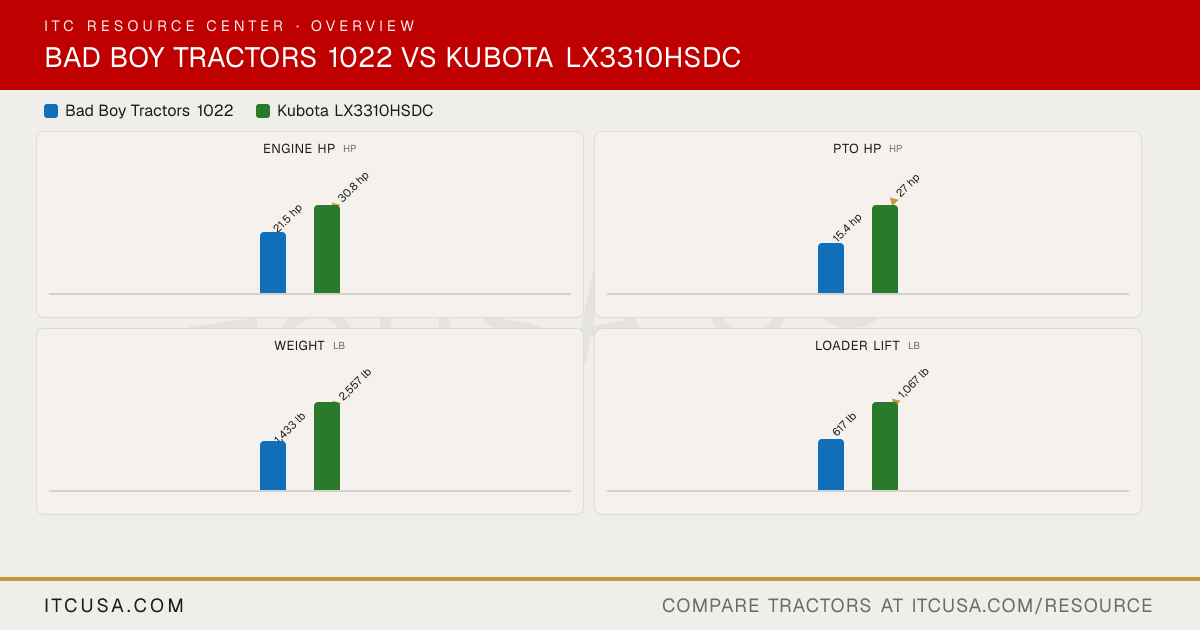

Bad Boy Tractors 1022 vs Kubota LX3310HSDC: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota LX3310HSDC?

The Kubota LX3310HSDC leads on engine hp at 30.8 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota LX3310HSDC?

The Kubota LX3310HSDC leads on pto hp at 27 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Kubota LX3310HSDC?

The Kubota LX3310HSDC leads on weight at 2,557 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota LX3310HSDC?

The Kubota LX3310HSDC leads on loader lift at 1,067 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota LX3310HSDC?

The Kubota LX3310HSDC leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
