Across 6 measurable specs, the Solis S24 leads 4 categories to 2. Machine pages: Bad Boy Tractors 1022 and Solis S24 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1022 Solis S24 Engine HP (hp) 21.5 hp ▲ 24 hpPTO HP (hp) 15.4 hp — Weight (lb) 1,433 lb — Loader Lift (lb) 992 lb ▲ 1,411 lb3-Pt Lift (24 in) (lb) 679 lb ▲ 1,323 lbLift Height (in) 72.7 in ▲ 85 inBreakout Force (lbf) ▲ 1,531 lbf1,146 lbf Hydraulic Flow (gpm) ▲ 7 gpm3.3 gpm Travel Speed (mph) 7.8 mph —

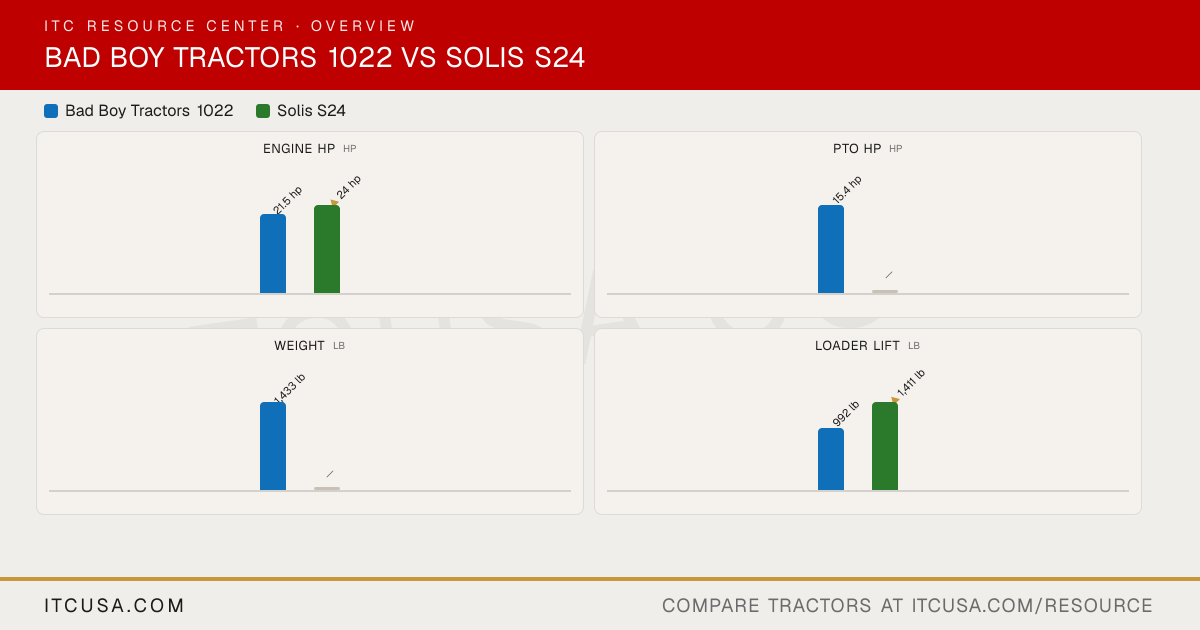

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 1022 Solis S24
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1022 Solis S24
▶ EnginePTO Power 15.4 hp Not Published Alternator 40 A, 12 V alternator Air Cleaner Single Dry Not Published Engine Type Natural Aspiration 3-Cylinder, Naturally Aspirated Diesel Fuel System Diesel Not Published Displacement 60.6 (993) 80.4 in³ No. of Cylinders 3 3 Rated Engine Speed 3,200 2500 Cooling System Type Water cooled Not Published Engine Manufacturer Yanmar Mitsubishi Engine Power (Gross) 21.5 hp 24 hp Engine Emissions Constraints Tier 4 Not Published Engine Model — Mitsubishi S3L2 ▶ WeightTractor Weight (Base) 1,433 (650) — Weight with ROPS and Loader 1,433 lb Not Published Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 7-year powertrain warranty 3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders) ▶ HydraulicsPump Type Single Gear Pump with Flow Divider Not Published Steering Flow 2.11 gpm Not Published Implement Flow 4.17 (15.8) 3.27 Total Hydraulic Flow 6.97 (26.4) 3.27 Hydraulic System Type Not Published open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm (max total flow) 3.27 gpm 12.4 lpm No. of Optional Remote Valves Up to 1 Not Published No. of Standard Remote Valves Not Published 1DA ▶ PTO & HitchPTO Rear 540 rpm 540 rpm @ 2491 engine rpm PTO Type Independent Mechanical Lift Control Type Position Not Published Hitch Lift Capacity 1,100 lb 1323 lbs 1,322.8 lb Mid-PTO Availability Optional (2,500 rpm) Not Published Category, 3-Point Hitch Category I (N) CAT-1N Hitch Lift Capacity (at 24”) 679 lb Not Published ▶ Tire OptionsR3 Turf - Rear TURF R 16X12.00-12 33x15.5-16.5; 13.6x16 R3 Turf - Front TURF F 16X7.50-8 23x8.50-12; 25x8.50-14 Tire Size & Options R1 (BAR) / R3 (TURF) / R4 (IND) Industrial: 23x8.50-12 & 33x15.5-16.5; Turf: 23x8.50-12 & 33x15.5-16.5; Agri: 6x12 & 8.3x20; Agri: 7x14 & 8.3x24; Radial: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55R12 & 280/70R16; R14: 23x8.50-12 R14T & 12~16.5 R14T R4 Industrial - Rear 26X12-12 33x15.5-16.5 R4 Industrial - Front 18X8.50-10 23x8.50-12 R1 Agricultural - Rear BAR R 24X12.00-12 8.3x20; 8.3x24; 280/70 R18 R1 Agricultural - Front BAR F 16X7.50-9 6x12; 7x14; 6.5/80-12 ▶ Fluid CapacityCoolant Capacity 0.9 gal Not Published Crankcase Capacity 0.48 gal Not Published Fuel Tank Capacity 6.6 gal 7 gal Front Axle Fluid Capacity 2.6 qt Not Published Transmission / Hydraulic System Capacity 3.6 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 72.7 in (under level bucket); 78.5 in (pivot pin) 85 in Loader Breakout Force 1,531 lb (at pivot pin, ground level) 1,146 lb Quick Attach Loader System SSQA SB24 (MSL) Loader Lift Capacity (Full Height) 992 lb (at pivot pin) 1,411 lb ▶ Transmission & DrivetrainClutch Dry single plate Single No. of Speeds 2 Range 6F+2R Transmission Type Hydrostatic transmission (HST) Mechanical (Gear) Max Travel Speed (Forward) 7.8 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock: Standard ▶ Chassis, Steering & ControlsBrakes Wet disc Oil immersed brakes; mechanical foot operated Steering Hydrostatic Power steering Frame Type Sub-compact tractor, 4WD Four-wheel drive Front Axle Type Center pin front axle 4WD Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Standard adjustable seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 53.1 (1,350) 61.4 inches 61 in Overall Width 44.5 (1,130) 42.32 Overall Length 94.2 (2,394) — Ground Clearance 8.3 in. 9.44 in Height to Top of ROPS 86.6 (2,200) 84.34 Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 86.6 (2,200) Not Published Overall Length with 3-Point Hitch 94.2 in 108.66
Bad Boy Tractors 1022 vs Solis S24: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Solis S24? The Solis S24 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Solis S24? The Solis S24 leads on loader lift at 1,411 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Solis S24? The Solis S24 leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022. More Head-to-Heads
