Bad Boy Tractors 1022 vs TYM 1905

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 1022 leads 5 categories to 0 (4 tied). Machine pages: Bad Boy Tractors 1022 and TYM 1905.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	TYM 1905
Engine HP (hp)	▲ 21.5 hp	19 hp
PTO HP (hp)	▲ 15.4 hp	13.4 hp
Weight (lb)	1,433 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	679 lb
Lift Height (in)	▲ 78.5 in	71.3 in
Breakout Force (lbf)	▲ 1,253 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 6.3 gpm	6.3 gpm
Travel Speed (mph)	7.8 mph	7.8 mph

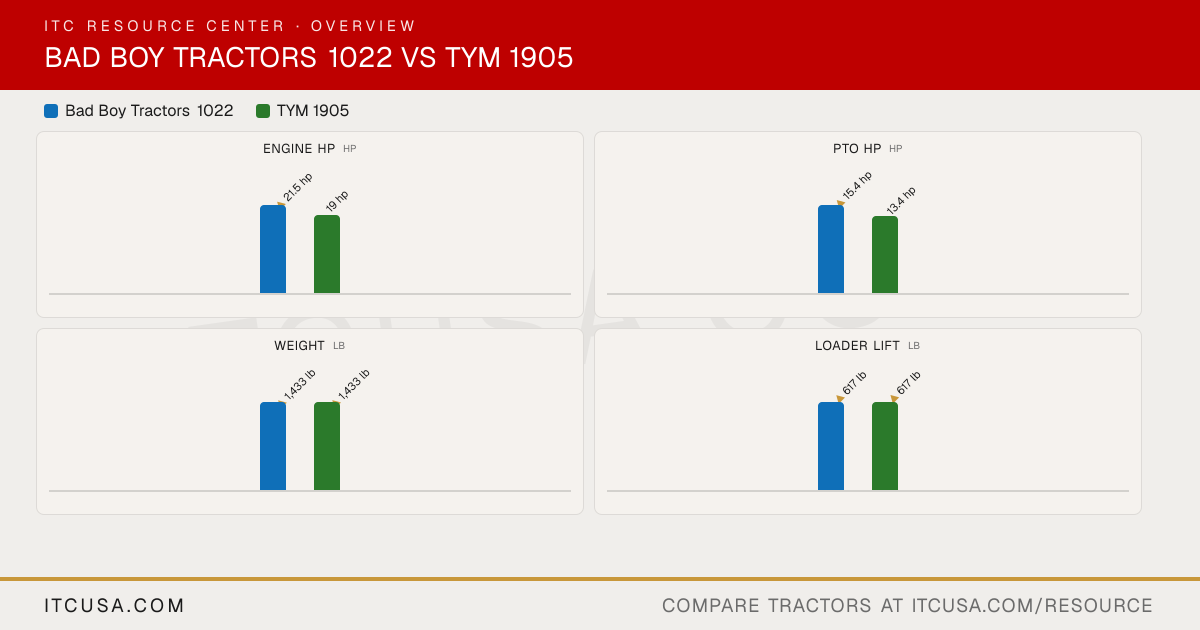

The headline numbers at a glance.

Bad Boy Tractors 1022TYM 1905

Engine HPhp

▲21.5 hp

19 hp

PTO HPhp

▲15.4 hp

13.4 hp

Weightlb

▲1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYM1905


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNV74F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	21.5 hp	19 hp
PTO Power	15.4 hp	13.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dry, single filter element
Fuel System	Indirect injection	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Single gear pump with flow divider	Single gear pump with flow divider
Implement Flow	4.17 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.3 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.97 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	3.7 qt
Crankcase Capacity	2.1 qt	2.1 qt
Transmission / Hydraulic System Capacity	3.6 gal	3.6 gal
Front Axle Fluid Capacity	2.6 qt	2.6 qt

PTO Type	Independent	Transmission-driven (over-running clutch)
PTO Rear	540 rpm	Not Published
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	679 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	2 range	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	7.8 mph
Clutch	Dry single plate	Dry, single
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	60 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Turf: 18x8.5-10 front / 26x12-12 rear; Industrial: 18x8.5-10 front / 26x12-12 rear
R1 Agricultural - Front	16x7.50-9	16x7.50-9
R1 Agricultural - Rear	24x12.00-12	24x12.00-12
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12.00-12	26x12-12

Quick Attach Loader System	Quick attach front loader	BL90: Standard pin-on (skid steer quick-attach optional)
Loader Model	BBL100	BL90
Loader Lift Height	78.5 in	BL90: 71.3 in
Loader Lift Capacity (Full Height)	617 lb	BL90: 617 lb
Loader Breakout Force	1,253 lbf	BL90: 1,235 lbf

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	2 years or 1,000 hours bumper-to-bumper; 7 years or 2,000 hours powertrain and engine (whichever comes first)

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM 1905: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 1905?: The Bad Boy Tractors 1022 leads on engine hp at 21.5 hp hp, compared to 19 hp hp for the TYM 1905.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 1905?: The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 13.4 hp hp for the TYM 1905.
Which is heavier, the Bad Boy Tractors 1022 or the TYM 1905?: They are effectively tied: both machines are rated at 1,433 lb lb for weight.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 1905?: They are effectively tied: both machines are rated at 617 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 1905?: They are effectively tied: both machines are rated at 679 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	TYM 1905
Engine HP (hp)	▲ 21.5 hp	19 hp
PTO HP (hp)	▲ 15.4 hp	13.4 hp
Weight (lb)	1,433 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	679 lb
Lift Height (in)	▲ 78.5 in	71.3 in
Breakout Force (lbf)	▲ 1,253 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 6.3 gpm	6.3 gpm
Travel Speed (mph)	7.8 mph	7.8 mph

The headline numbers at a glance.

Bad Boy Tractors 1022TYM 1905

Engine HPhp

▲21.5 hp

19 hp

PTO HPhp

▲15.4 hp

13.4 hp

Weightlb

▲1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYM1905


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNV74F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	21.5 hp	19 hp
PTO Power	15.4 hp	13.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dry, single filter element
Fuel System	Indirect injection	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Single gear pump with flow divider	Single gear pump with flow divider
Implement Flow	4.17 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.3 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.97 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	3.7 qt
Crankcase Capacity	2.1 qt	2.1 qt
Transmission / Hydraulic System Capacity	3.6 gal	3.6 gal
Front Axle Fluid Capacity	2.6 qt	2.6 qt

PTO Type	Independent	Transmission-driven (over-running clutch)
PTO Rear	540 rpm	Not Published
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	679 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	2 range	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	7.8 mph
Clutch	Dry single plate	Dry, single
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	60 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Turf: 18x8.5-10 front / 26x12-12 rear; Industrial: 18x8.5-10 front / 26x12-12 rear
R1 Agricultural - Front	16x7.50-9	16x7.50-9
R1 Agricultural - Rear	24x12.00-12	24x12.00-12
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12.00-12	26x12-12

Quick Attach Loader System	Quick attach front loader	BL90: Standard pin-on (skid steer quick-attach optional)
Loader Model	BBL100	BL90
Loader Lift Height	78.5 in	BL90: 71.3 in
Loader Lift Capacity (Full Height)	617 lb	BL90: 617 lb
Loader Breakout Force	1,253 lbf	BL90: 1,235 lbf

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	2 years or 1,000 hours bumper-to-bumper; 7 years or 2,000 hours powertrain and engine (whichever comes first)

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM 1905: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 1905?

The Bad Boy Tractors 1022 leads on engine hp at 21.5 hp hp, compared to 19 hp hp for the TYM 1905.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 1905?

The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 13.4 hp hp for the TYM 1905.

Which is heavier, the Bad Boy Tractors 1022 or the TYM 1905?

They are effectively tied: both machines are rated at 1,433 lb lb for weight.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 1905?

They are effectively tied: both machines are rated at 617 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 1905?

They are effectively tied: both machines are rated at 679 lb lb for 3-pt lift (24 in).
