Bad Boy Tractors 3026 vs Massey Ferguson 1220

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 6 categories to 2. Machine pages: Bad Boy Tractors 3026 and Massey Ferguson 1220.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Massey Ferguson1220

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1100N2	E3112
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder liquid-cooled inline indirect-injection diesel
No. of Cylinders	3	3
Displacement	70.7 in³	68.5 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	24 hp	21 hp
PTO Power	18 hp	Gear: 17.5 hp; Hydro: 16 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	Indirect injection, glow plug pre-heating
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	5.2 gpm
Steering Flow	3.1 gpm	2.5 gpm
Total Hydraulic Flow	7.4 gpm	7.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	4.75 gal
Coolant Capacity	1.21 gal	5.4 qt
Crankcase Capacity	0.79 gal	3.3 qt
Transmission / Hydraulic System Capacity	2.90 gal	2.64 gal
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Live, two-stage dry disc clutch
PTO Rear	540 / 960 rpm	540 rpm (1.375 in) at 2327 engine rpm
Mid-PTO Availability	Optional, 2,500 rpm	Live, 2000 rpm at 2500 engine rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,210 lb
Hitch Lift Capacity (at 24”)	974 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	6-speed gear, hydrostatic, or 9-speed gear with optional creeper range
No. of Speeds	3 range (L/M/H)	Gear: 6F / 2R (9F / 3R with creeper); hydrostatic: infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	8.5 in dry disc (gear)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Two-post folding ROPS
Steering	Hydrostatic power steering	2WD: power steering standard; 4WD: manual, power assist optional
Brakes	Wet disc	Mechanical wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	2WD or 4WD; spur gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	108.3 in
Overall Width	53.9 in	42.2 in
Wheelbase	65.7 in	59.4 in
Ground Clearance	16.4 in	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	77 in
Height to Top of ROPS (folded)	Not Published	60.5 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,477 lb (2WD gear); 1,500 lb (2WD hydro); 1,654 lb (4WD gear); 1,676 lb (4WD hydro)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Ag: 5.00-12 front (2WD) or 6-12 front (4WD), 9.5-16 rear; turf: 24x8.50-12 front, 315x75D-15 rear
R1 Agricultural - Front	7-16 6PR	5.00-12 (2WD); 6-12 (4WD)
R1 Agricultural - Rear	11.2-20	9.5-16
R3 Turf - Front	Not Published	24x8.50-12
R3 Turf - Rear	Not Published	315x75D-15
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14-17.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	1242
Loader Lift Height	87.5 in	1242: 73.5 in
Loader Lift Capacity (Full Height)	1,314 lb	1242: 565 lb
Loader Breakout Force	1,960 lbf	1242: 955 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Massey Ferguson 1220: Quick Answers

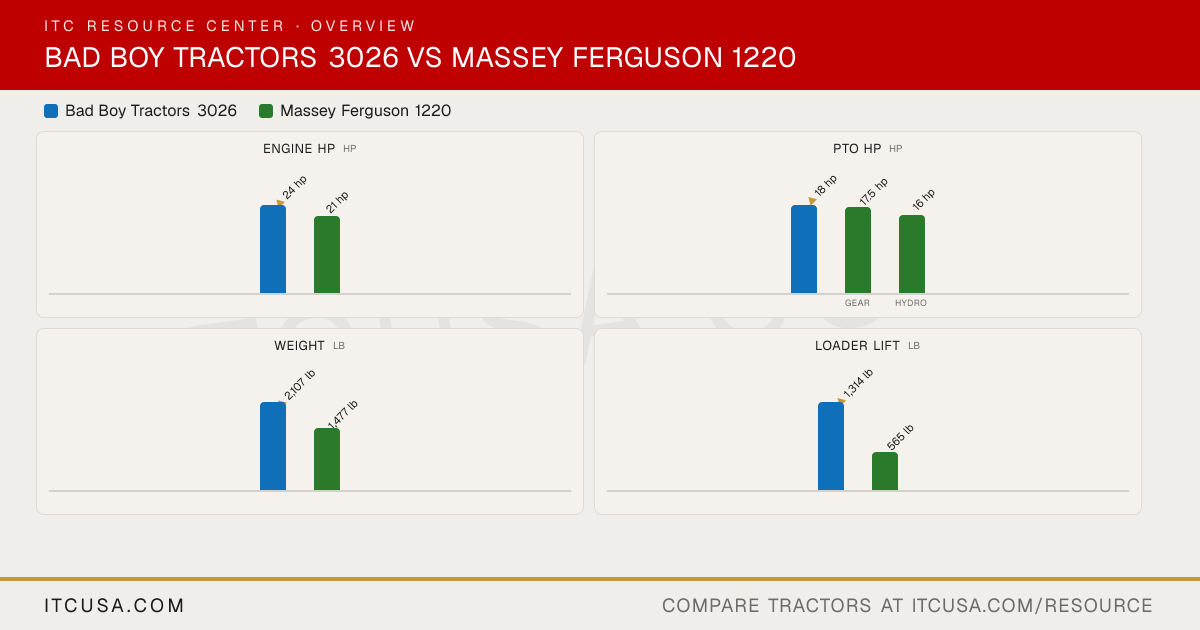

Which has more horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson 1220?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21 hp hp for the Massey Ferguson 1220.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Massey Ferguson 1220?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.5 hp hp for the Massey Ferguson 1220.

Which is heavier, the Bad Boy Tractors 3026 or the Massey Ferguson 1220?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,477 lb lb for the Massey Ferguson 1220.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson 1220?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 565 lb lb for the Massey Ferguson 1220.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Massey Ferguson 1220?

The Massey Ferguson 1220 leads on 3-pt lift (24 in) at 1,210 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
